1050 Aluminum Coil with Good Formability
specification
| Product Name | 1050 Aluminum Coil |
| Material | 1050,1060,3003, 3A21,5052.5005.5083.5A05,6061 |
| Technical Standard | JIS G3141,DIN1623,EN10130 |
| Sheet | 0.15 mm- 2.0mm |
| Normal sheet | 2.0mm-6.0mm |
| Medium plate | 6.0 mmt-25.0mm |
| Plate | 25mm-200mm |
| Super thick plate | more than 200mm |
| Quality | Approved by SGS,ISO |
| Width | 914 mm, 1000, 1200, 1220mm or as customer's requirement |
| Length | 2000-30000mm |
| Surface Finish | flat, stucco embossed, corrugated, smooth or orange peel embossed |
| Facing | compound with kraftpaper or Polysurlyn or Polykraft |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
| Payment terms | T/T, L/C at sight,West Union,D/P,D/A,Paypal |
| Delivery time | 7-15 Days |

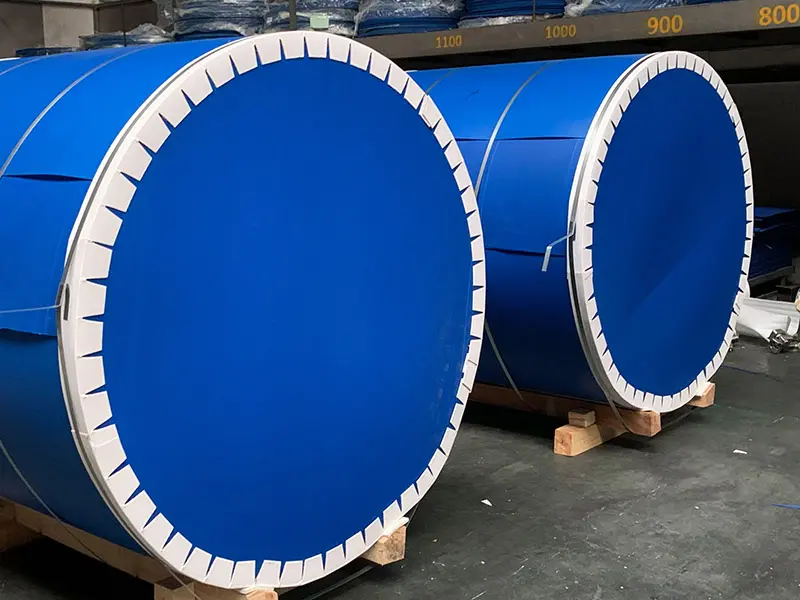

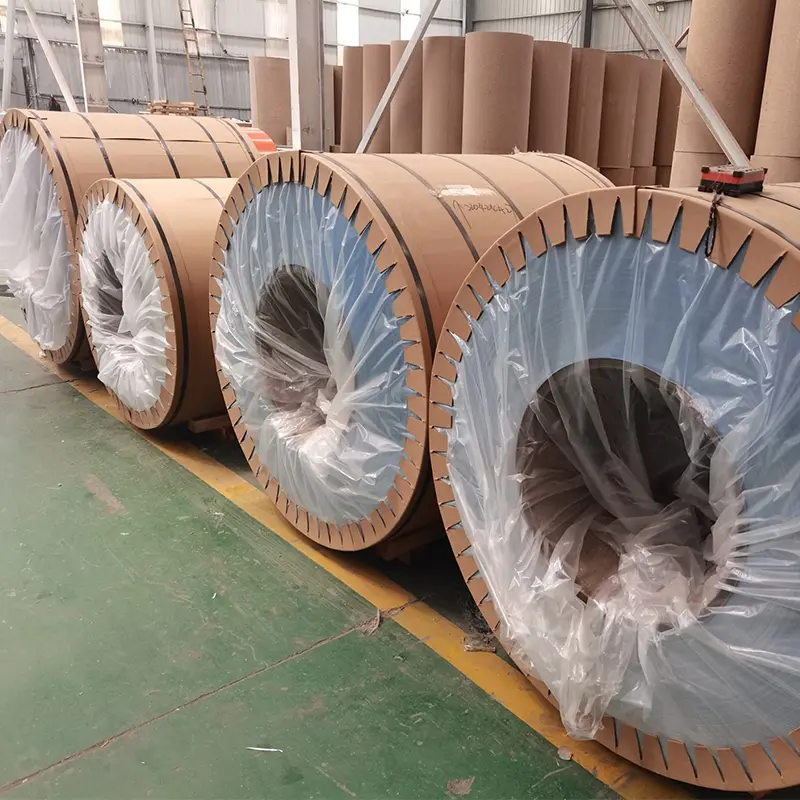

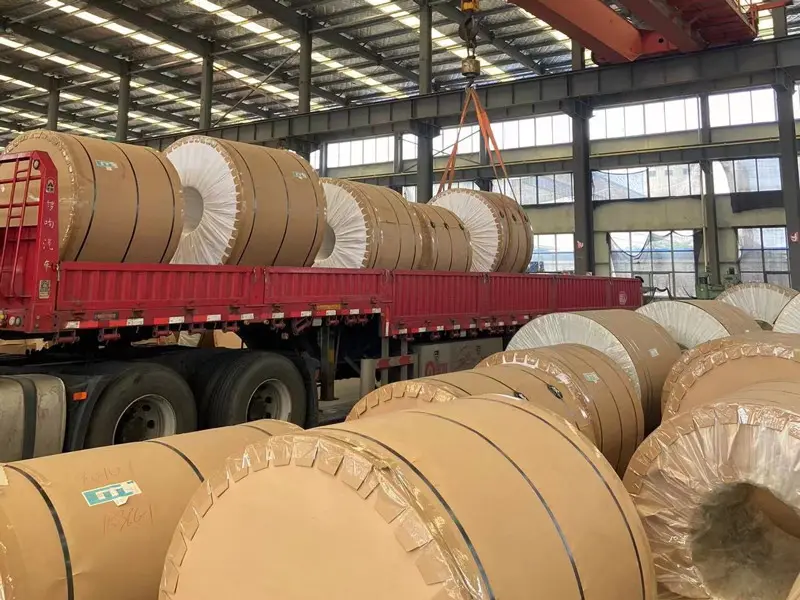

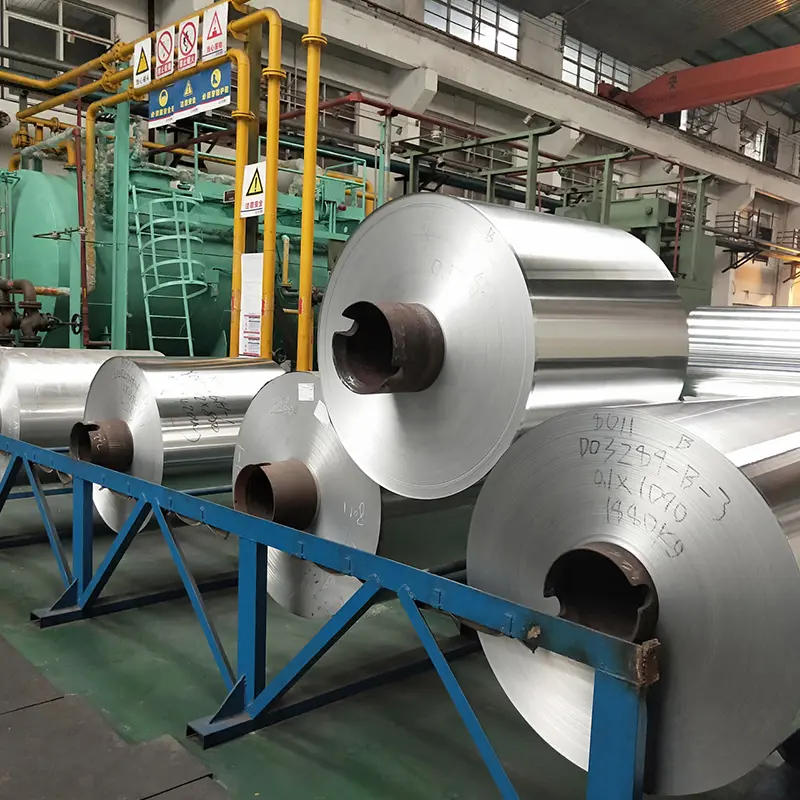

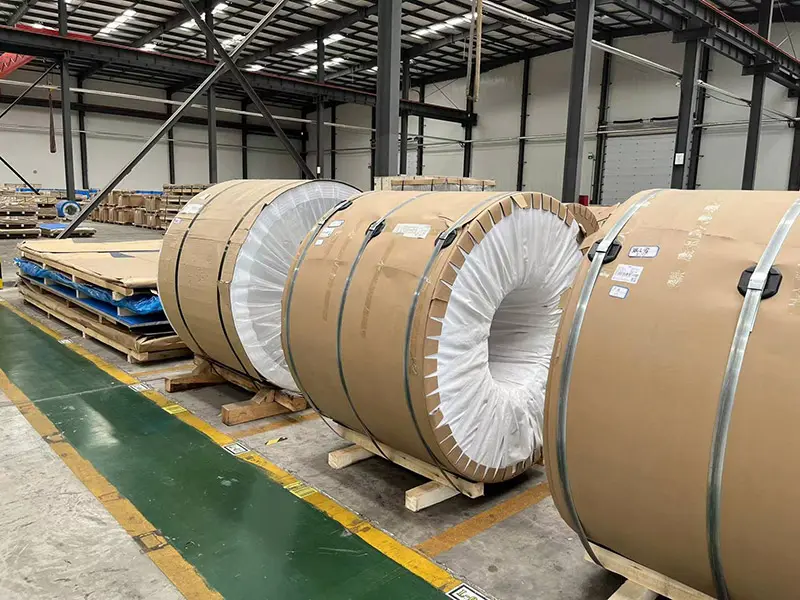

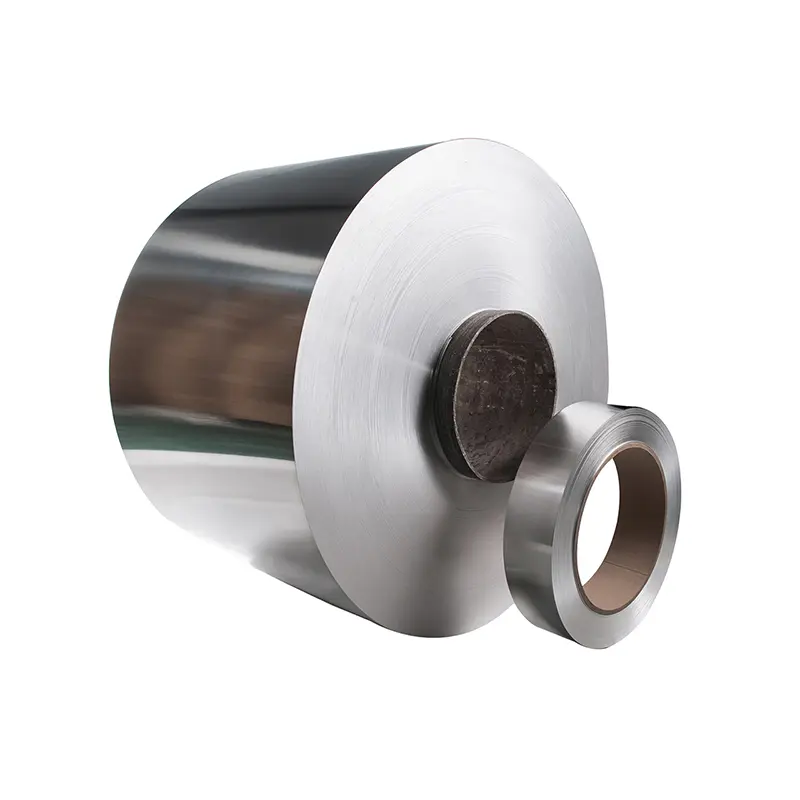

Product Display
Chemical Composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
|
1050 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
- |
0.05 |
0.03 |
0.03 |
- |
99.50 |
Mechanical Properties
| Tensile Strength (MPa) | Test Stress 0.2% (MPa) | Hardness HB | Elongation Rate (%) |
| 105-145 | ≥85 | ≥34 | ≥12 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
| 2.71 Kg/m³ | 650°C | 71 GPa | 222 W/m.K |
Annealing State
|
Brand |
Annealing State |
|
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
|
3xxx: 3003, 3004, 3005, 3105 |
|
|
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
|
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
|
2xxx: 2024 |
T3, T351, T4 |
|
7xxx: 7075 |
T6, T651 |
Scope of Application
|
Aluminum Uses And Application Area |
|
|
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
|
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
|
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
|
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
|
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
|
Other |
Military, color coated aluminum plate |
