1060 Aluminum Bar with Good Ductility

The 1060 Aluminum Bar is made from 99.6% pure aluminum, making it one of the most malleable and ductile aluminum alloys available. This means it can be easily shaped, cut, and formed to meet your specific requirements, whether you’re creating intricate designs or robust structural components. Its lightweight nature ensures that it won’t add unnecessary weight to your projects, making it a favorite among engineers and designers alike.
One of the standout features of the 1060 Aluminum Bar is its outstanding resistance to oxidation and corrosion. This makes it an excellent choice for outdoor applications or environments where exposure to moisture and chemicals is a concern. Whether you’re working on marine equipment, architectural elements, or electrical components, you can trust that the 1060 Aluminum Bar will maintain its integrity and appearance over time.

    specification

    Product Name

    1060 Aluminum Bar

    Material

    1060,1200,1100,2024,2124,3003,3004,3A12,5052,5652,5154,5254,5454,5083,5754,5086,5056,5456,5A02,6061,6062,6063,7075,8011,etc.

    OD

    21.3mm-508mm

    Length

    as required

    Diameter

    1-60mm or as required

    Surface

    mill, bright, polished, hair line, brush,sand blast, checkered,embossed, etching,etc

    Price Term

    Ex-work, FOB, CFR, CIF, etc.

    Application

    construction,decoration,hardware,electric appliances,machinery and other industrial and civil purposes,computer casting,telecommunication,equipment,lamp shade,air conditioner,cosmetics cover and so on.

    Product Display

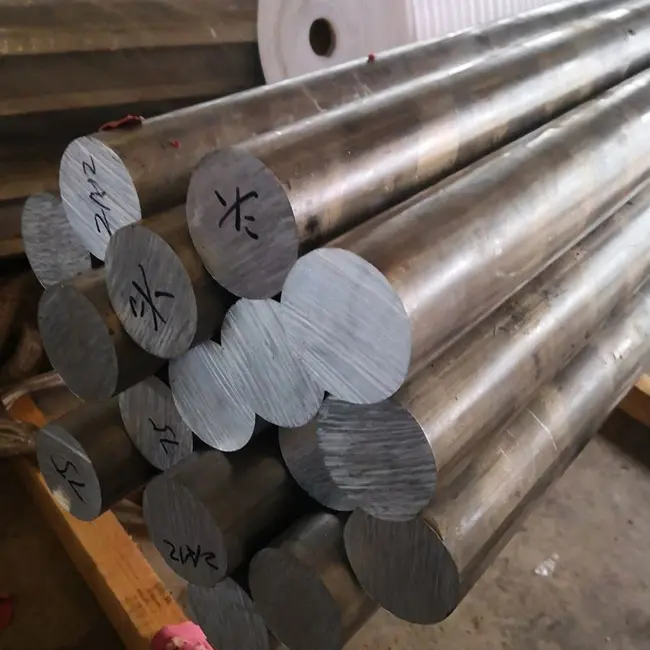

    • 1060 Aluminum Bar detail (1)

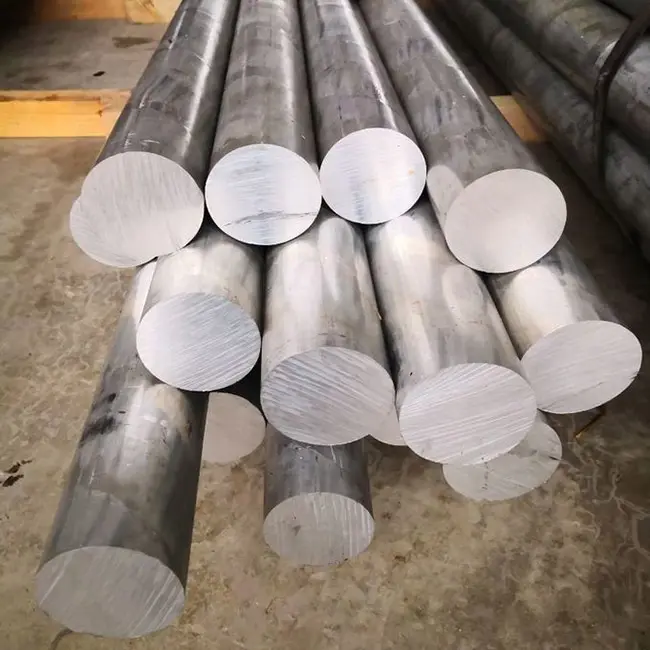

    • 1060 Aluminum Bar detail (2)

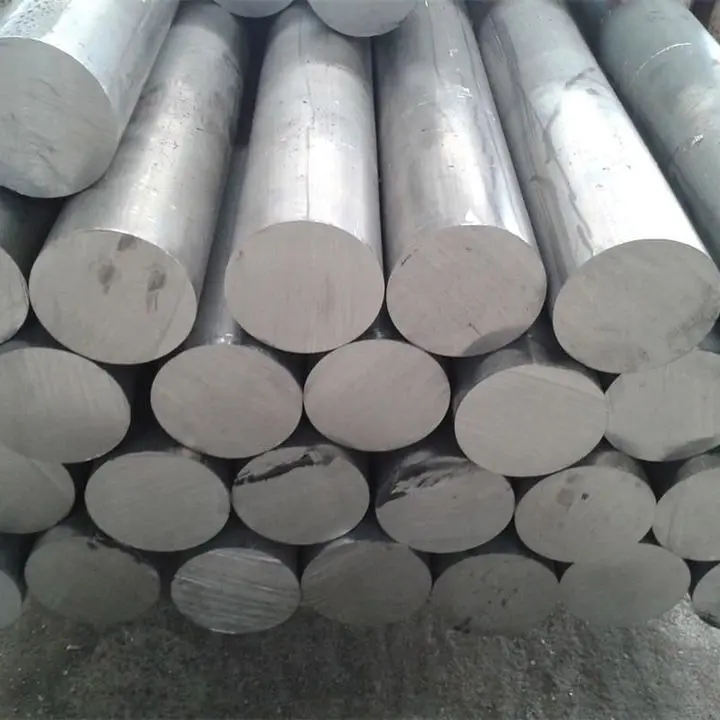

    • 1060 Aluminum Bar detail (3)

    Chemical Composition

    Alloy

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Others:

    Each

    Others:

    Total

    Al: Min.

    3A21

    0.60

    0.70

    0.20

    1.0-1.6

    0.05

    -

    0.15

    0.1-0.2

    -

    -

    Margin

    Mechanical Properties

    Tensile Strength (MPa) Yield Strength (MPa) Hardness HB Elongation Rate (%)
    89.6 34 23 15-28

    Physical Performance

    Density Melting Point Modulus of Elasticity Thermal Conductivity
    2.71 Kg/m³ 643-675.2 °C 68.9 GPa 222 W/m.K

    Annealing State

    Brand

    Annealing State

    1xxx: 1050, 1050A, 1060, 1100

    O, H12, H14, H16, H18, H22, H24, H26, H28, H111

    3xxx: 3003, 3004, 3005, 3105

    5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454

    O, H22, H24, H26, H28, H32, H34, H36, H38, H111

    6xxx: 6061, 6082

    T4, T6, T451, T651

    2xxx: 2024

    T3, T351, T4

    7xxx: 7075

    T6, T651

    Scope of Application

    Aluminum Uses And Application Area

    Food Packaging

    Beverage can ends, cans, bottle caps, etc.

    Building

    Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.

    Transportation

    Auto parts, passenger car bodies, aviation ships and air cargo containers.

    Electronic Equipment

    Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.

    Consumer Goods

    Umbrellas, cooking utensils, sports equipment, etc

    Other

    Military, color coated aluminum plate
