1060 Aluminum Plate for General Fabrication

The 1060 Aluminum Plate is lightweight yet incredibly strong, making it an excellent choice for a variety of applications, including automotive, aerospace, and construction. Its versatility allows it to be easily machined, welded, and formed, providing you with the flexibility to create intricate designs and components without compromising on strength or durability. Whether you’re fabricating parts for machinery or creating decorative elements, this aluminum plate delivers the reliability and performance you need.
One of the standout features of the 1060 Aluminum Plate is its excellent thermal conductivity, which makes it an ideal choice for heat exchangers and other applications where efficient heat transfer is crucial. Additionally, its resistance to oxidation and corrosion ensures that your products will maintain their integrity and appearance over time, even in harsh environments.

product details

specification

Product Name	1060 Aluminum Plate
Width	20-3000mm or Customized	Thickness	0.1-120mm or Customized
Length	100-12000mm or Customized	Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.
Delivery Time	Received 30%, After deposit 7-15 working day
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc.
Sample	Free Offers Sample
Packaging	Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement

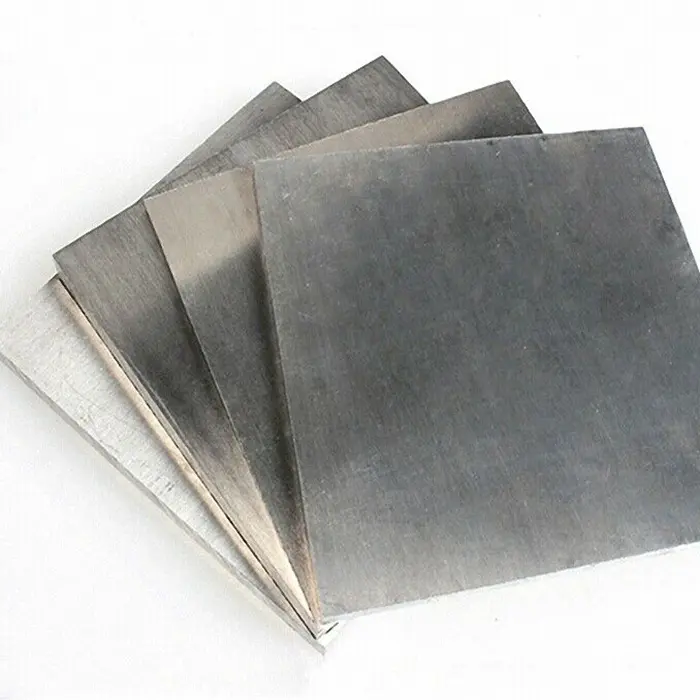

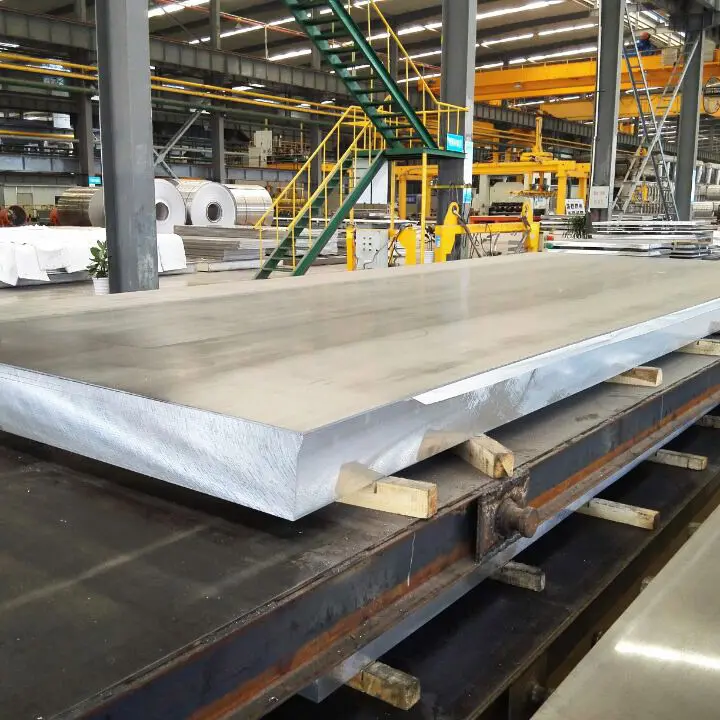

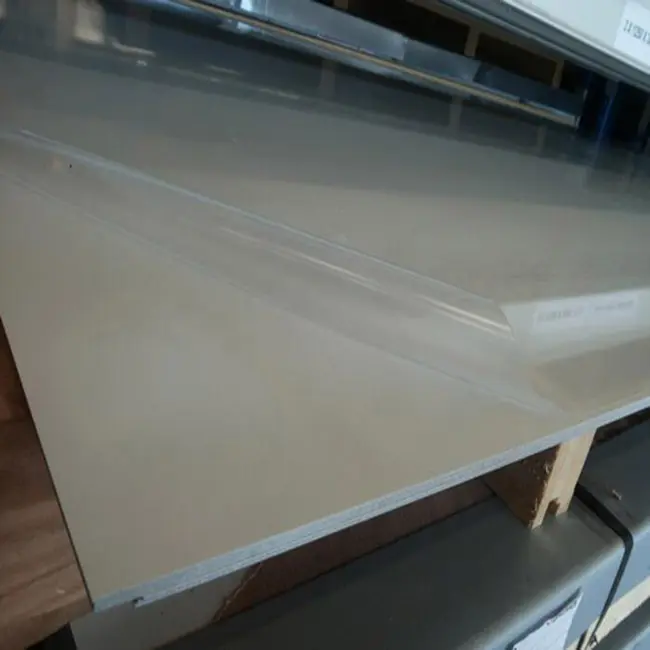

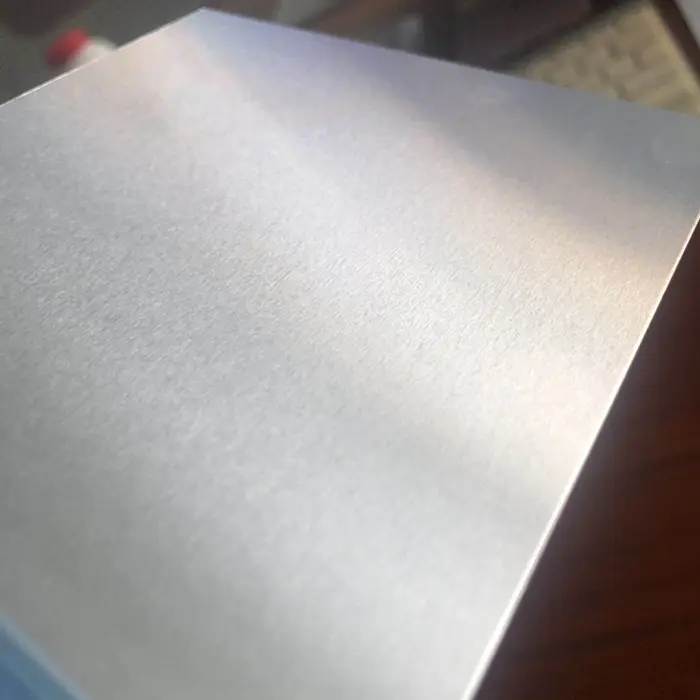

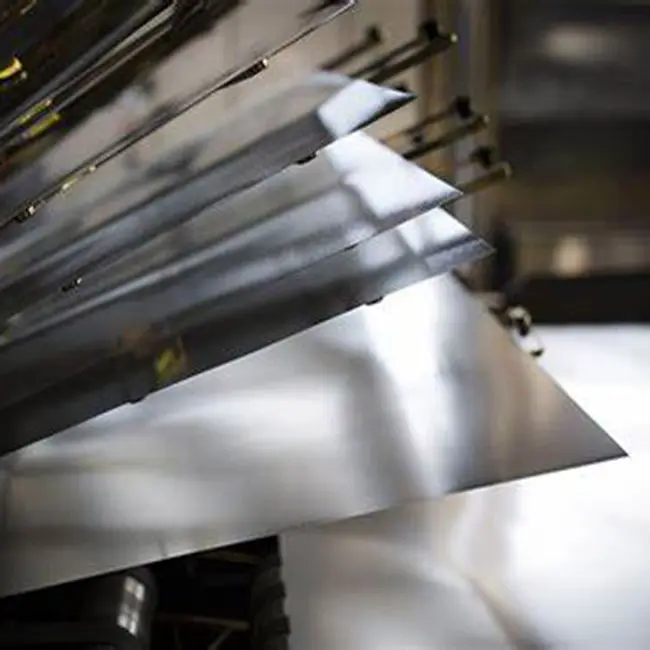

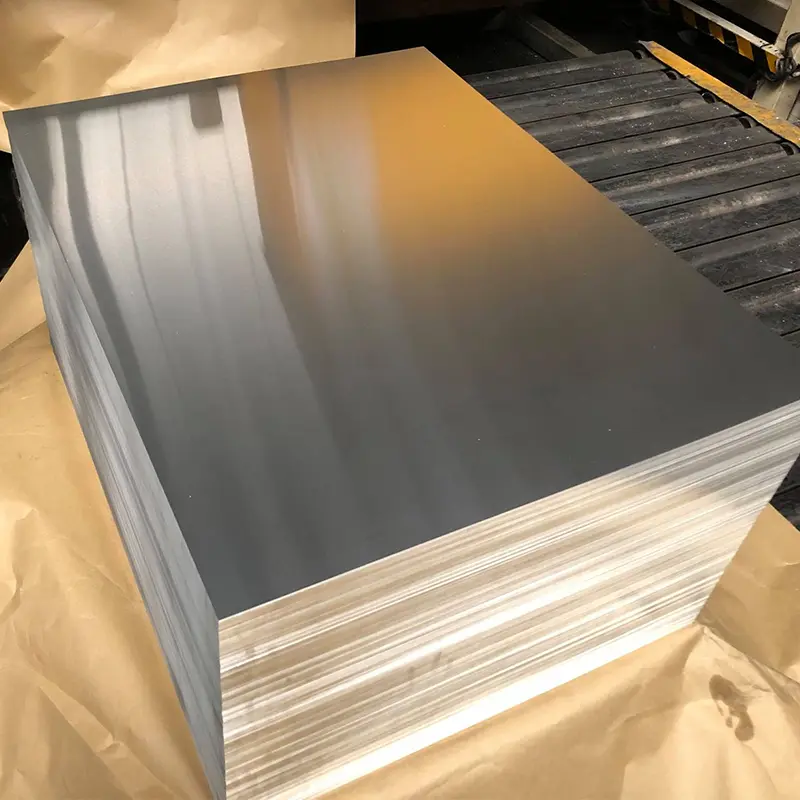

Product Display

Chemical Composition

Alloy

Others:

Each

Others:

Total

Al: Min.

1060

0.25

0.35

0.05

0.03

0.05

0.03

99.60

Mechanical Properties

Tensile Strength (MPa)	Test Stress 0.2% (MPa)	Elongation Rate D10 (%)	Tensile Strength (MPa)
110-136	≥75	3-5	110-136

Physical Performance

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity
2.7 Kg/m³	649 °C	70-80 GPa	234 W/m.K

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate
