1100 Aluminum Coil: Cost - Effective Option

The 1100 Aluminum Coil boasts a minimum aluminum content of 99.0%, making it one of the purest forms of aluminum available. This purity not only enhances its strength but also ensures that it remains lightweight, making it an ideal choice for projects where weight reduction is crucial. Its malleability allows for easy shaping and forming, enabling you to create intricate designs without compromising on structural integrity.
The versatility of the 1100 Aluminum Coil extends to its applications. It is commonly used in the manufacturing of heat exchangers, chemical equipment, and food processing equipment, as well as in decorative applications and signage. Its ability to be easily welded and joined makes it a favorite among fabricators and engineers alike.

product details

specification

Grade	1100 Aluminum Coil
Temper	all available, H1X, H2X, H3X, O, HXXX
Coil ID	75mm, 150mm, 200mm, 300mm, 400mm, 508mm or negotiable
Coil OD	per customer’s request
Thickness	0.20-8.0mm
Width	8-2400mm
tolerance	+/-2%
Alloy or not	non-alloy/pure aluminum
Standard	JIS, AISI, ASTM, GB, DIN, EN
Certification	ISO
Surface	powder coated, anodized polishing, mirror finish, diamond , tread, brushed, wood grain, stucco embossed
Property	anti-corrosion, heat resistant
Production process	cold rolled
Application	storage device, decoration, pressure vessels ,etc
Core	paper core
Coil weight	2 tons
Origin	China mainland
Payment	TT,LC
Package	covered with a layer of plastic film and cardboard, packed on the wooden pallets, bound with iron belt, loaded in the containers.
Delivery	15~30 days

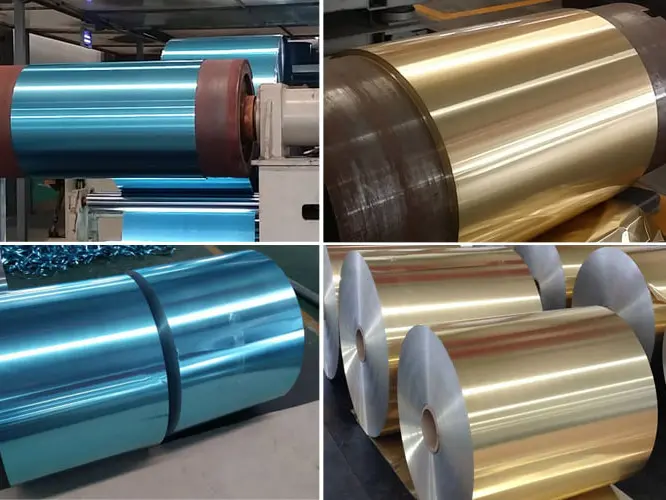

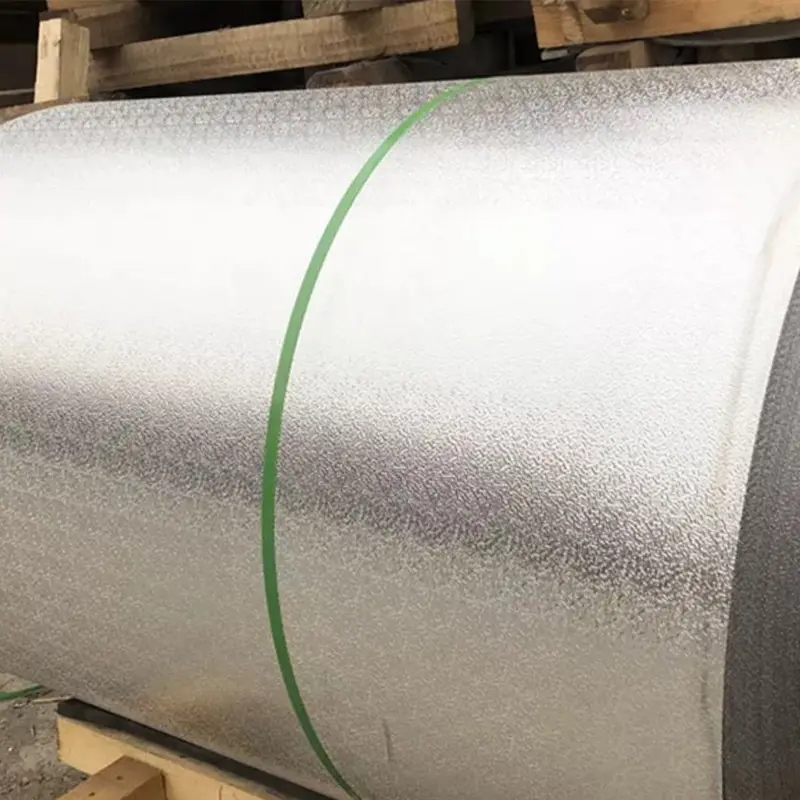

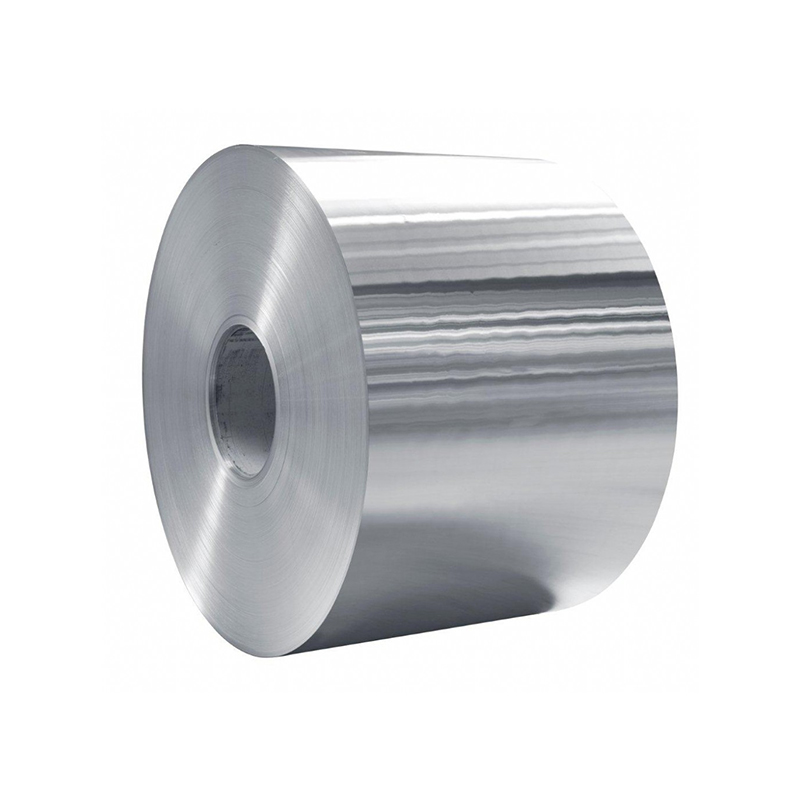

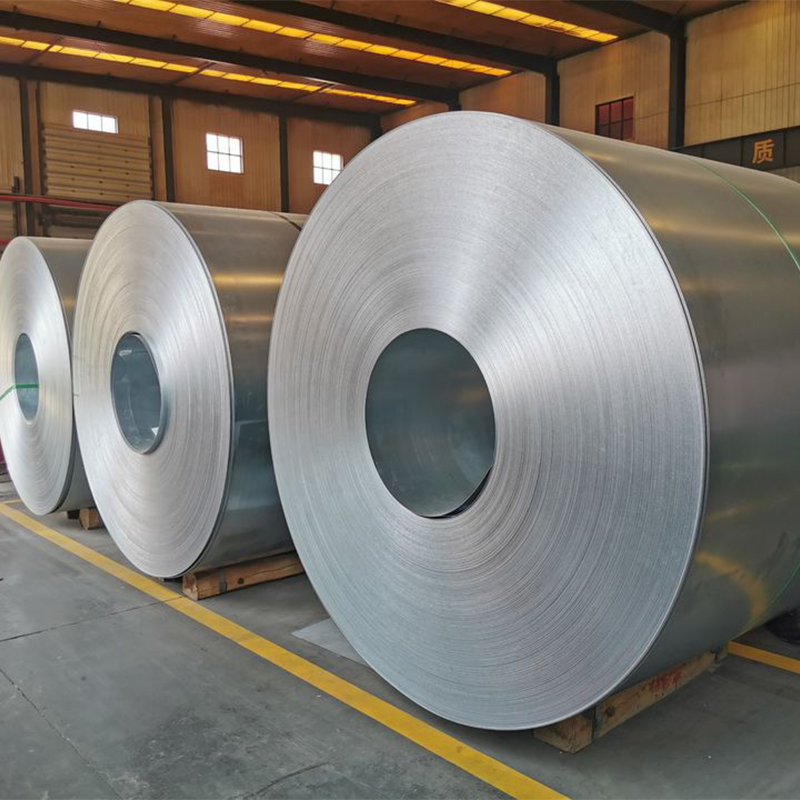

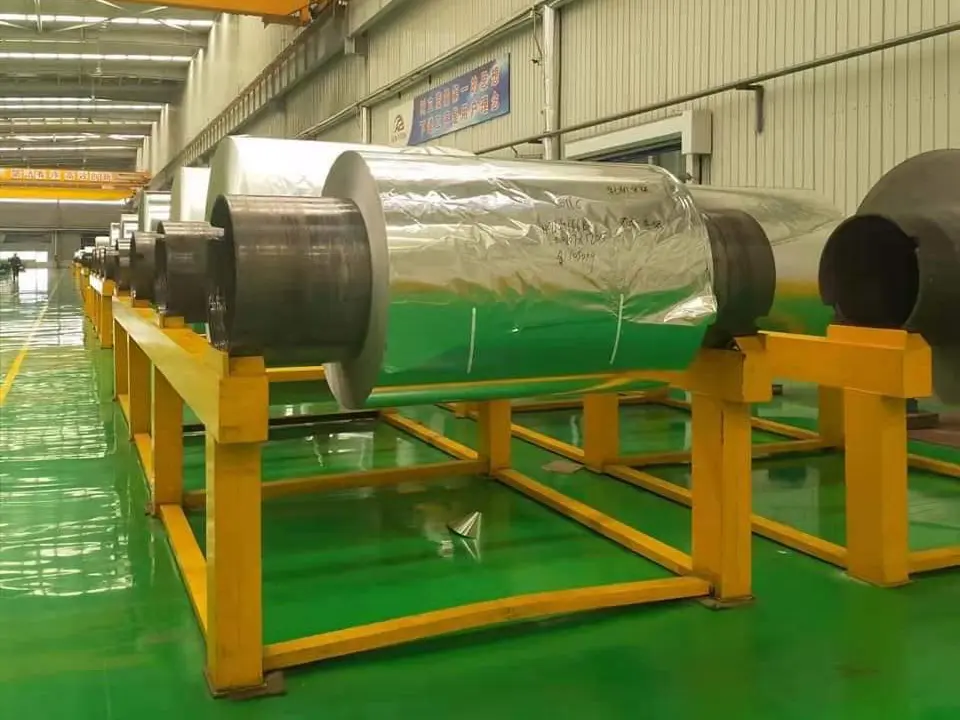

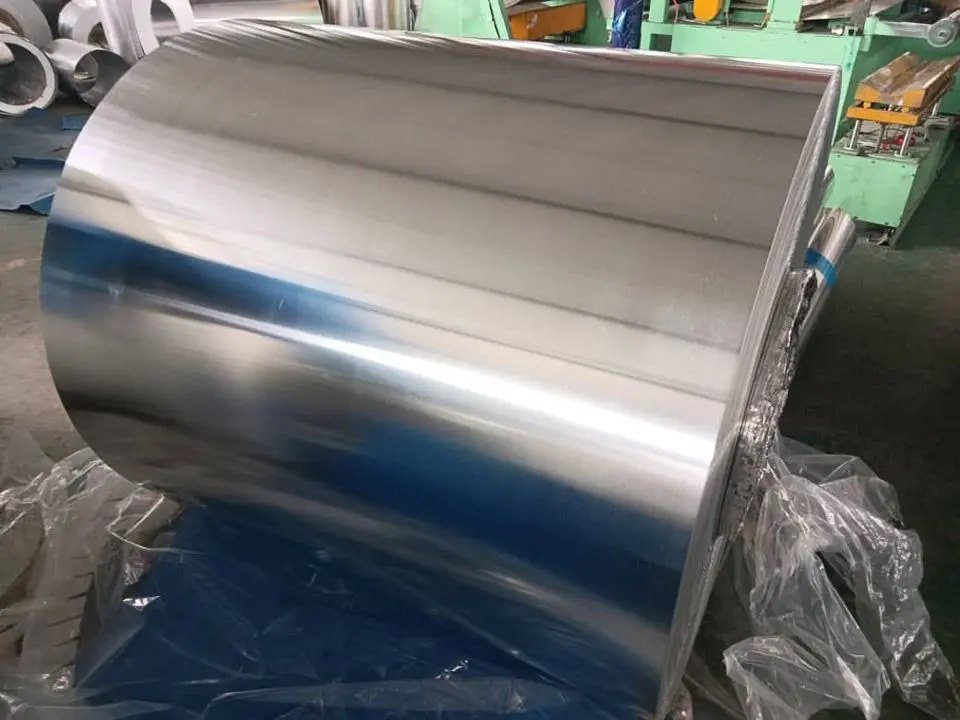

Product Display

Chemical Composition

Alloy

Others:

Each

Others:

Total

Al: Min.

1100

0.95 Si Fee

0.05~0.20

0.05

0.1

0.05

0.15

99.0

Mechanical Properties

Tensile Strength (MPa)	Yield Strength (MPa)	Hardness HB	Elongation Rate (%)
89.6	34	23	15-28

Physical Performance

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity
2.71 Kg/m³	643-675.2 °C	68.9 GPa	222 W/m.K

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate
