A283/Q195 carbon steel plate for machinery parts

The A283 steel plate is known for its excellent weldability and formability, which allows it to be easily shaped and joined to create complex structures. With a yield strength of approximately 205 MPa, it provides the necessary support for buildings, bridges, and other infrastructure projects. Its low carbon content ensures that it maintains good ductility, making it suitable for applications that require bending and shaping without compromising integrity.
Both A283 and Q195 steel plates are available in various thicknesses and dimensions, allowing for customization to meet specific project requirements. Their compatibility with standard fabrication processes ensures that they can be seamlessly integrated into existing workflows.

product details

specification

Product Name	A283/Q195 Carbon Steel Plate
Standard	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Width	45mm-2200mm
Production Process	Hot Rolling, Cold Rolling
Error	±1%
Certification	ISO 9001 ，CE，API
Surface treatment	Rolling, Annealing, Quenching, Tempered or Standard
Country of origin	China
Main Applications	Building Structure、Bridges、Mechanical manufacturing、Shipbuilding、Automobile Industry、Pipelines and Tanks、Furniture and Equipment
Package	Bundling packaging、Anti-rust treatment、Wooden Pallet or Steel Pallet、Plastic film wrapping、Containerized shipping、Identification and labeling
Payment Term	TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service	1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

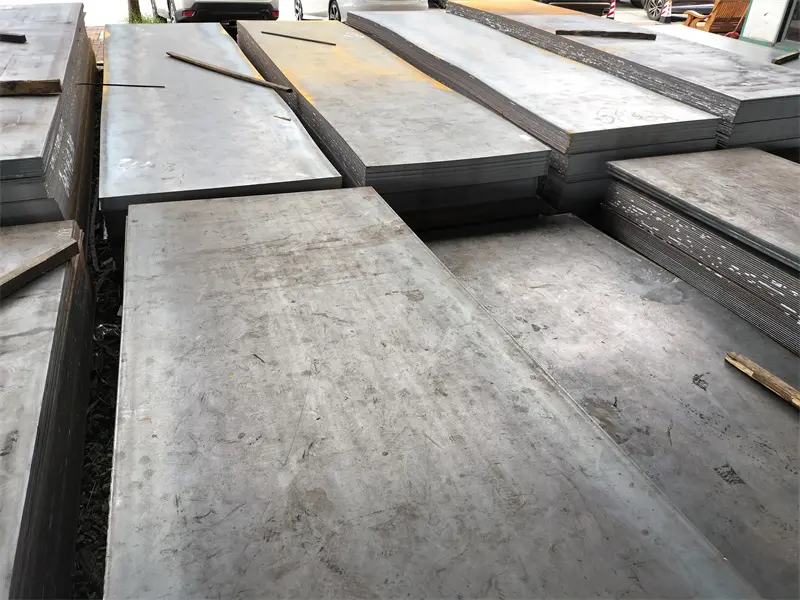

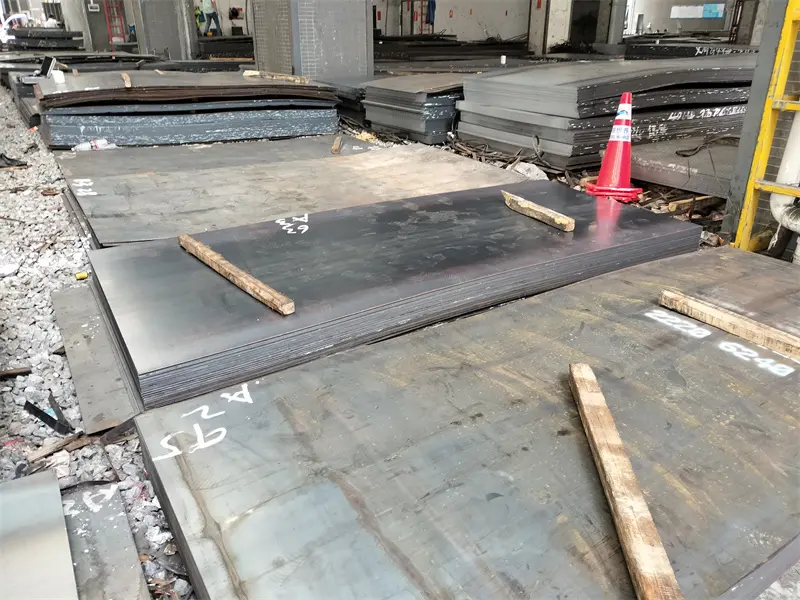

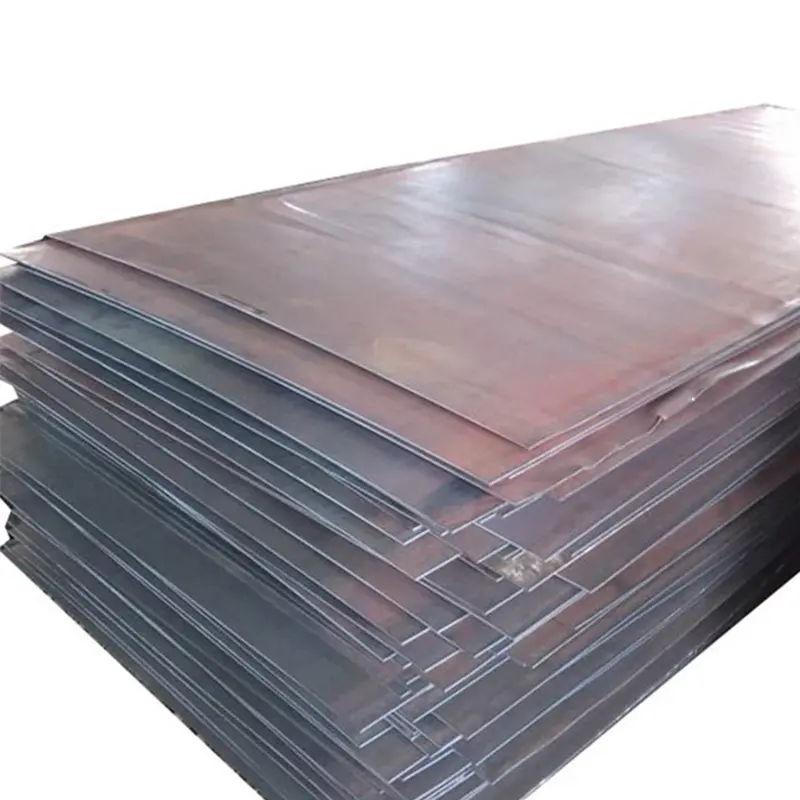

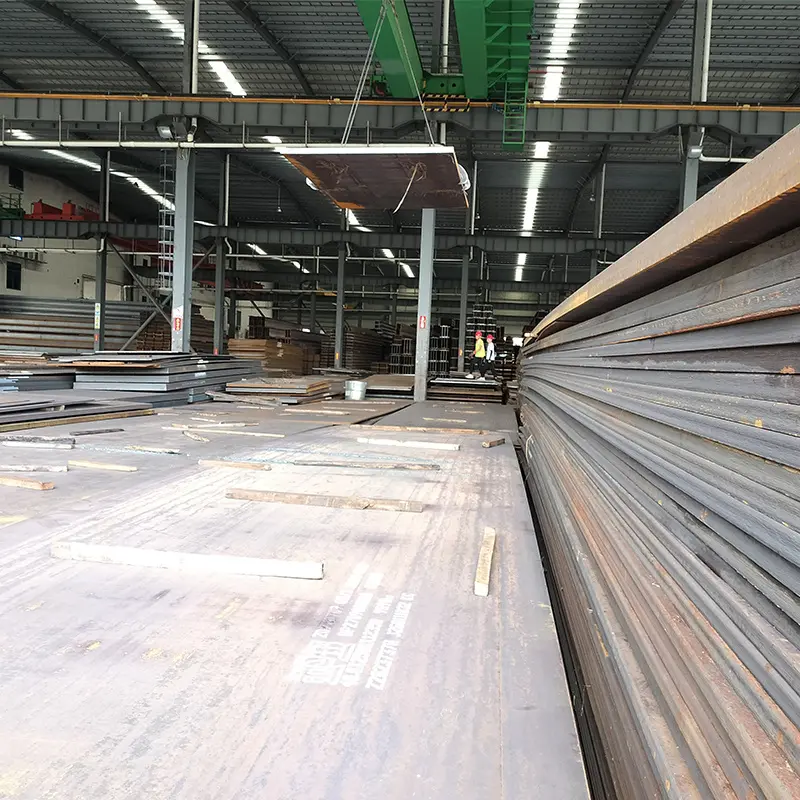

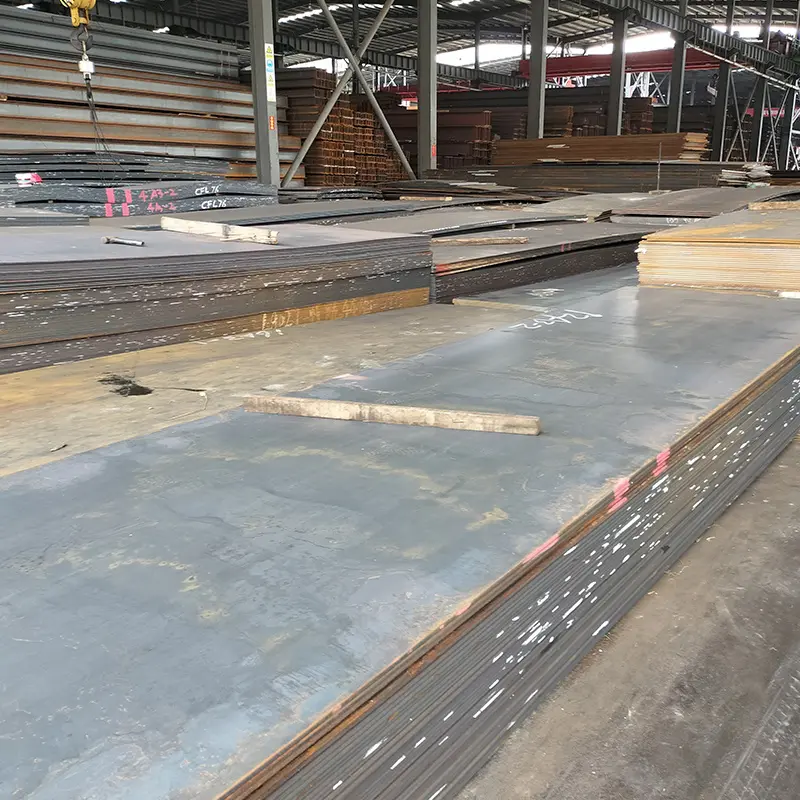

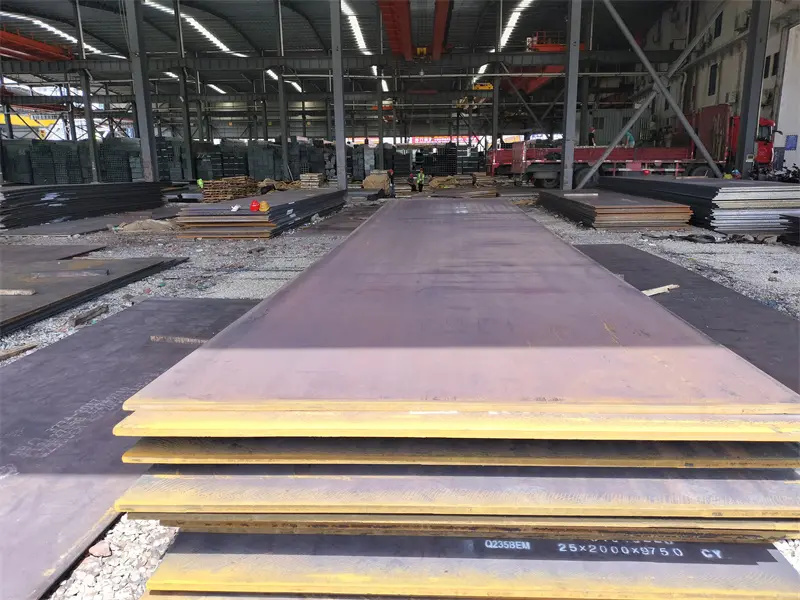

Product Display

Chemical Composition

A283	C max.	Mn max.	P max.	S max.	Si (Greater1 inch, less than 1/2 inch)	Si (Greater1/2 inch)	Cu min.
GradeA	0.14	0.90	0.035	0.04	0.40	0.15~0.40	0.20
GradeB	0.17	0.90	0.035	0.04	0.40	0.15~0.40	0.20
GradeC	0.24	0.90	0.035	0.04	0.40	0.15~0.40	0.20
GradeD	0.27	0.90	0.035	0.04	0.40	0.15~0.40	0.20

Mechanical Properties

A283	Tensile Strength		Yield Strength min.		Elongation Rate8 Inches	Elongation Rate2 Inches
GradeA	45000-60000psi	310-415MPa	24000psi	165MPa	27%min.	30%min.
GradeB	50000-65000psi	345-450MPa	27000psi	185MPa	25%min.	28%min.
GradeC	55000-75000psi	380-515MPa	30000psi	205MPa	22%min.	25%min.
GradeD	60000-80000psi	415-550MPa	33000psi	230MPa	20%min.	23%min.

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80g/cc	0.282 lb/in³
