Color Coated Galvalume Steel Coil PPGL

PPGL is crafted using advanced technology that combines the strength of Galvalume steel with a vibrant, long-lasting paint finish. This unique combination not only enhances the visual appeal of your projects but also provides exceptional resistance to corrosion, ensuring longevity even in the harshest environments. Whether you are constructing residential homes, commercial buildings, or industrial facilities, PPGL is the ideal choice for roofing, siding, and interior applications.
One of the standout features of PPGL is its versatility. Available in a wide range of colors and finishes, it allows architects and designers to unleash their creativity while maintaining the structural integrity of their projects. The smooth, high-quality surface of PPGL is easy to clean and maintain, making it a practical choice for both new constructions and renovations.

product details

specification

Product name	Color Coated Galvalume Steel Coil PPGL
Product Name	Hot Dip Prepainted Galvanized Steel Coil
Material	Galvanized Steel
Zinc Coating	Z20-Z275
Thickness	0.13-0.8mm
Width	600-1250mm
Color	All RAL Color or as clients' request
Paint	PE, PVDF, SMP, HDP
Surface	Glossy ang Matte
Coil Weight	3-8 Tons

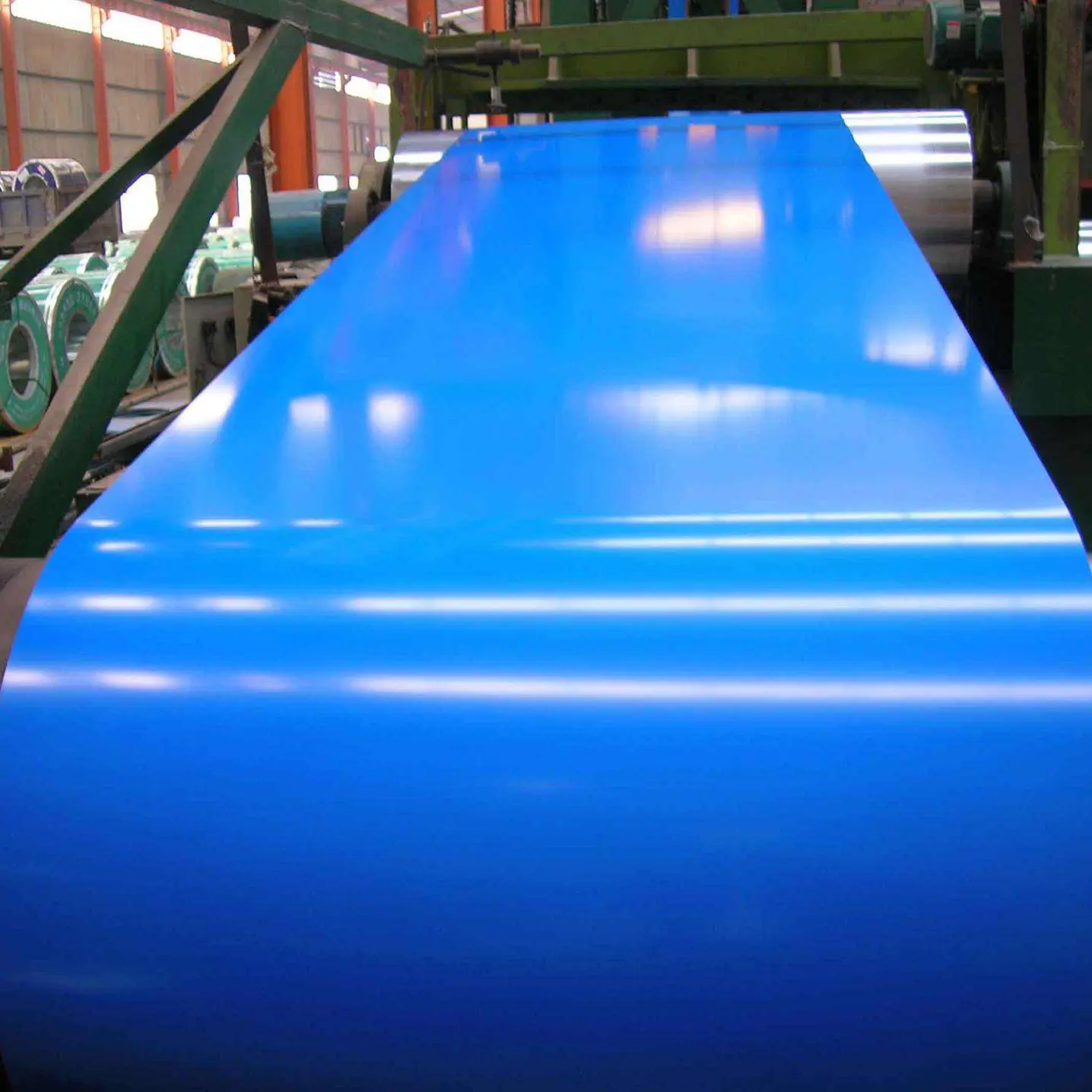

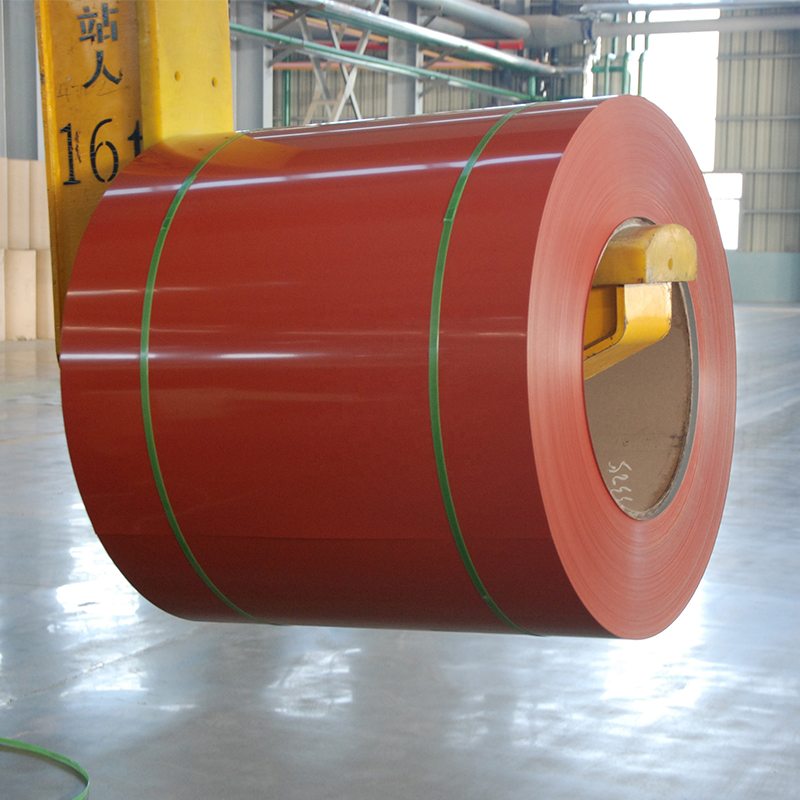

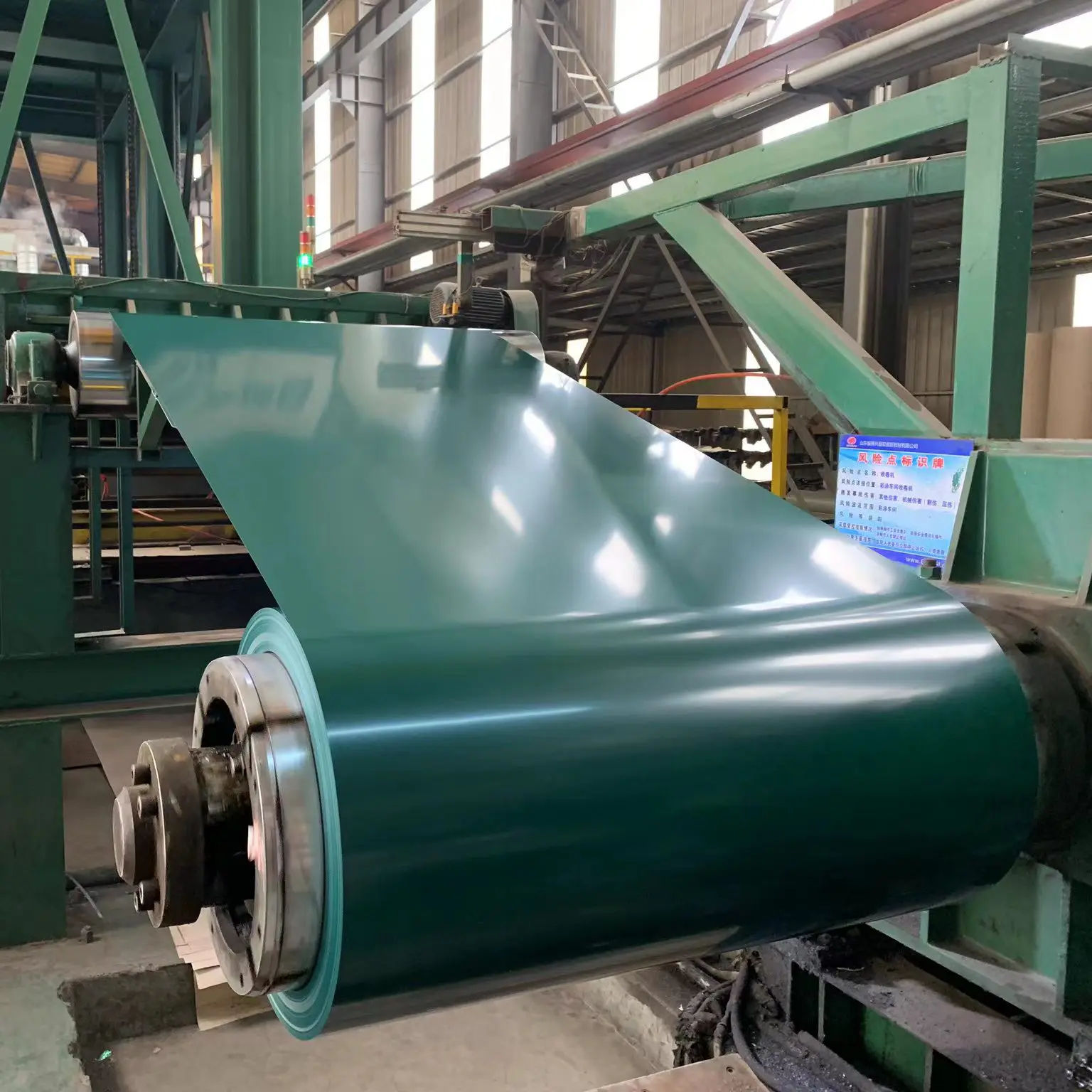

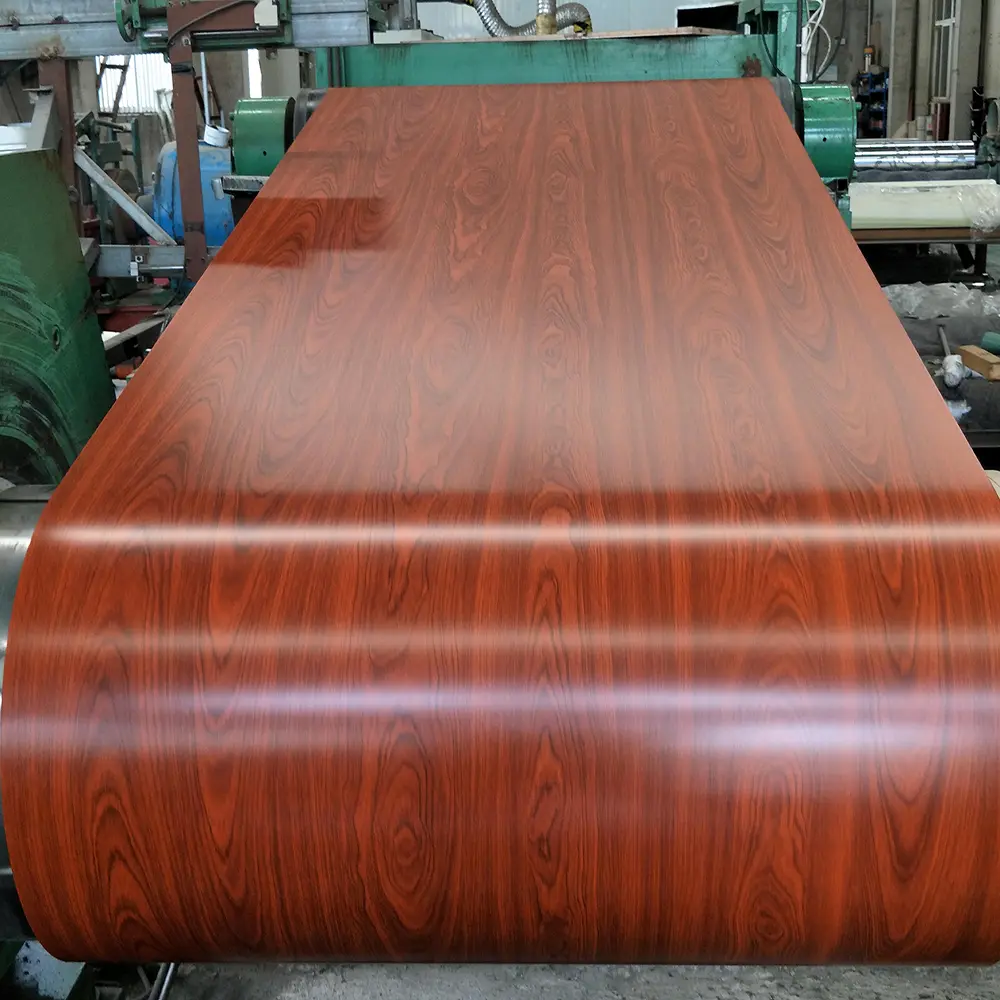

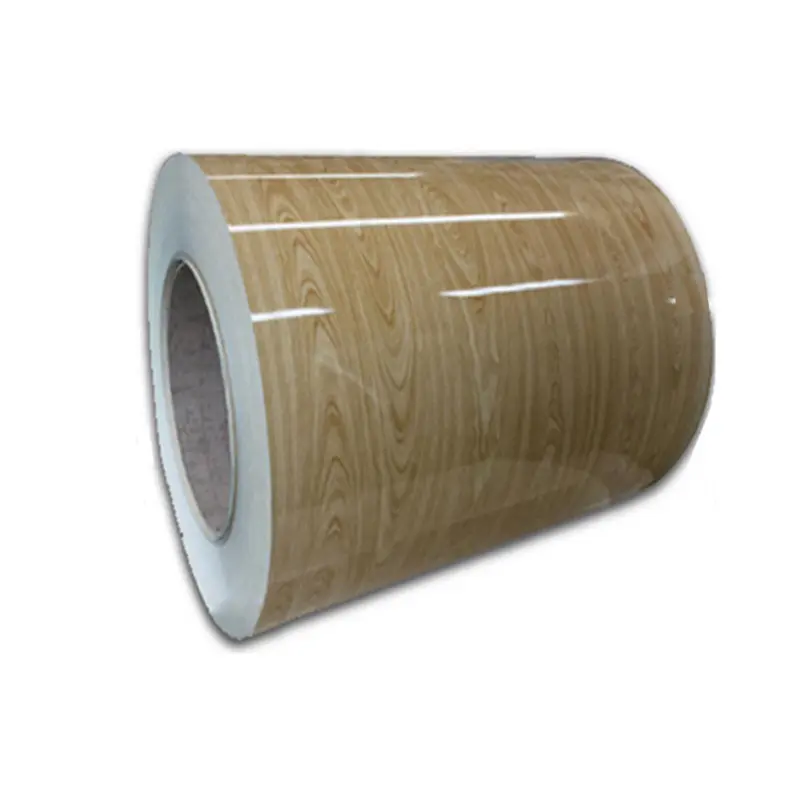

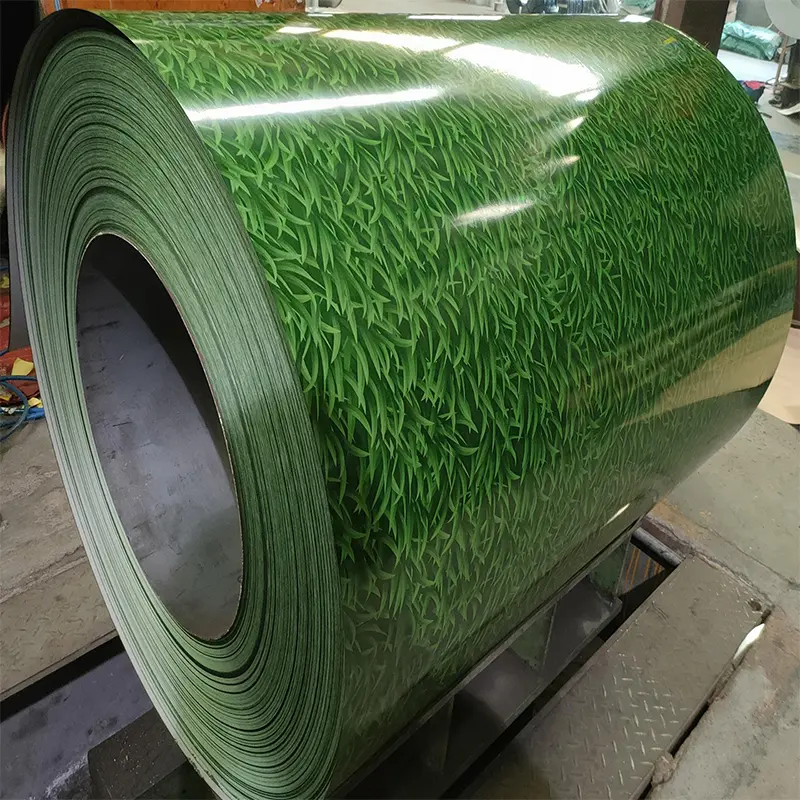

Product Display

Product Specification and Size

PPGI / PPGL / PPGF

Product Type	Pre-Painted Hot-Dip Galvanized Steel Coil (PPGI)	Pre-Painted Hop-Dip 5% Al-Zn Coated Steel Coil (PPGF)	Pre-Painted Hop-Dip 55% Al-Zn Coated Steel Coil (PPGL)	Pre-Painted Embossed Steel Coil
Coating Types	1. Polyester (PE) 2. Silicone Modified Polyester (SMP) 3. Acrylic 4. Polyvinylidene Difluoride (PVDF)			PVC Plastisol
Specifications	CNS 10804 (2013) CNS 15298 (2013) CNS 15299 (2013) JIS G3312 (2013) CGCC CGCD1~3 CGC340 CGC400 CGC440 CGC490 CGC570 JIS G3318 (2013) CZACC CZACH CZACD1 CZAC340 CZAC400 CZAC440 CZAC490 CZAC570 JIS G3322 (2013) CGLCC CGLCD CGLC400 CGLC440 CGLC490 CGLC570 ASTM A755M (2016) AS 2728 (2013) EN 10169+A1 (2010)			JIS K6744 (2007) SG SA ASTM A755M (2016) EN 10169+A1 (2010)
Coating Types	Primer: PU or Epoxy 5μm Topcoat: 15-20μm Back Primer: PU or Epoxy 2μm Back Coat: PE or Epoxy 5-12μm			Primer: Epoxy Topcoat: PVC PLASTISOL 150- 250μm Back Primer: PU or Epoxy 2μm Back Coat: PVC PLASTISOL 100 - 250μm or Epoxy 7μm
Surface Treatment	Protective film can be applied Metal Embossed Cedar wood Stucco Leather			PVC Embossed Leather Lichee
Remarks	1. The ASTM standards presented here adopt the equivalent metric system. (The imperial system deletes the “M" after their specification number, such as A755 and A792.) 2. Coating thickness is for reference only.

Available Size

Name	Thickness	Width
Pre-painted Hot-dip Galvanized Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 5% Al-Zn Coated Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 55% Al-Zn Coated Steel Coil	0.2~1.38mm	600~1250mm
