Color Coated Galvanized Steel Coil PPGI

Our Color-Coated Galvanized Steel Coil is manufactured using high-quality steel that undergoes a meticulous galvanization process, ensuring exceptional resistance to corrosion and rust. The addition of a color coating not only enhances the aesthetic appeal of the steel but also provides an extra layer of protection against environmental factors, UV rays, and wear and tear. Available in a variety of colors and finishes, this product allows architects and designers to unleash their creativity while ensuring long-lasting performance.
The lightweight nature of our Color-Coated Galvanized Steel Coil makes it easy to handle and install, reducing labor costs and time on-site. Its flexibility allows for seamless integration into various designs, whether for residential, commercial, or industrial projects. Additionally, the coil can be easily cut, shaped, and formed to meet specific project requirements, making it a favorite among builders and contractors.

product details

specification

Product Name	Color Coated Galvanized Steel Coil PPGI
Standard	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Thickness	0.12mm-6.00mm
Width	600mm-1500mm
Zinc Layer	Hot Galvanizing: 60-275g/m²
Zinc Layer	Pre-galvanized: 80-275g/m²
Error	±1%
Certification	ISO 9001 ，CE，API
Surface treatment	Hot dip galvanizing, electro galvanizing, zinc spraying, painting, phosphating, calcification, cleaning and degreasing
Country of origin	China
Main Applications	Building Structure、Bridges、Mechanical manufacturing、Shipbuilding、Automobile Industry、Pipelines and Tanks、Furniture and Equipment
Package	Construction industry, home appliance industry, automobile industry, machinery manufacturing, furniture manufacturing, power industry, transportation
Payment Term	TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service	1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

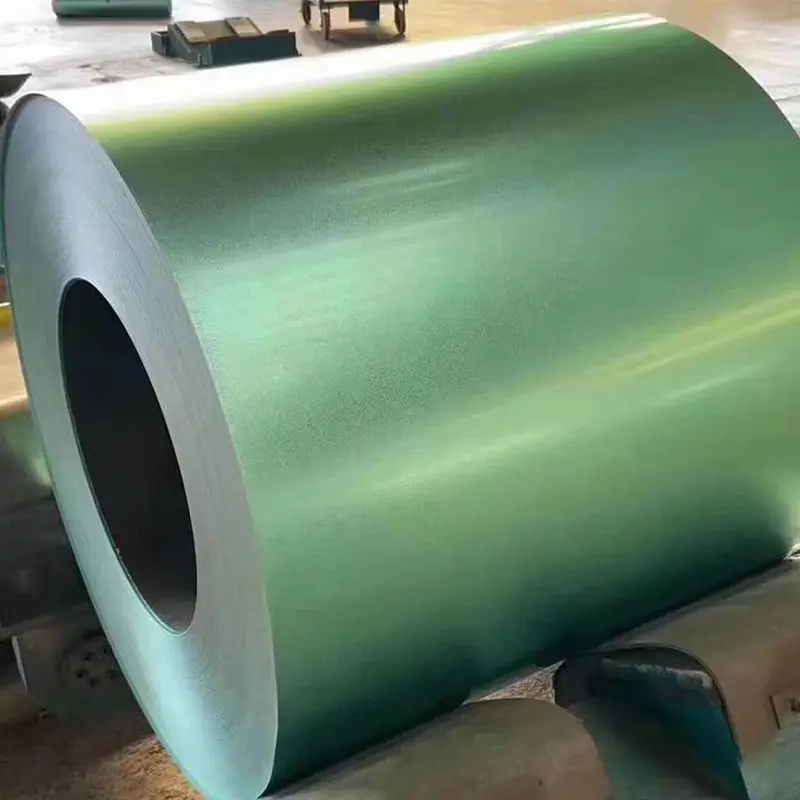

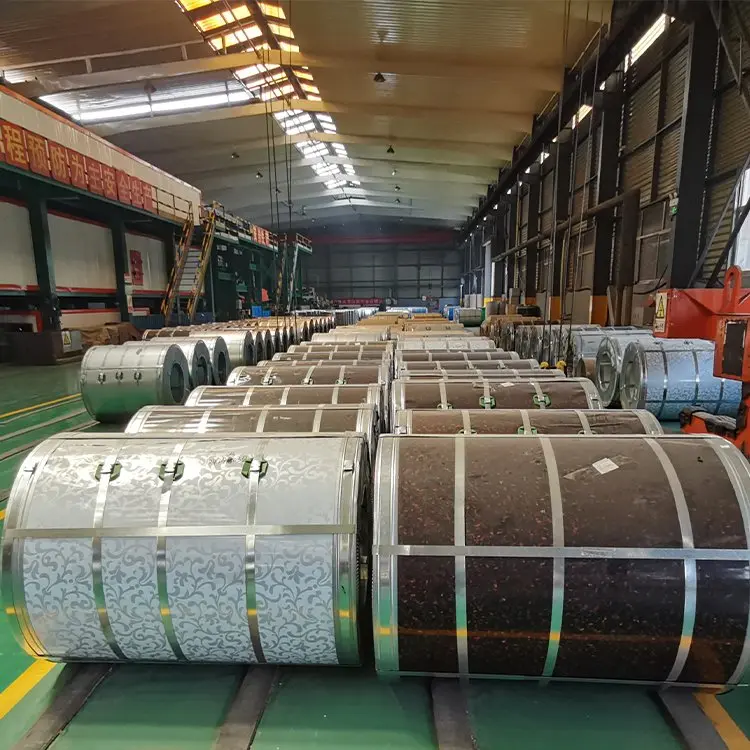

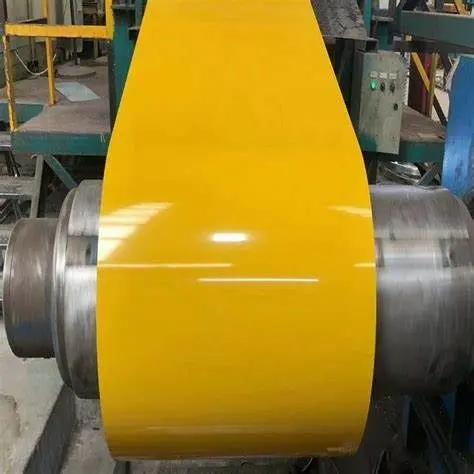

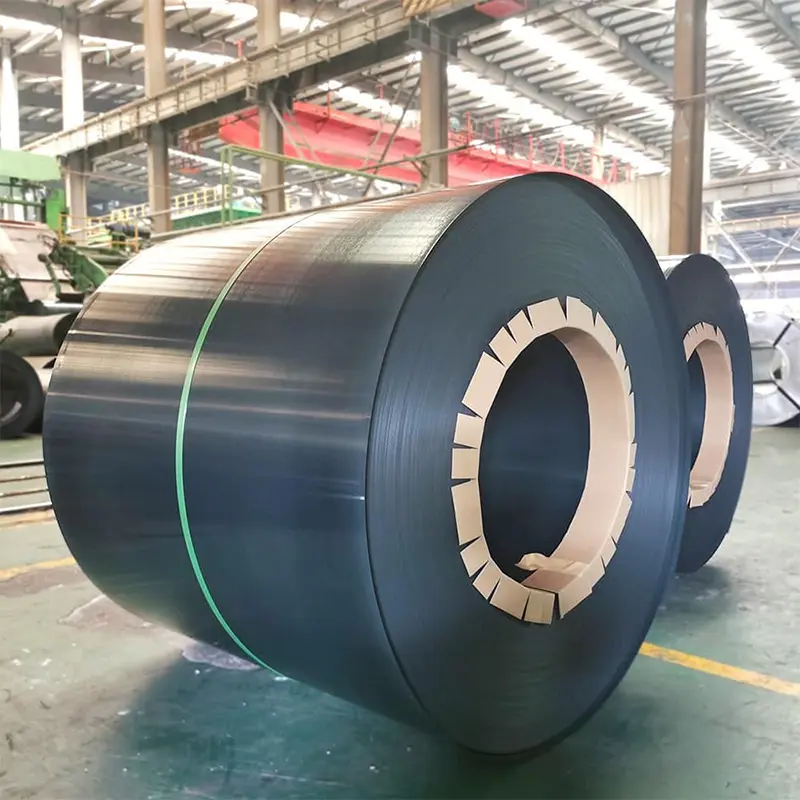

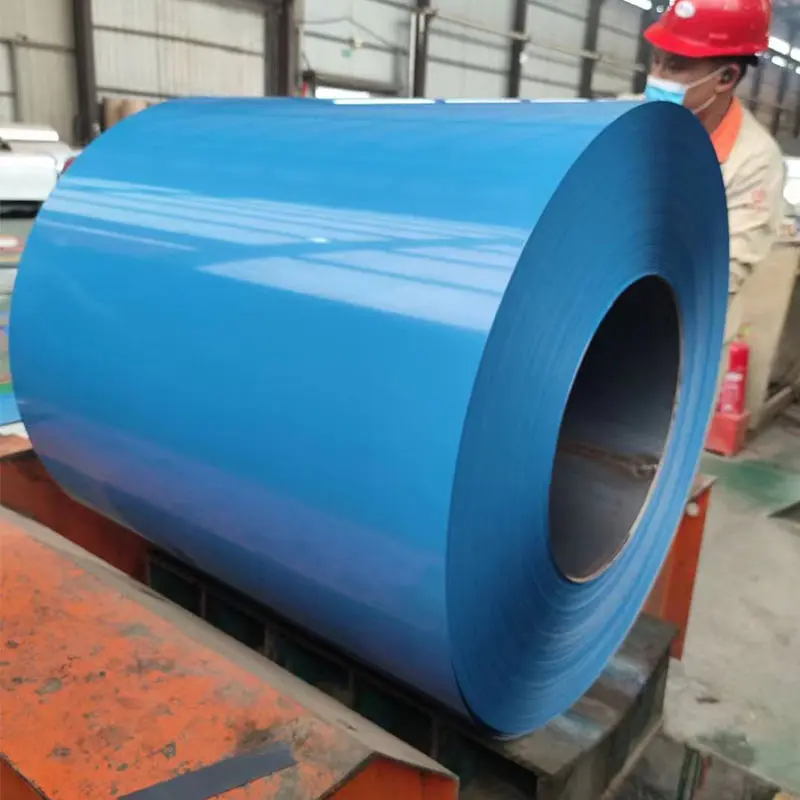

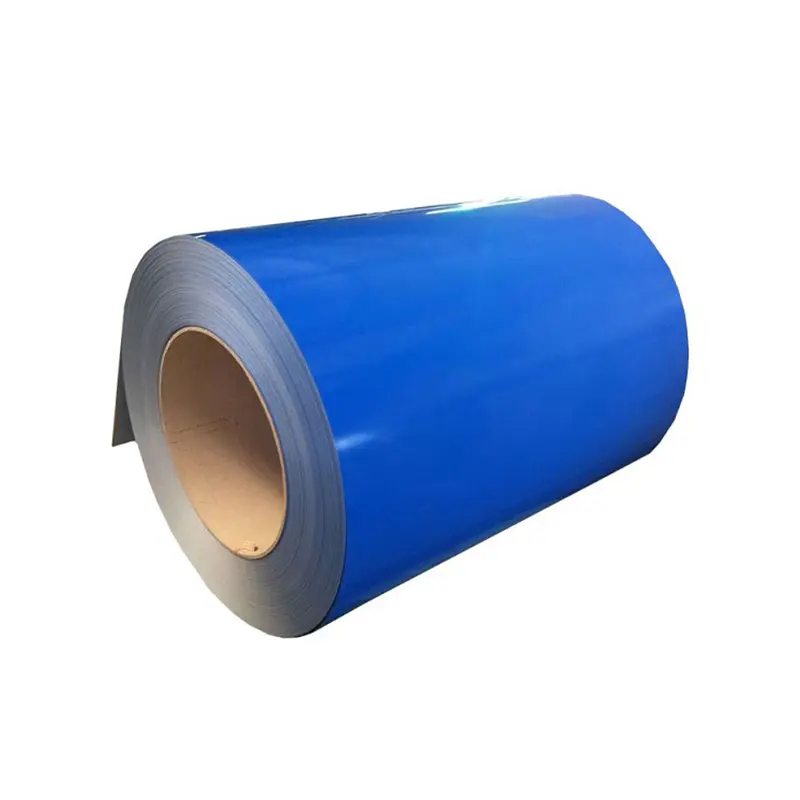

Product Display

Product Specification and Size

PPGI / PPGL / PPGF

Product Type	Pre-Painted Hot-Dip Galvanized Steel Coil (PPGI)	Pre-Painted Hop-Dip 5% Al-Zn Coated Steel Coil (PPGF)	Pre-Painted Hop-Dip 55% Al-Zn Coated Steel Coil (PPGL)	Pre-Painted Embossed Steel Coil
Coating Types	1. Polyester (PE) 2. Silicone Modified Polyester (SMP) 3. Acrylic 4. Polyvinylidene Difluoride (PVDF)			PVC Plastisol
Specifications	CNS 10804 (2013) CNS 15298 (2013) CNS 15299 (2013) JIS G3312 (2013) CGCC CGCD1~3 CGC340 CGC400 CGC440 CGC490 CGC570 JIS G3318 (2013) CZACC CZACH CZACD1 CZAC340 CZAC400 CZAC440 CZAC490 CZAC570 JIS G3322 (2013) CGLCC CGLCD CGLC400 CGLC440 CGLC490 CGLC570 ASTM A755M (2016) AS 2728 (2013) EN 10169+A1 (2010)			JIS K6744 (2007) SG SA ASTM A755M (2016) EN 10169+A1 (2010)
Coating Types	Primer: PU or Epoxy 5μm Topcoat: 15-20μm Back Primer: PU or Epoxy 2μm Back Coat: PE or Epoxy 5-12μm			Primer: Epoxy Topcoat: PVC PLASTISOL 150- 250μm Back Primer: PU or Epoxy 2μm Back Coat: PVC PLASTISOL 100 - 250μm or Epoxy 7μm
Surface Treatment	Protective film can be applied Metal Embossed Cedar wood Stucco Leather			PVC Embossed Leather Lichee
Remarks	1. The ASTM standards presented here adopt the equivalent metric system. (The imperial system deletes the “M" after their specification number, such as A755 and A792.) 2. Coating thickness is for reference only.

Available Size

Name	Thickness	Width
Pre-painted Hot-dip Galvanized Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 5% Al-Zn Coated Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 55% Al-Zn Coated Steel Coil	0.2~1.38mm	600~1250mm
