Durable 1050 Aluminum Bar for DIY Projects
specification
| Bar Wire Standard | ASTM B221, B211, B565, B316, AMS 4121 2014 |
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Rolled Flat Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |

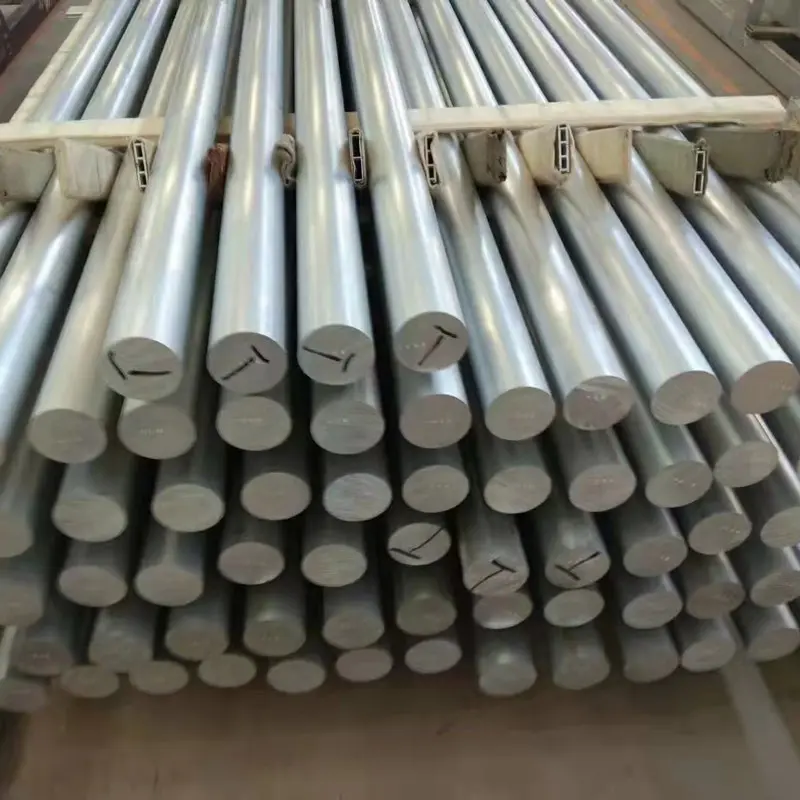

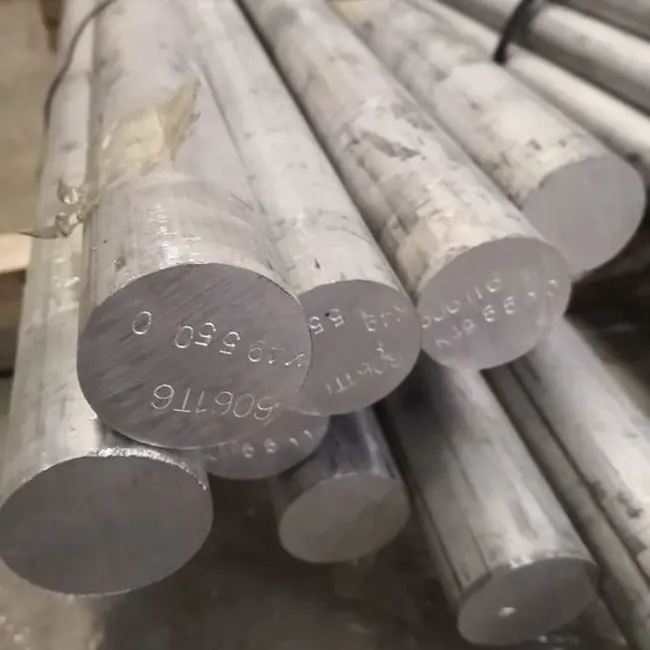

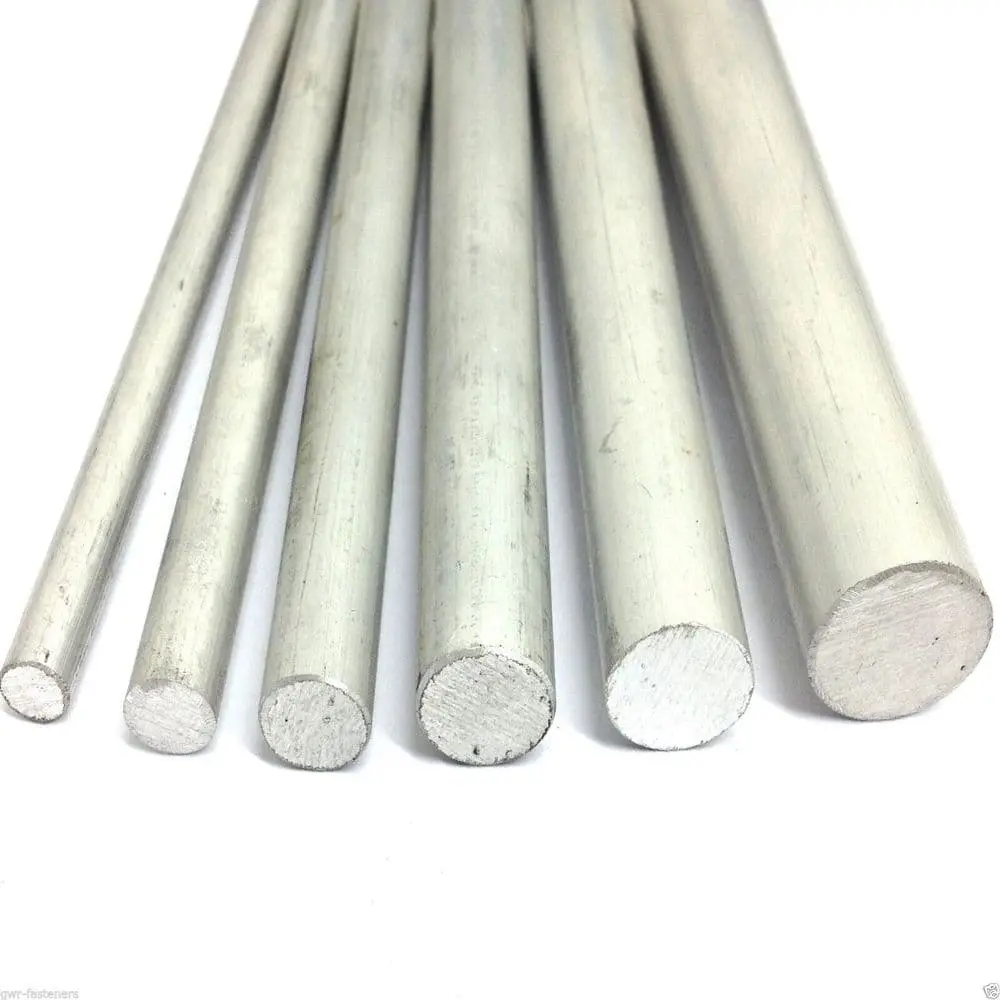

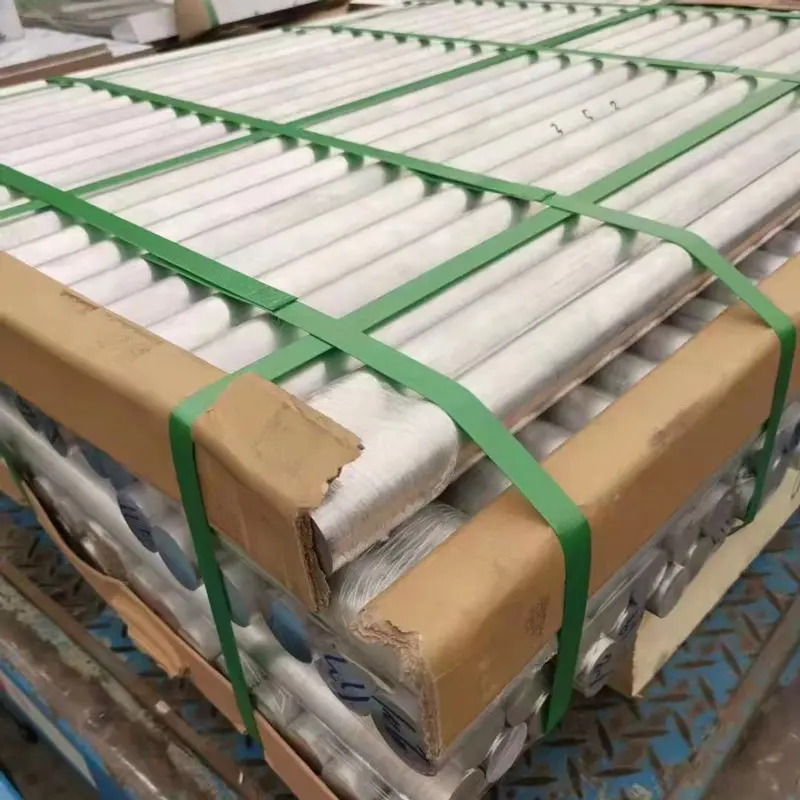

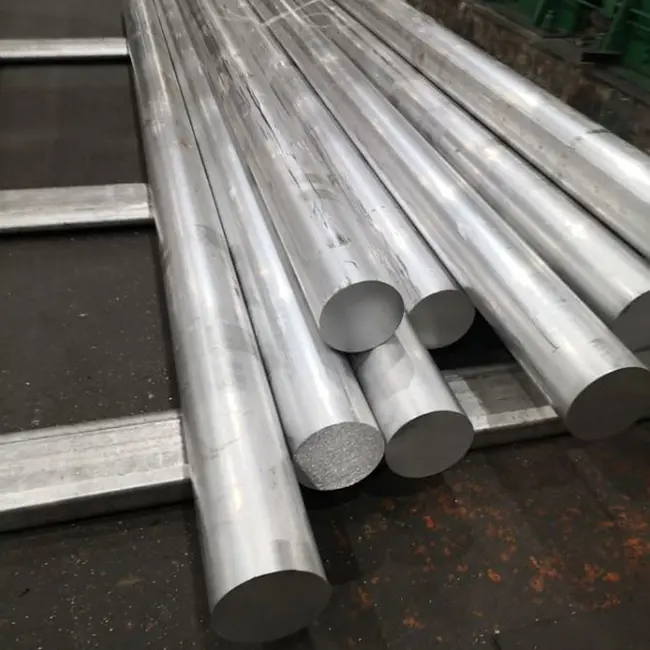

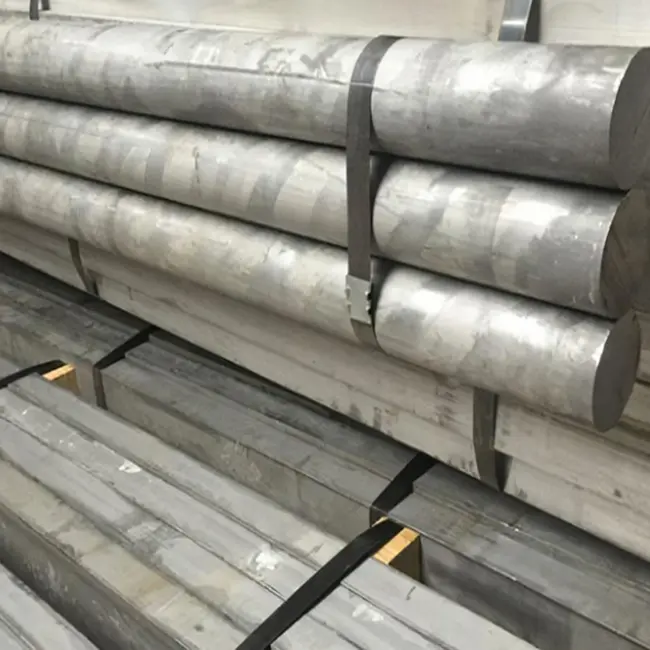

Product Display
Chemical Composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
|
3A21 |
0.60 |
0.70 |
0.20 |
1.0-1.6 |
0.05 |
- |
0.15 |
0.1-0.2 |
- |
- |
Margin |
Mechanical Properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Hardness HB | Elongation Rate (%) |
| 89.6 | 34 | 23 | 15-28 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
| 2.71 Kg/m³ | 643-675.2 °C | 68.9 GPa | 222 W/m.K |
Annealing State
|
Brand |
Annealing State |
|
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
|
3xxx: 3003, 3004, 3005, 3105 |
|
|
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
|
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
|
2xxx: 2024 |
T3, T351, T4 |
|
7xxx: 7075 |
T6, T651 |
Scope of Application
|
Aluminum Uses And Application Area |
|
|
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
|
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
|
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
|
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
|
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
|
Other |
Military, color coated aluminum plate |
