Durable 5005 Aluminum Bar for Structures
specification
| Product Name | 5005 Aluminum Bar |
| Width | Up to 300mm |
| Length | Up to 4000mm |
| Temper | O-H112 /T3-T8 /T351-T651 /T351-T851 |
| Material | 1050,1060,1065,1070,1070A,1080,1080A,1085,1100,1200,1230,1235,1260,1185,1285,1385 2004,2011,2014,2014A,2017,2017A,2214,2117,2218,2618,2618A,2219,2519,2024,2524 3002,3102,3103,3003,3103,3103A,3203,3004,3004A,3005,3006,3007,3107 5005,5052,5083 6082,6061,6063 7050,7071,7075 8011,8082 |
| Surface | Mill polished,Oiled,Hair line,Brush,Mirror,Sand blast, or customized |
| Packing | Export standard wooden pallets (as per requirements) |
| Payment Terms | 30% T/T in advance as deposit,70% balance against the B/L copy or L/C at sight |
| Minimum Order Quantity | 1 tons per size |
| Delivery time | 3-15 days after received L/C or deposit |

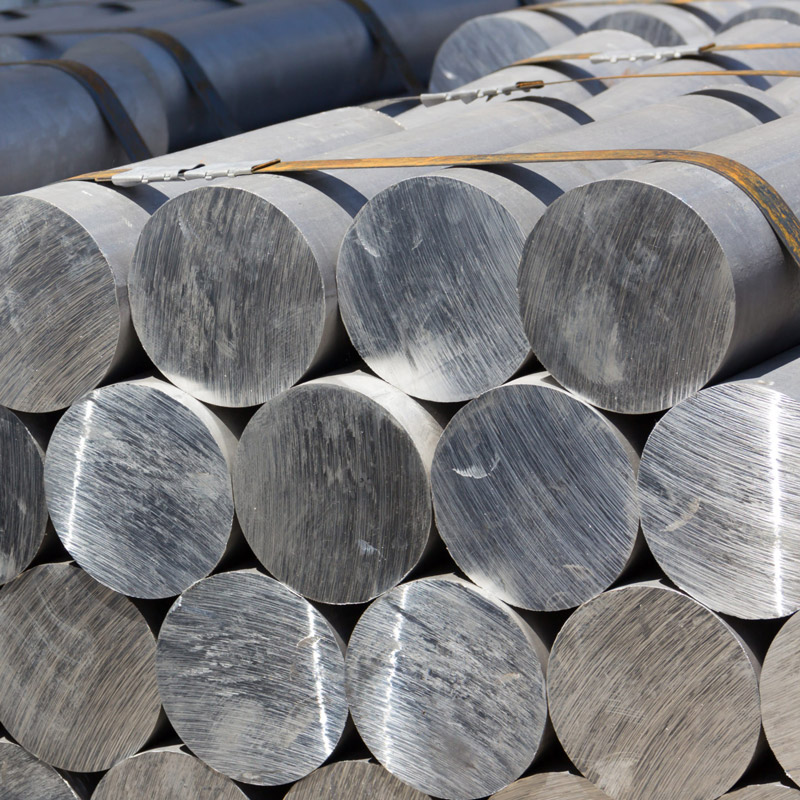

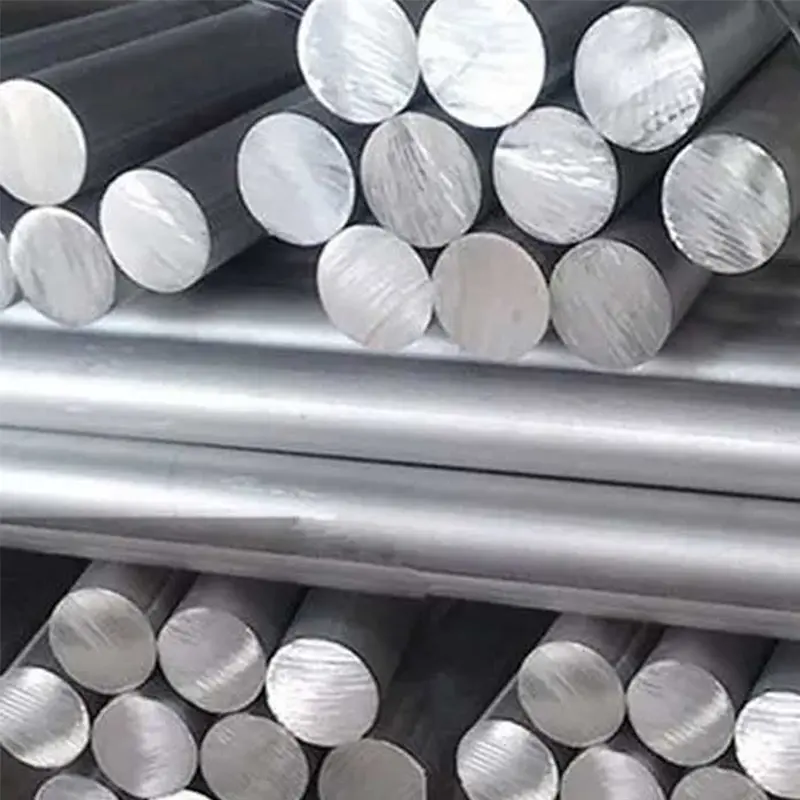

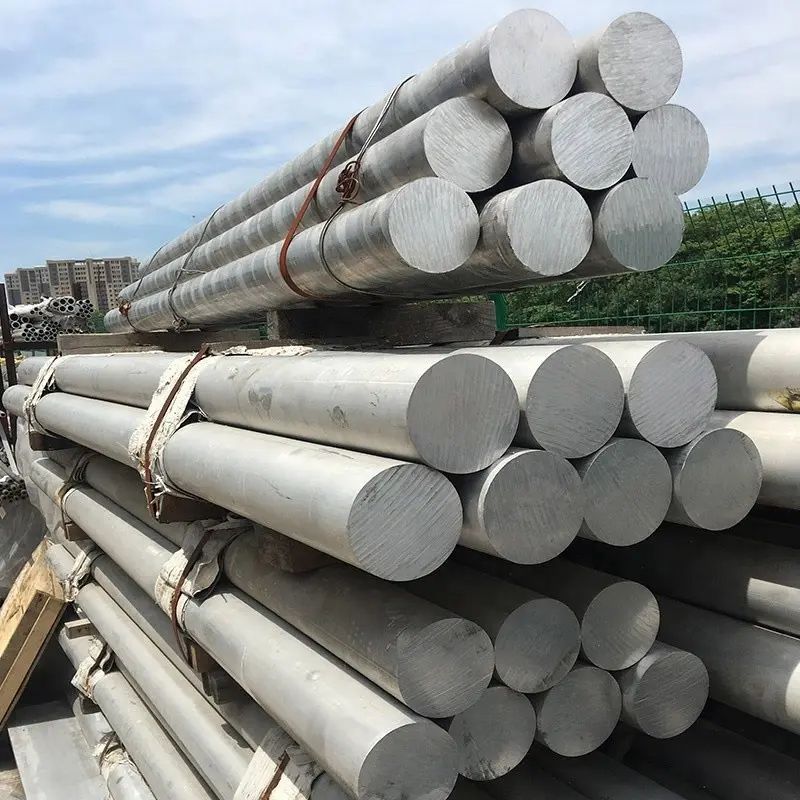

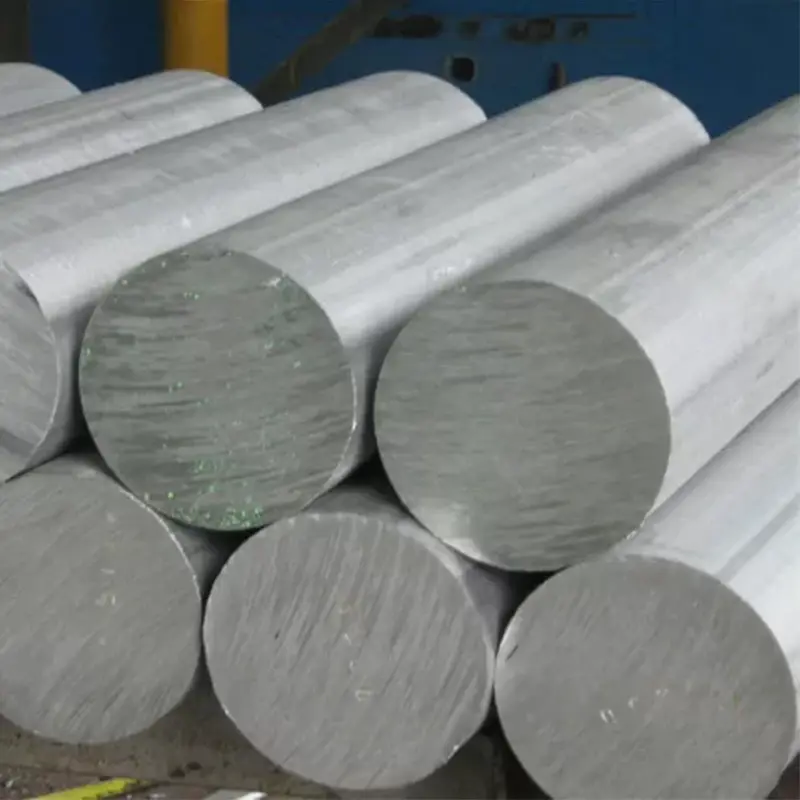

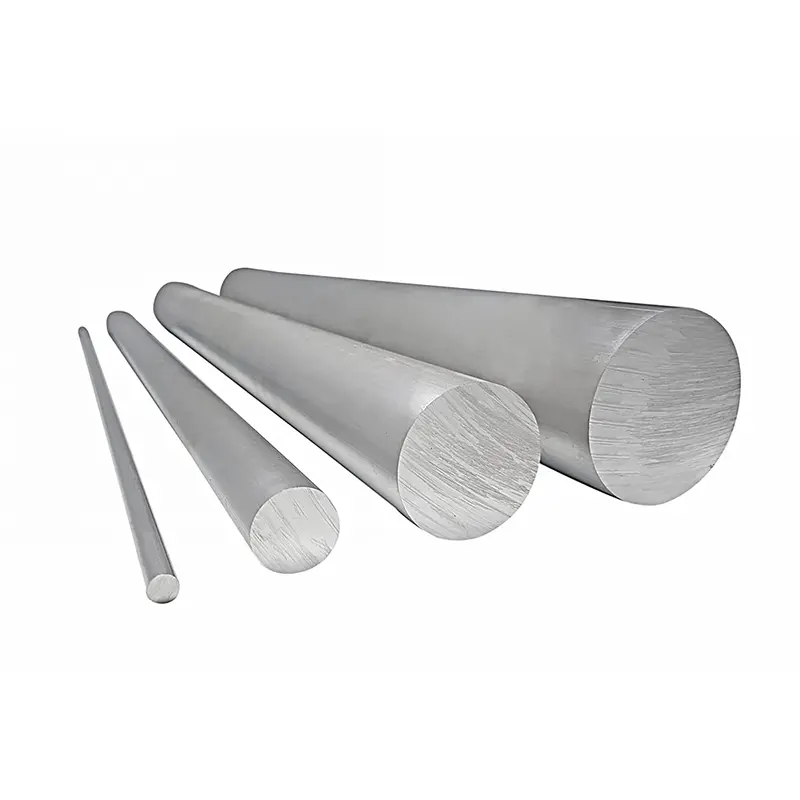

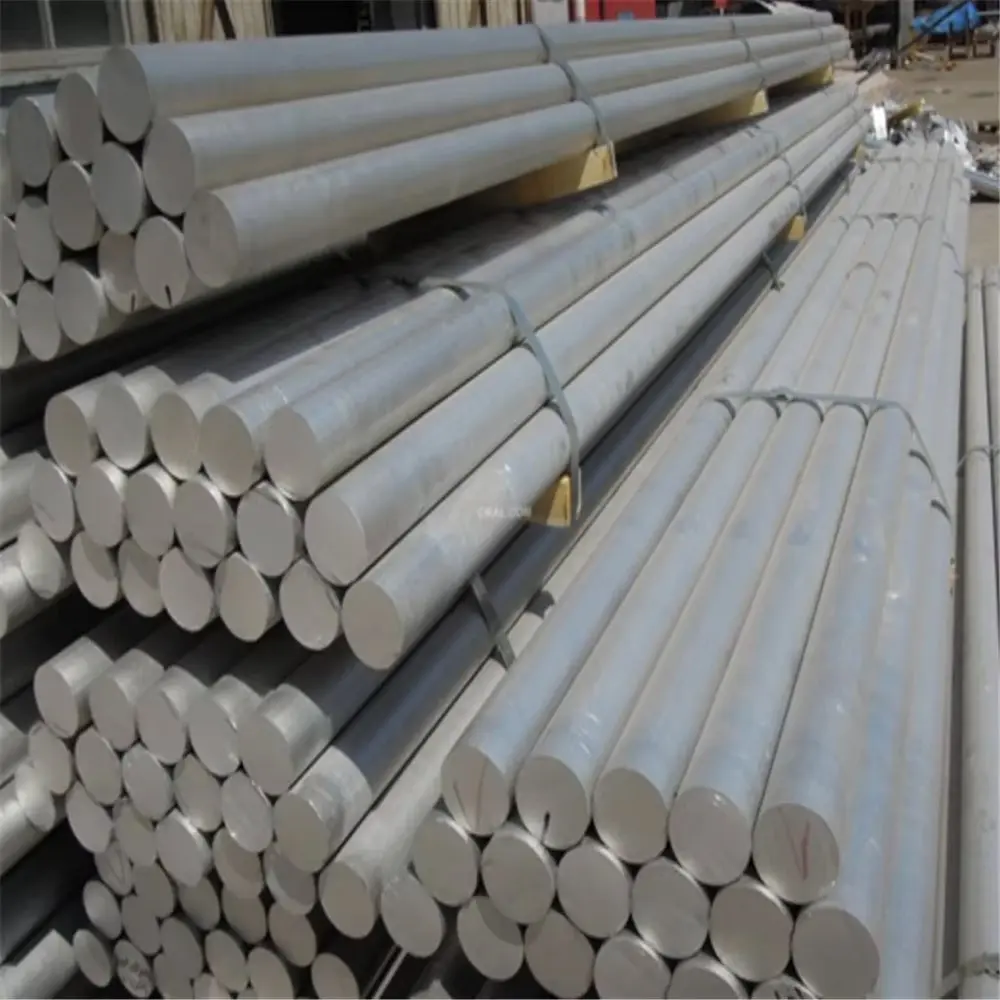

Product Display
Chemical Composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
|
3A21 |
0.60 |
0.70 |
0.20 |
1.0-1.6 |
0.05 |
- |
0.15 |
0.1-0.2 |
- |
- |
Margin |
Mechanical Properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Hardness HB | Elongation Rate (%) |
| 89.6 | 34 | 23 | 15-28 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
| 2.71 Kg/m³ | 643-675.2 °C | 68.9 GPa | 222 W/m.K |
Annealing State
|
Brand |
Annealing State |
|
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
|
3xxx: 3003, 3004, 3005, 3105 |
|
|
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
|
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
|
2xxx: 2024 |
T3, T351, T4 |
|
7xxx: 7075 |
T6, T651 |
Scope of Application
|
Aluminum Uses And Application Area |
|
|
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
|
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
|
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
|
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
|
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
|
Other |
Military, color coated aluminum plate |
