Durable Inconel 718 bar for high - temp use
specification
| Product Name | Inconel 718 Bar | |
| Standard | ASTM,JIS,DIN,GB,AISI,DIN,EN | |
|
Outer Diameter |
Round Bar |
4mm-200mm |
| Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
| Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
| Flat Steel | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized | |
| Length | 1-6 meters, Length can be customized | |
| Error | ±1% | |
| Certification | ISO 9001 ，CE，API | |
| Surface treatment | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc. | |
| Production Technology | Hot Rolling, Cold Rolling | |
| Country of origin | China | |
| Main Applications | Mechanical engineering, automotive industry, aerospace, construction engineering, oil and gas industry, energy industry, mold manufacturing | |
| Package | Bundling, wooden box packaging, pallet packaging, plastic film packaging, anti-rust oil coating, container transportation | |
| Payment Term | TT, LC,Cash, Paypal, DP, DA,Western Union or Others. | |
| After-sales service | 1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection | |

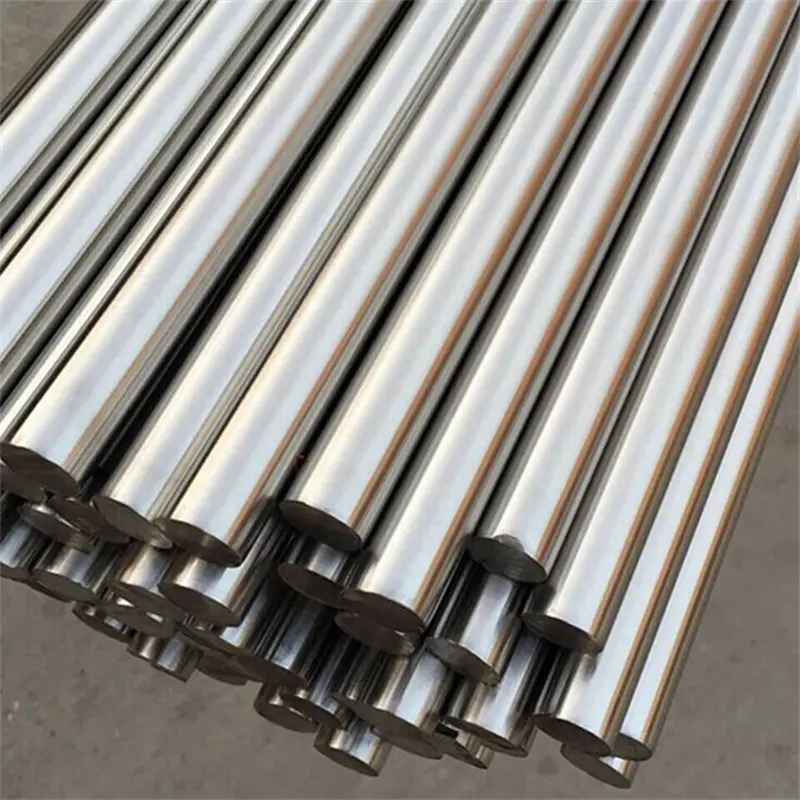

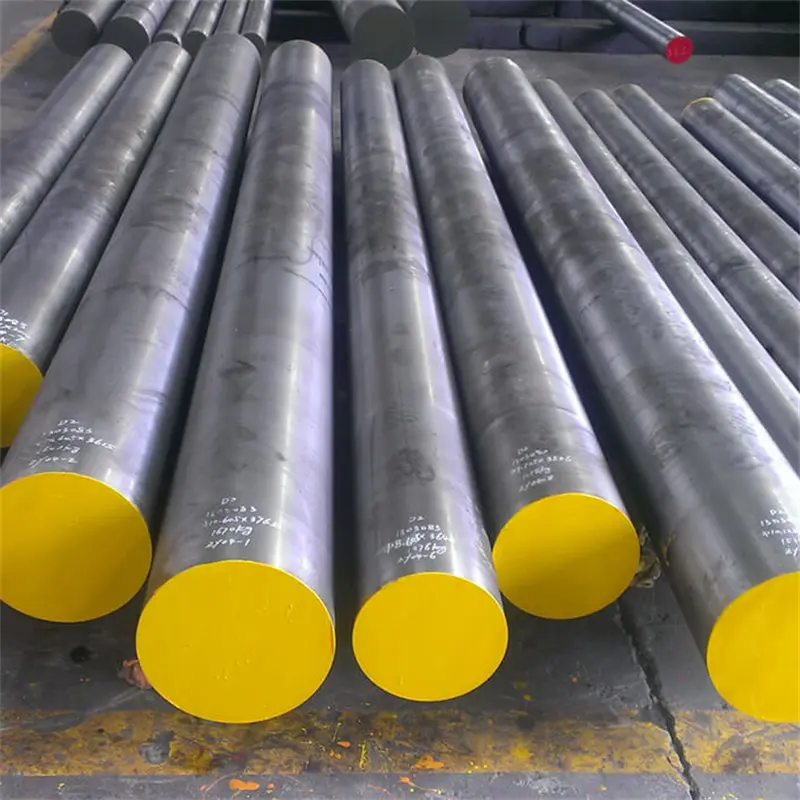

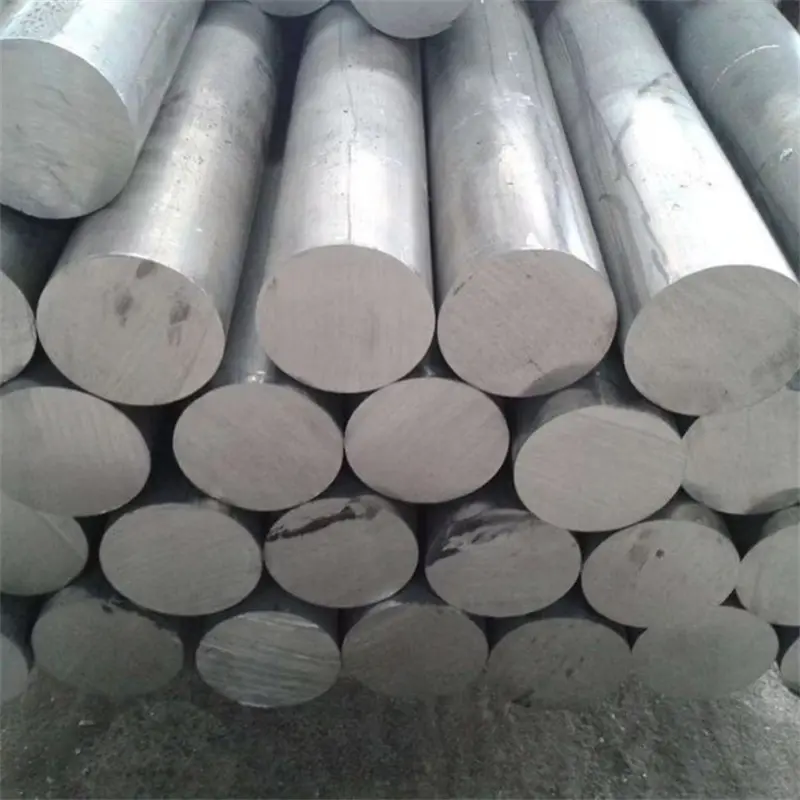

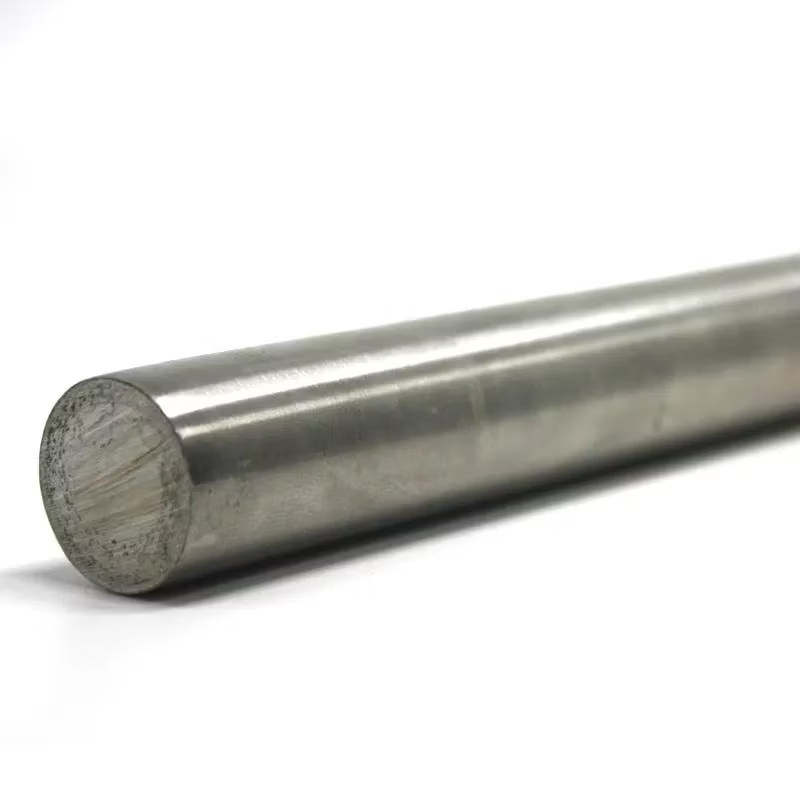

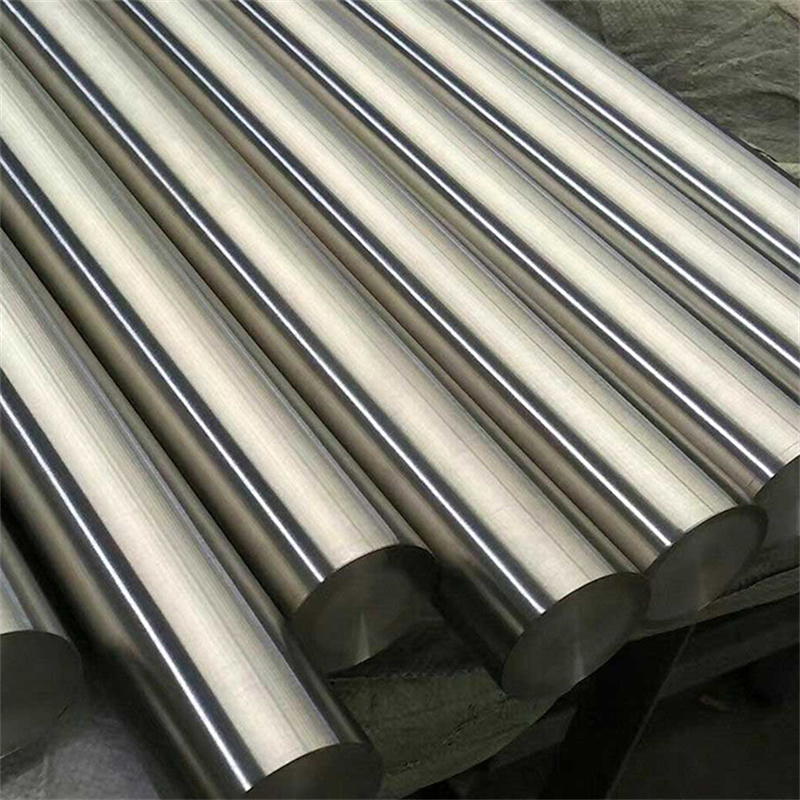

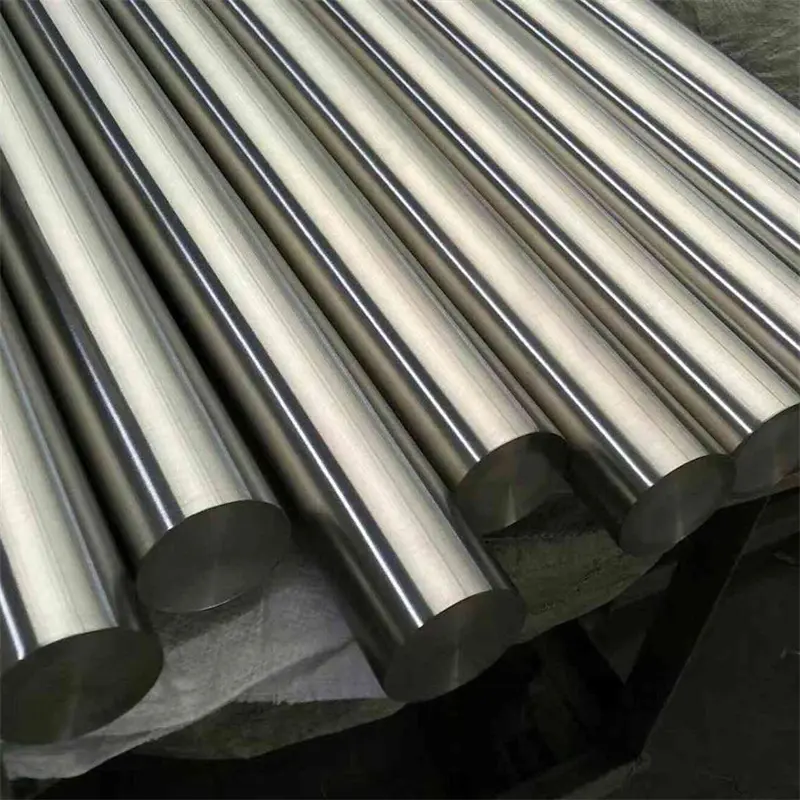

Product Display
Chemical Composition
| B | C | Al | Si | P | S | Ti | Cr | Mn | Fe | Co | Ni | Cu | Mo | Cb (Nb Ta) |
| 0.006 max | 0.08 max | 0.20-0.80 | 0.35 max | 0.015 max | 0.015 max | 0.65-1.15 | 17.00-21.00 | 0.35 max | Remainder | 1.0 max | 50.00 - 55.00 | 0.30 max | 2.80 - 3.30 | 4.75 - 5.50 |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
|
180 |
150 |
12 |
Physical Performance
| Units | Temperature in°C | |
|
Density |
8.19 g/cm³ |
Room |
|
Specific Heat |
0.104 Kcal/kg.C |
21° |
|
Melting Range |
1260-1366°C |
- |
|
Modulus of Elasticity |
199.9 KN/mm² |
21° |
|
Electrical Resistivity |
125 µΩ.cm |
Room |
|
Coefficient of Expansion |
13.0 µm/m °C |
20 - 100° |
| Thermal Conductivity | 9.8 w/m-° K | 21° |
