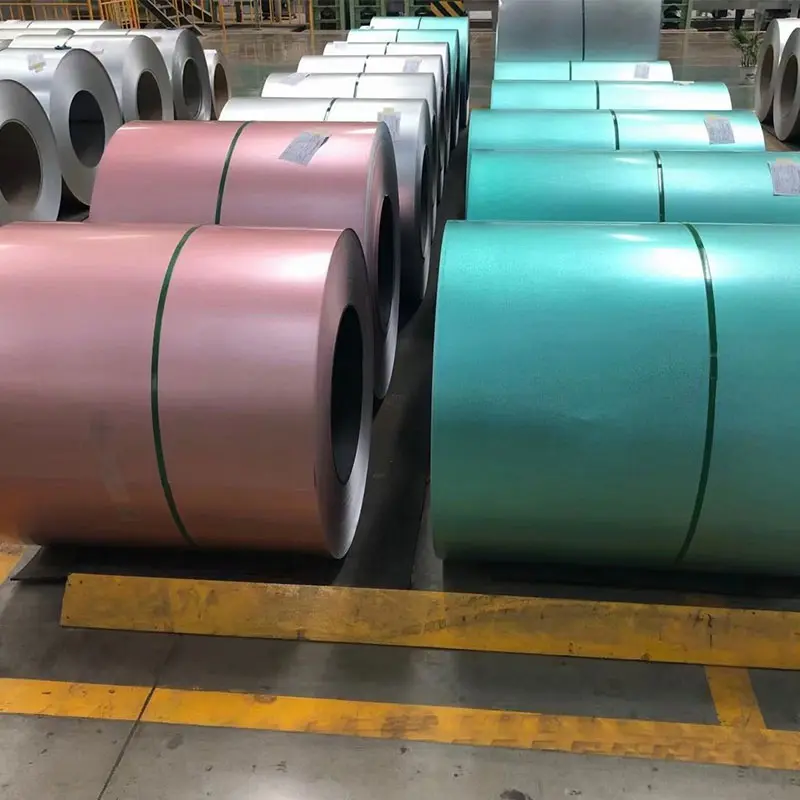

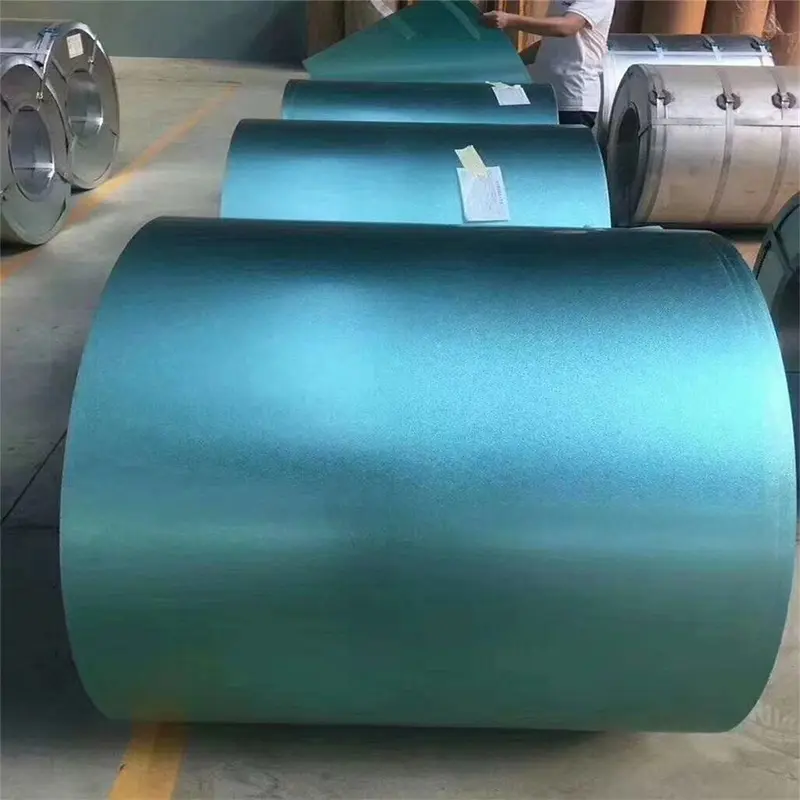

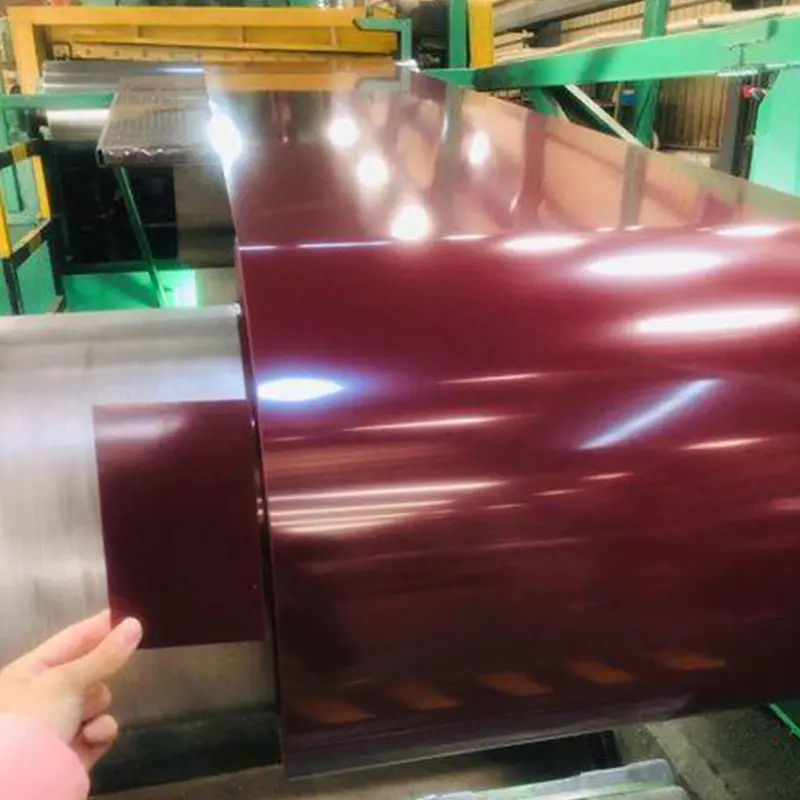

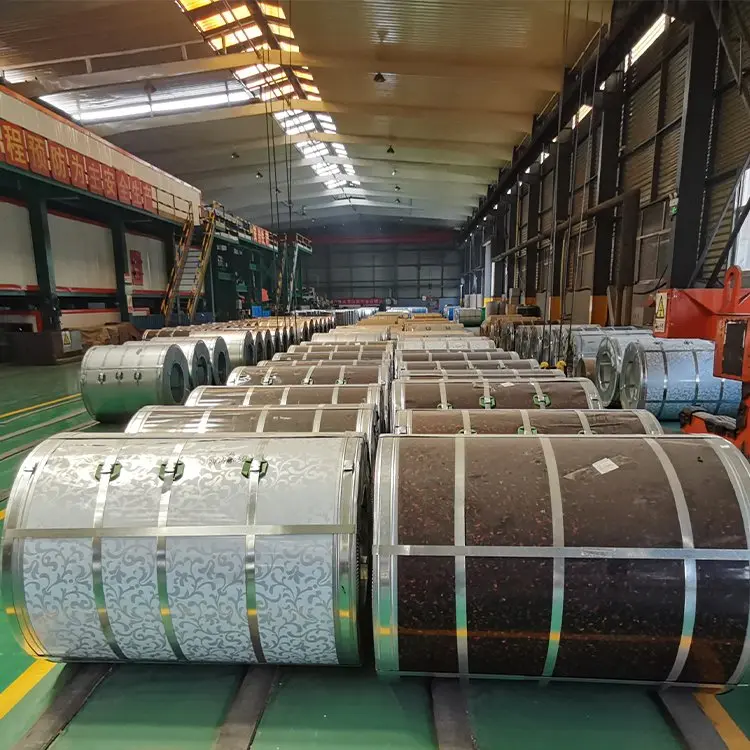

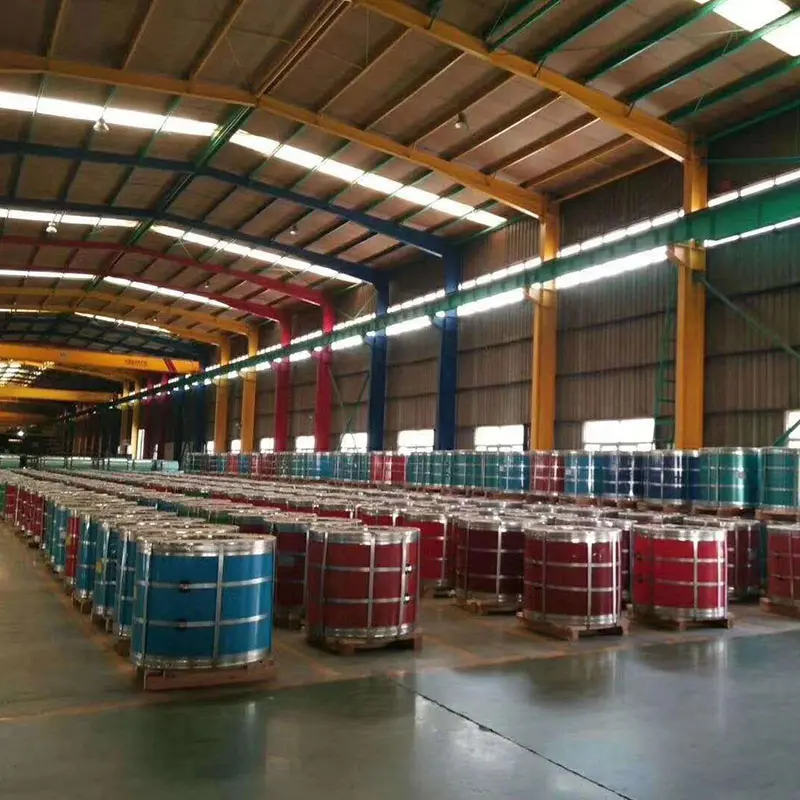

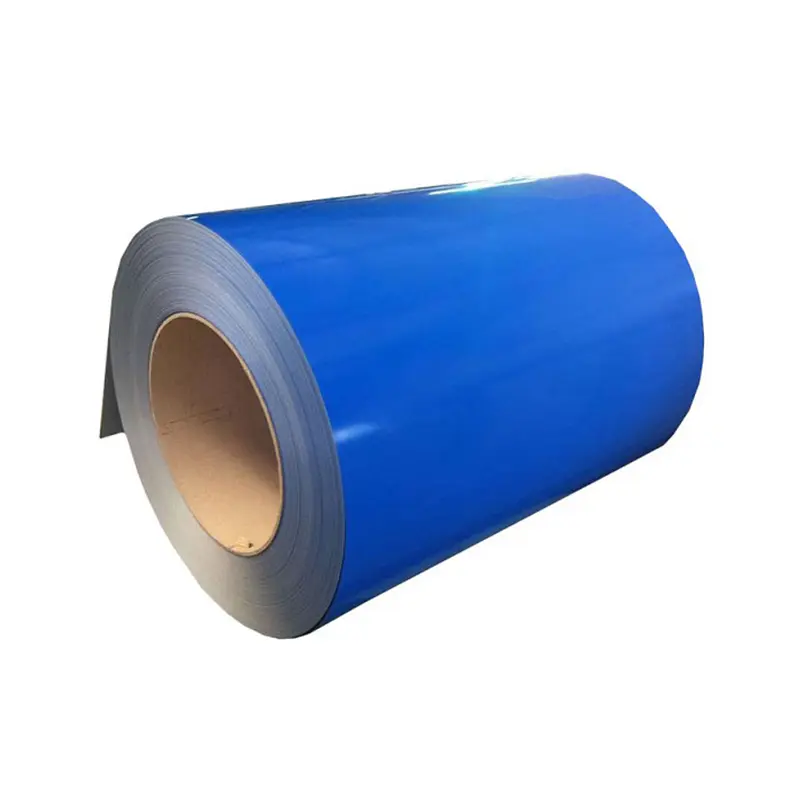

Enter PPGI (Pre-Painted Galvanized Iron)

PPGI is manufactured using advanced technology that ensures a uniform coating of paint, which not only enhances the steel's durability but also offers a wide range of colors and finishes to suit any design requirement. This versatility makes PPGI an ideal choice for various applications, including roofing, wall cladding, and interior design elements. Whether you are looking to create a modern aesthetic or a classic look, PPGI can meet your needs with ease.

product details

specification

Product Name	PPGI (Pre-Painted Galvanized Iron)
Base Material	Galvanized / Galvalume
Thickness	0.12~1.2 mm
Width	600 mm~1250 mm
Coil ID	508mm/610mm
Coating	top coating 15+5um, back paint 7+3um, or customized
Coil Weight	Coil Weight
MOQ	1 Ton
Colors	RAL Colors or as sample
Material	SGCC, DX51D, SGCH
Technique	Cold Rolled/Hot Rolled
Surface treatment	Top paint: FVDF, HDP, SMP, PE, PUPrime paint: polyurethane, epoxy, PEBack paint: epoxy, modified polyester
Standard	ASTM, JIS, EN
Certificate	ISO, CE
Package	Tied up with steel strips and wrapped with water proof paper
Loading port	Qingdao, China
Payment terms	30% T/T deposit in advance, 70% T/T balance within 5 days after B/L copy,
Delivery times	Delivered within 30 days after the receipt of deposit
Application	Widely used in roofing sheet, window-shades, car ceiling, the shell of the car, air conditioner, outer shell of water machine,steel structure etc

Product Display

Product Specification and Size

PPGI / PPGL / PPGF

Product Type	Pre-Painted Hot-Dip Galvanized Steel Coil (PPGI)	Pre-Painted Hop-Dip 5% Al-Zn Coated Steel Coil (PPGF)	Pre-Painted Hop-Dip 55% Al-Zn Coated Steel Coil (PPGL)	Pre-Painted Embossed Steel Coil
Coating Types	1. Polyester (PE) 2. Silicone Modified Polyester (SMP) 3. Acrylic 4. Polyvinylidene Difluoride (PVDF)			PVC Plastisol
Specifications	CNS 10804 (2013) CNS 15298 (2013) CNS 15299 (2013) JIS G3312 (2013) CGCC CGCD1~3 CGC340 CGC400 CGC440 CGC490 CGC570 JIS G3318 (2013) CZACC CZACH CZACD1 CZAC340 CZAC400 CZAC440 CZAC490 CZAC570 JIS G3322 (2013) CGLCC CGLCD CGLC400 CGLC440 CGLC490 CGLC570 ASTM A755M (2016) AS 2728 (2013) EN 10169+A1 (2010)			JIS K6744 (2007) SG SA ASTM A755M (2016) EN 10169+A1 (2010)
Coating Types	Primer: PU or Epoxy 5μm Topcoat: 15-20μm Back Primer: PU or Epoxy 2μm Back Coat: PE or Epoxy 5-12μm			Primer: Epoxy Topcoat: PVC PLASTISOL 150- 250μm Back Primer: PU or Epoxy 2μm Back Coat: PVC PLASTISOL 100 - 250μm or Epoxy 7μm
Surface Treatment	Protective film can be applied Metal Embossed Cedar wood Stucco Leather			PVC Embossed Leather Lichee
Remarks	1. The ASTM standards presented here adopt the equivalent metric system. (The imperial system deletes the “M" after their specification number, such as A755 and A792.) 2. Coating thickness is for reference only.

Available Size

Name	Thickness	Width
Pre-painted Hot-dip Galvanized Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 5% Al-Zn Coated Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 55% Al-Zn Coated Steel Coil	0.2~1.38mm	600~1250mm
