High - grade 410 SS, good for uses
specification
|
Product name: |
410 stainless steel bar |
|
Standard: |
ASTM, AISI, JIS, GB, DIN, EN |
|
Certification: |
ISO, SGS, BV |
|
Place of Origin: |
Jiangsu, China |
|
Specifications |
Round Bar: Diameter:0.1~500mm |
|
Hexagonal Bar: Size: 2mm~100mm |
|
|
Flat Bar: Thickness:0.3~200mm Width:1~2500mm |
|
|
Square Bar: Size:1mm*1mm~800mm*800mm |
|
|
Angle Bar: Thickness:4.0mm-8.0mm Width:100*100mm-200*200mm |
|
|
Grade |
200/300/400/500/600/900(series) |
|
Material |
201, 202, 304, 304L, 304H, 310S, 316, 316L, 316Ti, 321, 330, 347H, 409L, 410, 410S, 416, 430, 630, 660, 2Cr13, 3Cr13 etc |
|
Surface: |
BA, 2B, NO.1, NO.4, 4K, HL, 8K Hairline, Embossed, Etched, Vibration, PVD Color Coated, Titanium, Sand Blasted, Anti-fingerprint |
|
MOQ: |
1 Ton |
|
Price Term |
CIF CFR CNF FOB EX-WORKPayment Terms |
|
Payment Terms |
T/T L/C and Western Union etc |
|
Delivery Time |
7-15 days or according to the order's quantity |
|
Package |
Standard export seaworthy package,suit for all kinds of transport, or as required. Water-proof Paper + Edge protection + Wooden Pallets |
|
Container Size |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) |

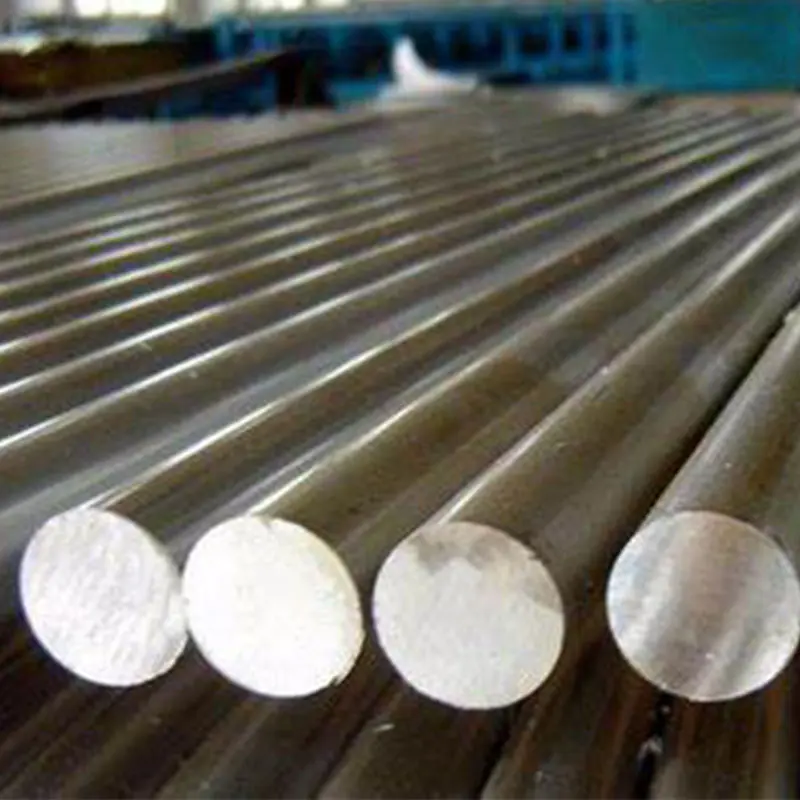

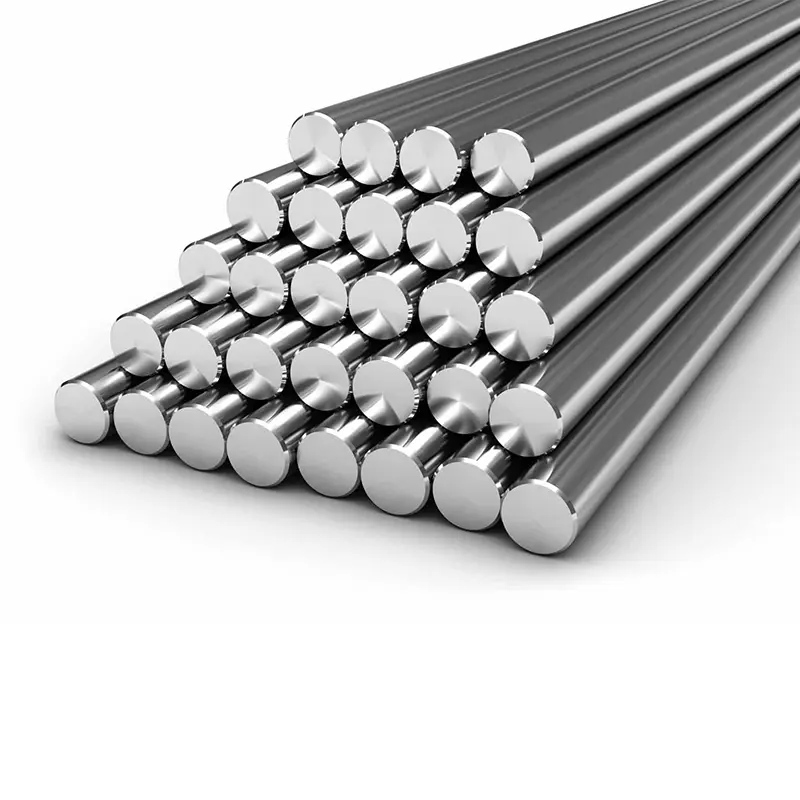

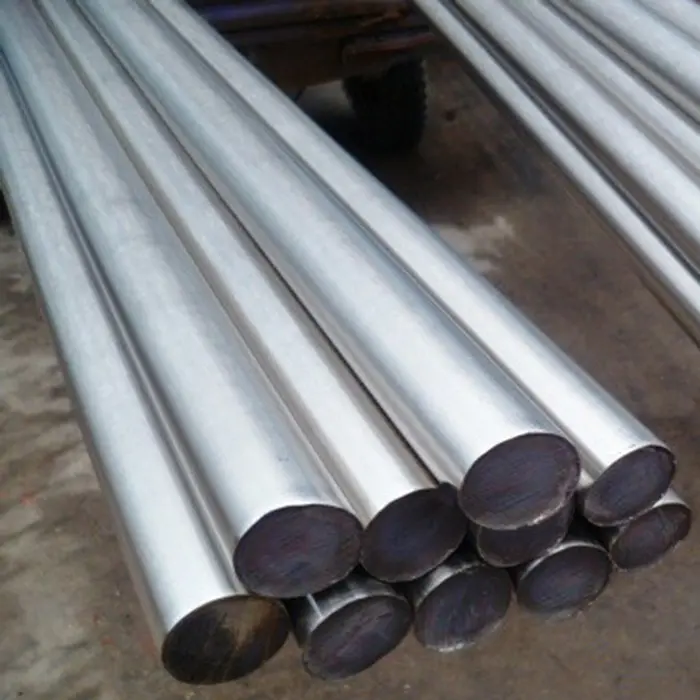

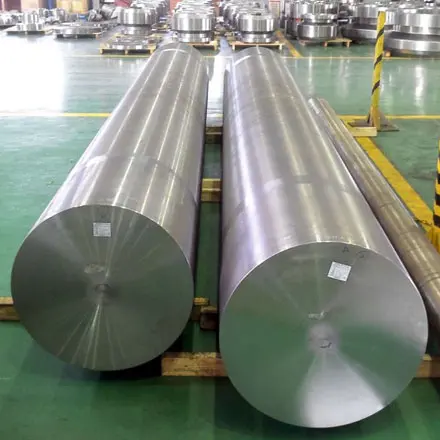

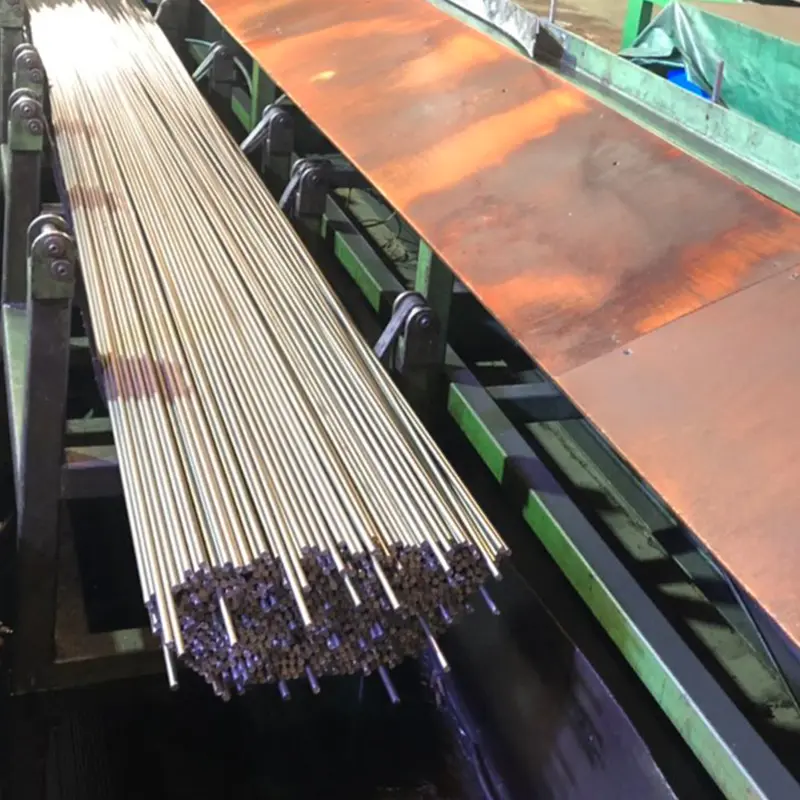

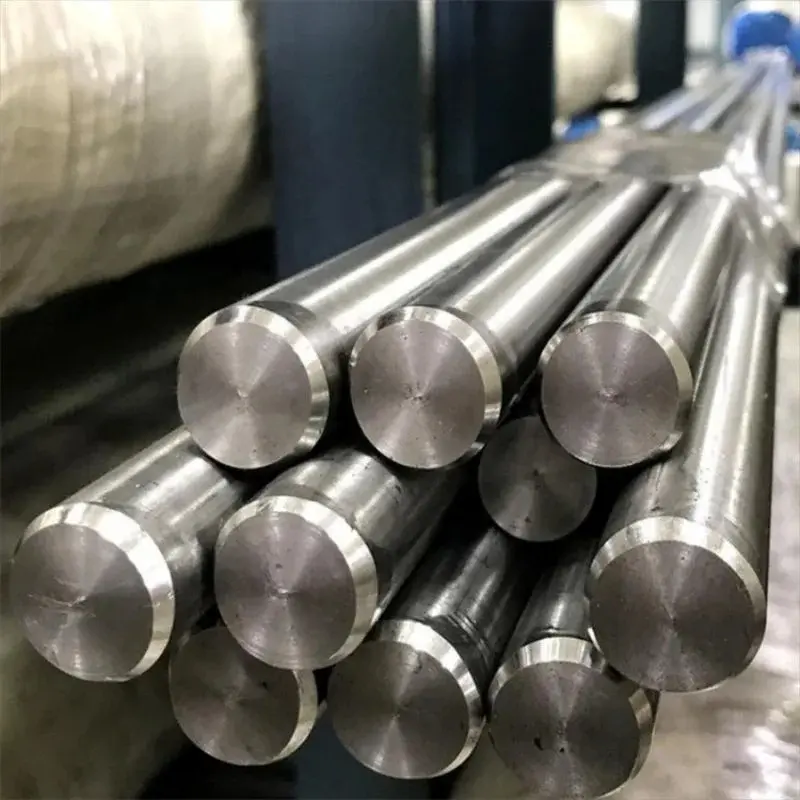

Product Display
Chemical Composition
|
C |
Si |
Mn |
Cr |
Ni |
S |
P |
|
≤ 0.15 |
≤ 1.0 |
≤ 1.0 |
11.5~13.5 |
≤ 0.5 |
≤ 0.03 |
≤ 0.04 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Yield Strength σ0.2 (MPa) |
Elongation D5 (%) |
Hardness |
|
≥450 |
≥205 |
≥20 |
≤ 201HB |
Physical Performance
|
Density(g/cm³) |
Modulus of Elasticity(Gpa) |
Coefficient of Thermal Expansion(10-6/°C) |
Coefficient of Thermal Conductivity(W/m*K) |
Resistivity(ΜΩ. cm) |
|
7.74 |
200 |
9.9 |
24.9 |
570 |
