High - grade carbon H - beam, structural strength
specification
|
Product Name |
Carbon Steel H-Beam |
|
Material |
A36, St37, S235J0, S235J2, St52, S355JR, Q195, Q215, Q235B, Q345B, S235JR, S355JR, S355, SS440, SM400A, SM400B, A572 GR50/GR60, SS540 |
|
Scope of Production |
H100*100-H400*400, H150*75 -H900*300 |
|
Length |
6m, 9m, 12m or acording to customer requirements |
|
Technology |
Hot Rolled, Welded |
|
Standard |
ASTM, AISI, JIS, GB, DIN, EN |
|
Surface |
Galvanized, Painted or according to your requirements |
|
Supply Capacity |
2000 tons/Day |
|
Business Type |
Manufacturer |
|
Certificate |
ISO, SGS, BV |
|
Application |
Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc. |
|
Loading Port |
Any port in China |
|
Packaging |
Standard export packing or as your request |
|
Payment Method |
Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal. |
|
Material |
A36, St37, S235J0, S235J2, St52, S355JR, Q195, Q215, Q235B, Q345B, S235JR, S355JR, S355, SS440, SM400A, SM400B, A572 GR50/GR60, SS540 |

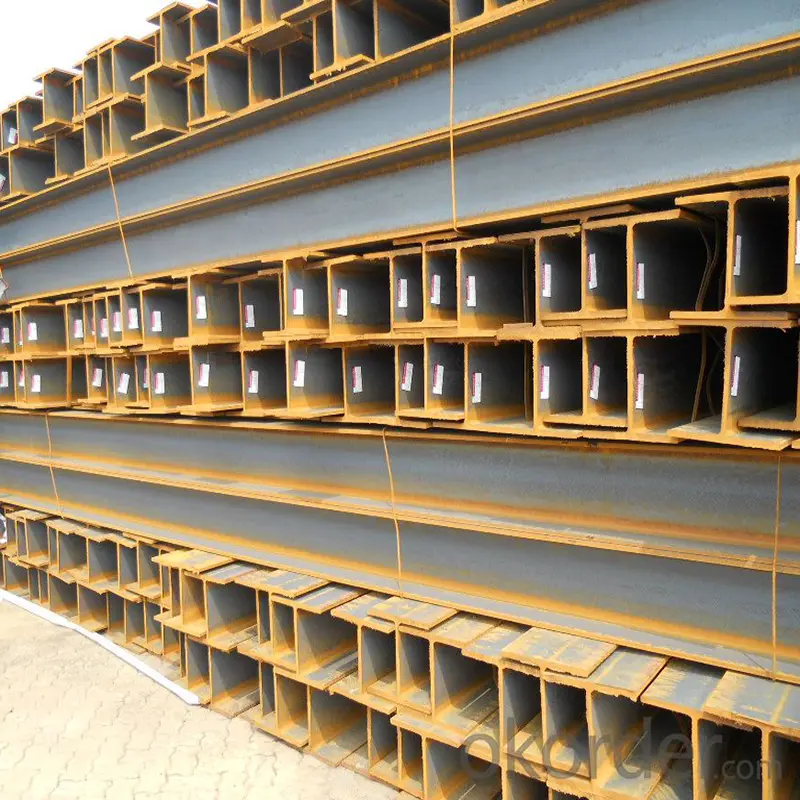

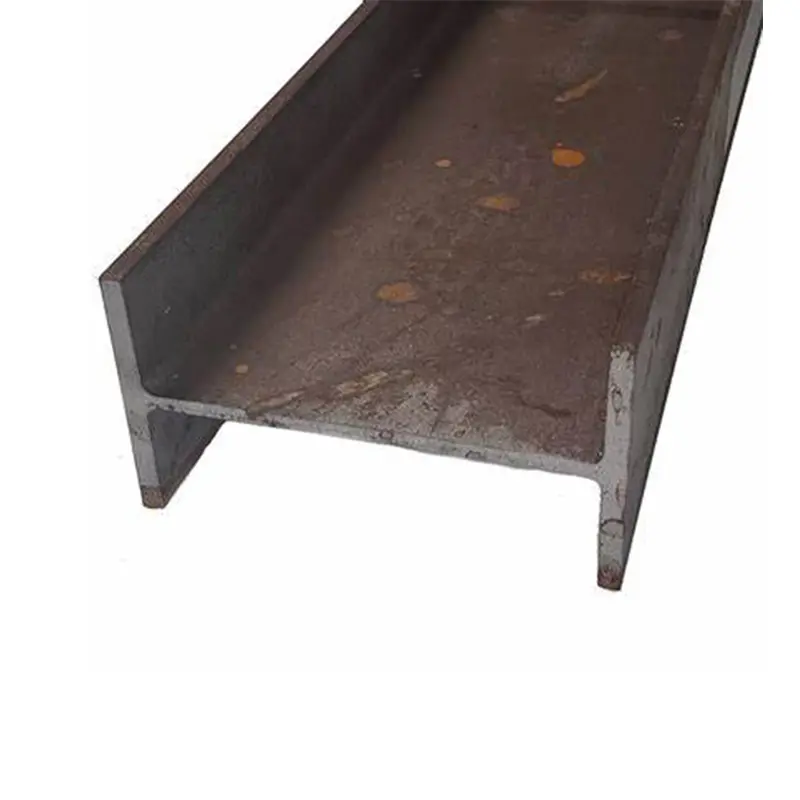

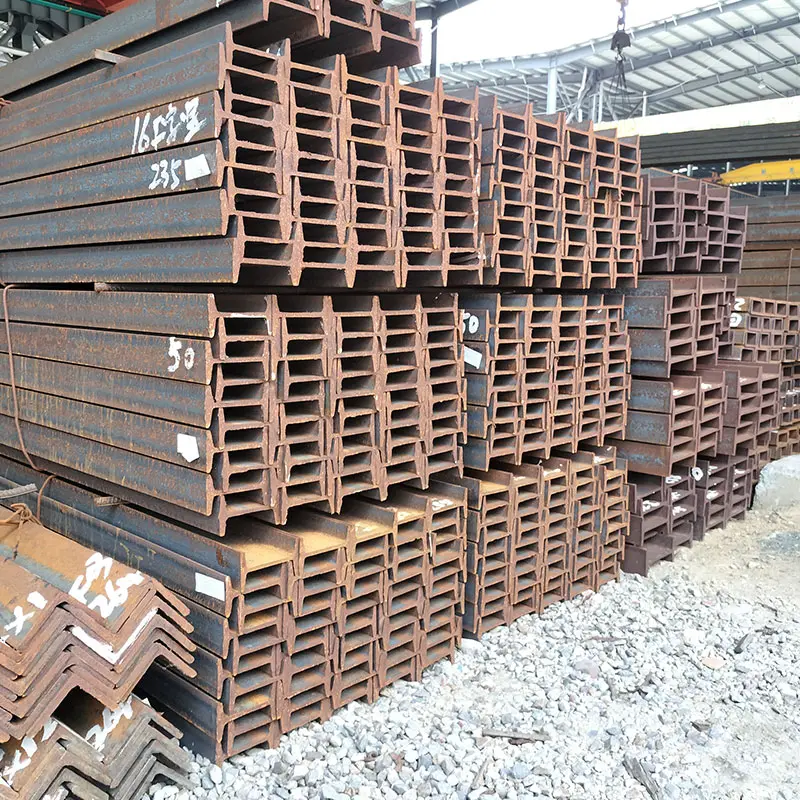

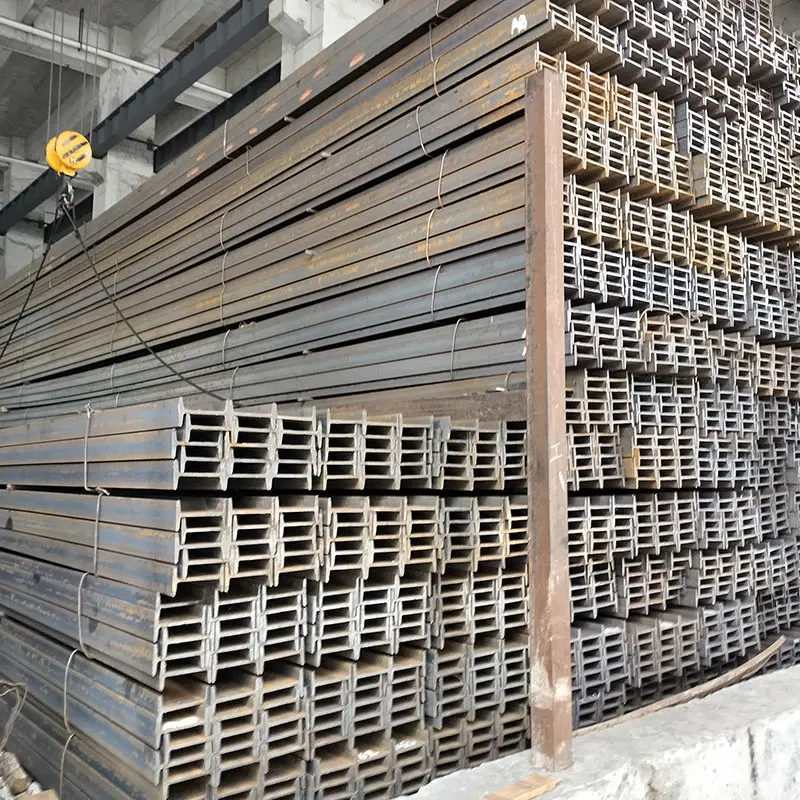

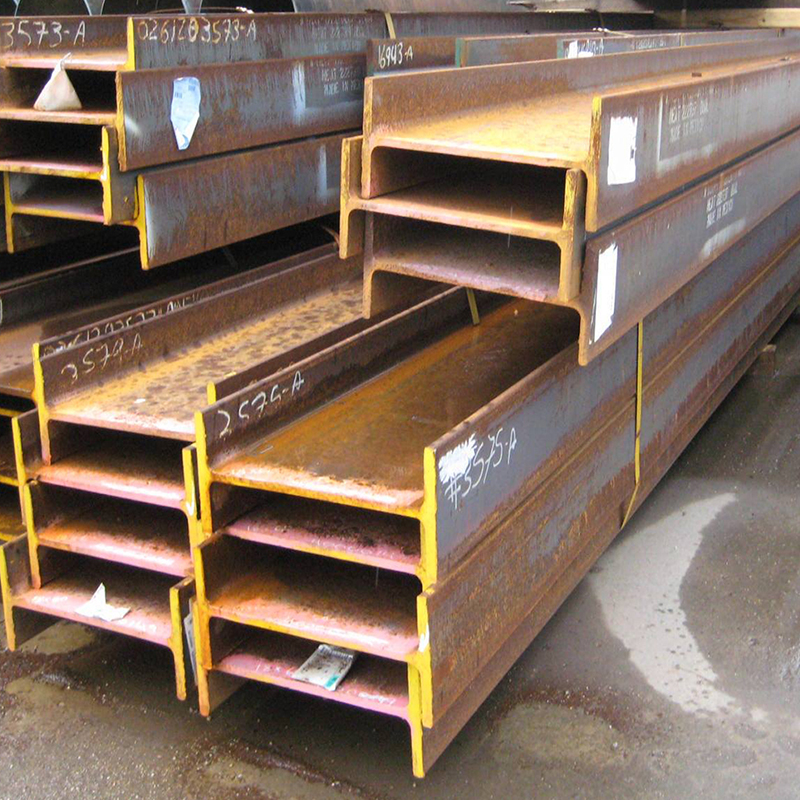

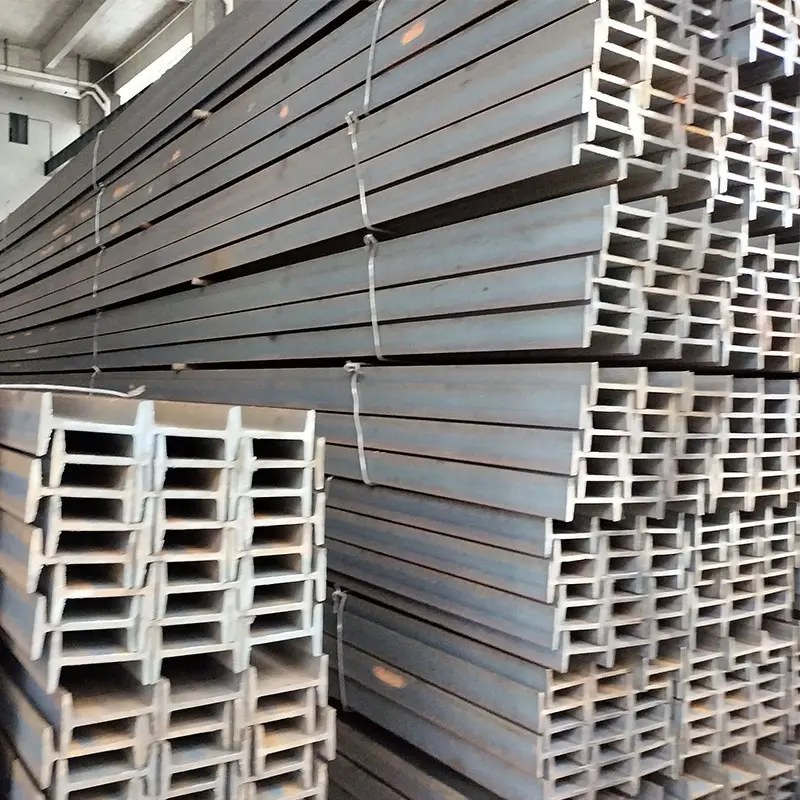

Product Display
H-beam specifications
|
category |
type |
H (mm) |
B (mm) |
Cross-section size (mm) |
Cross-sectional area (cm²) |
Theoretical weight (kg/m) |
|
HW |
100×100 |
100 |
100 |
6×8 |
21.9 |
17.2 |
|
HW |
125×125 |
125 |
125 |
6.5×9 |
30.3 |
23.8 |
|
HW |
150×150 |
150 |
150 |
7×10 |
40.55 |
31.9 |
|
HW |
200×200 |
200 |
200 |
8×12 |
64.28 |
50.5 |
|
HW |
200×204 |
200 |
204 |
12×12 |
72.28 |
56.7 |
|
HW |
250×250 |
250 |
250 |
9×14 |
92.18 |
72.4 |
|
HW |
250×255 |
250 |
255 |
14×14 |
104.7 |
82.2 |
|
HW |
300×300 |
300 |
300 |
10×15 |
120.4 |
94.5 |
|
HW |
300×305 |
300 |
305 |
15×15 |
135.4 |
106 |
|
HW |
350×350 |
350 |
350 |
12×19 |
173.9 |
137 |
|
HW |
400×400 |
400 |
400 |
13×21 |
219.5 |
172 |
|
HW |
400×408 |
400 |
408 |
21×21 |
251.5 |
197 |
|
HM |
150×100 |
150 |
100 |
6×9 |
27.25 |
21.4 |
|
HM |
200×150 |
200 |
150 |
6×9 |
39.76 |
31.2 |
|
HM |
250×175 |
250 |
175 |
7×11 |
55.24 |
44.1 |
|
HM |
300×200 |
300 |
200 |
8×12 |
73.03 |
57.3 |
|
HM |
350×250 |
350 |
250 |
9×14 |
101.5 |
79.7 |
|
HM |
400×300 |
400 |
300 |
10×16 |
130.7 |
107 |
|
HN |
100×50 |
100 |
50 |
5×7 |
12.16 |
9.54 |
|
HN |
125×62.5 |
125 |
62.5 |
6×8 |
17.01 |
13.3 |
|
HN |
150×75 |
150 |
75 |
5×7 |
18.16 |
14.3 |
|
HN |
175×90 |
175 |
90 |
5×8 |
23.21 |
18.2 |
|
HN |
200×100 |
200 |
100 |
5.5×8 |
27.57 |
21.7 |
|
HN |
250×125 |
250 |
125 |
6×9 |
37.87 |
29.7 |
|
HN |
300×150 |
300 |
150 |
6.5×9 |
47.53 |
37.3 |
|
HN |
350×175 |
350 |
175 |
7×11 |
63.55 |
50 |
