High - quality 5005 aluminum alloy coil
specification
| Product Name | 5005 Aluminum Coil |
| Surface | Mill finish, no stains, without rough selvedge,Anodizing |
| Grade | 1100/1050/1060/1070/1080/1200/1350 |
| 3003/3004/3104/3005/3105 | |
| 2014/2017A/2024/2A12/2A14/2A50/2219 | |
| 5005/5006/5042/5052/5083/5086/5182/5251/5454/5754 | |
| 6061/6082/6063/6K61/6Z61 | |
| 7A04/7049/7050/7072/7075 | |
| 4032/8011 | |
| Temper | HO,H12,H14,H16,H18,H19,H22,H24,H26,H28,F,H112,T651,T3,T451,T4,T6,ect. |
| Width | 3mm-1500mm |
| Package | Export wooden pallets, craft paper. |
| Application | Building,Boat,Truck,Tanker,Machine |
| Quality of material | Totally free film defects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |

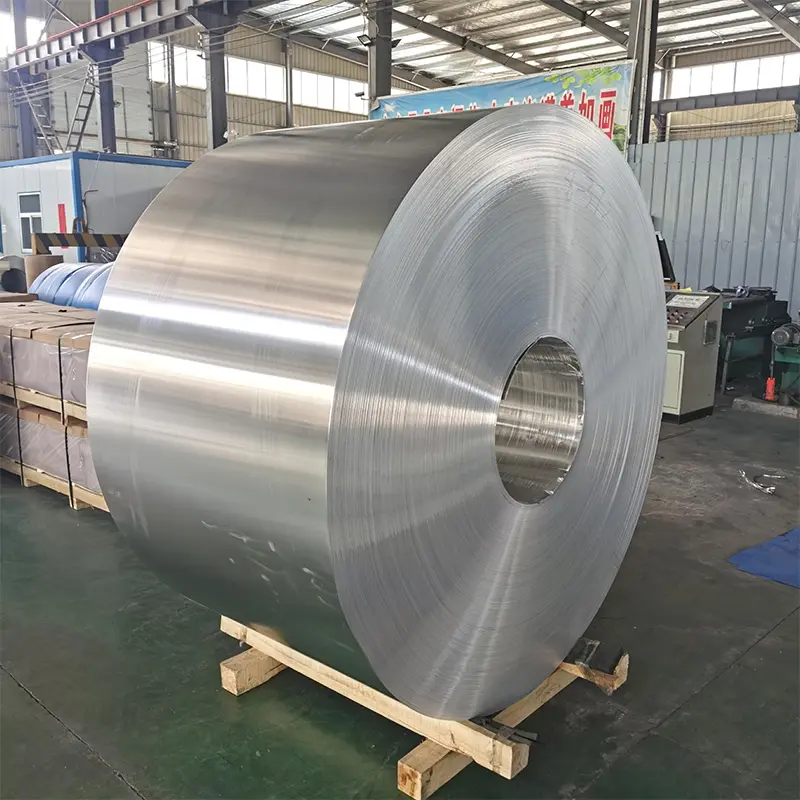

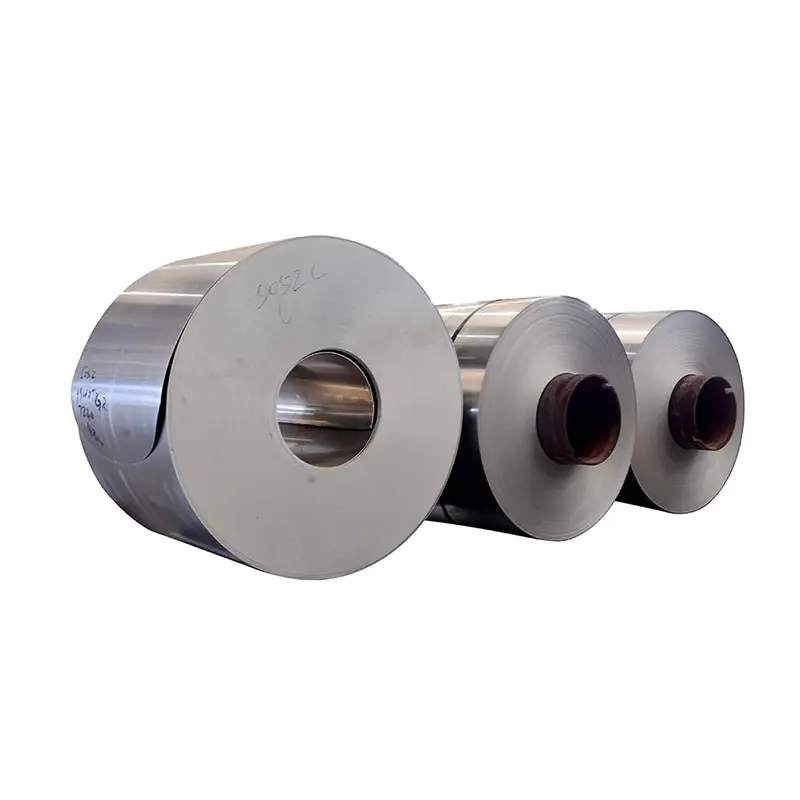

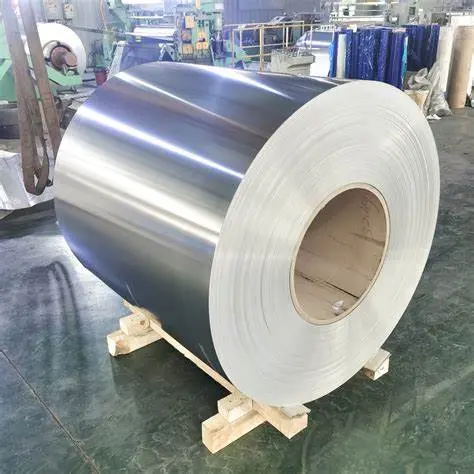

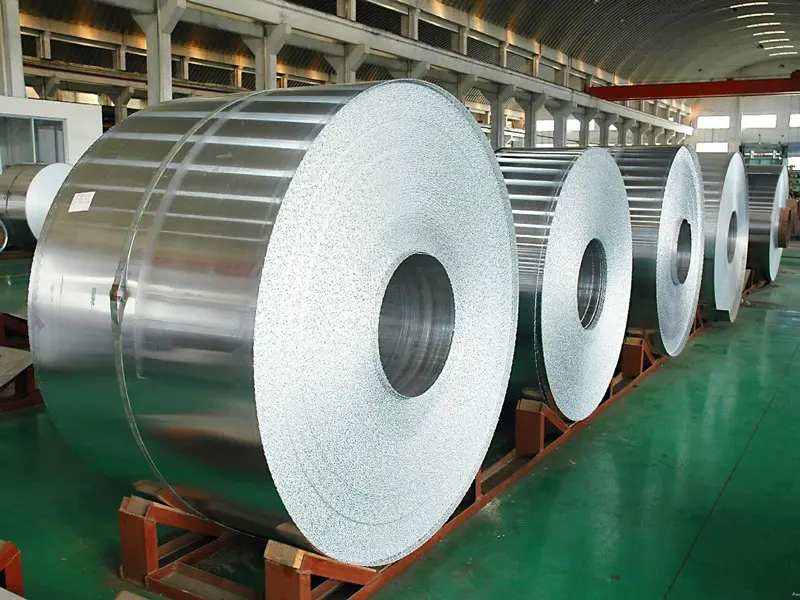

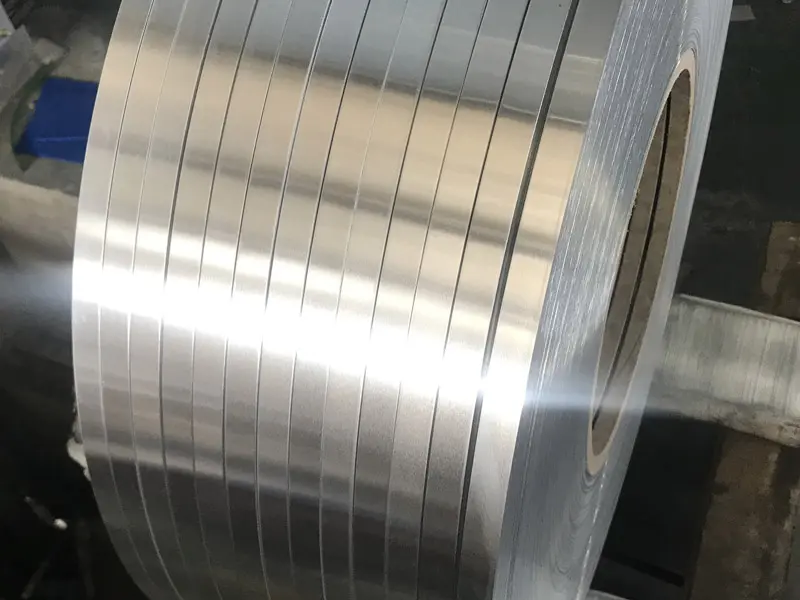

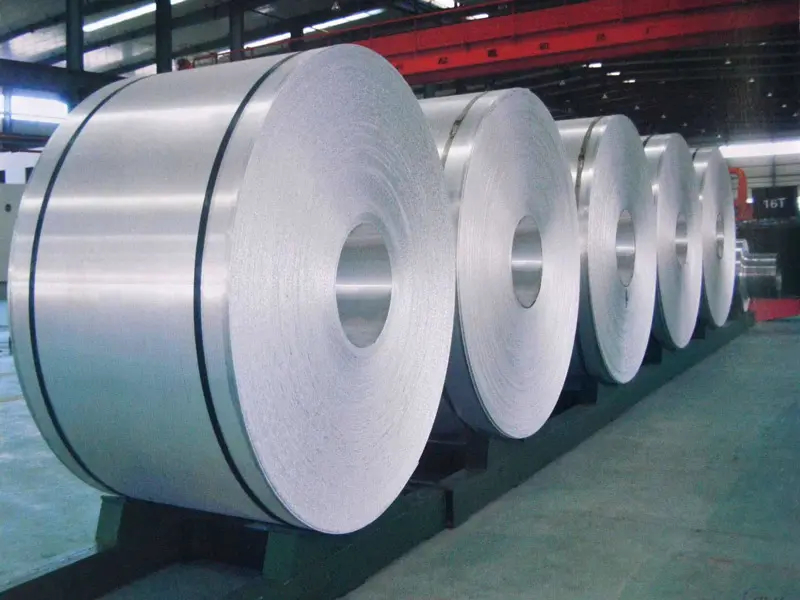

Product Display
Chemical Composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
|
5005 |
0.30 |
0.70 |
0.20 |
0.20 |
0.5~1.1 |
0.1 |
0.25 |
- |
0.05 |
0.15 |
Margin |
Mechanical Properties
| Tensile Strength (MPa) | Test Stress (MPa) | Hardness HV | Elongation Rate （%） |
| 160 | 145 | 46 | 11 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity | Resistance Rate |
| 2.7 Kg/m³ | 655 °C | 69.5 GPa | 201W/m.K | 0.033x10 ^-6 Ω.m |
Annealing State
|
Brand |
Annealing State |
|
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
|
3xxx: 3003, 3004, 3005, 3105 |
|
|
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
|
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
|
2xxx: 2024 |
T3, T351, T4 |
|
7xxx: 7075 |
T6, T651 |
Scope of Application
|
Aluminum Uses And Application Area |
|
|
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
|
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
|
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
|
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
|
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
|
Other |
Military, color coated aluminum plate |
