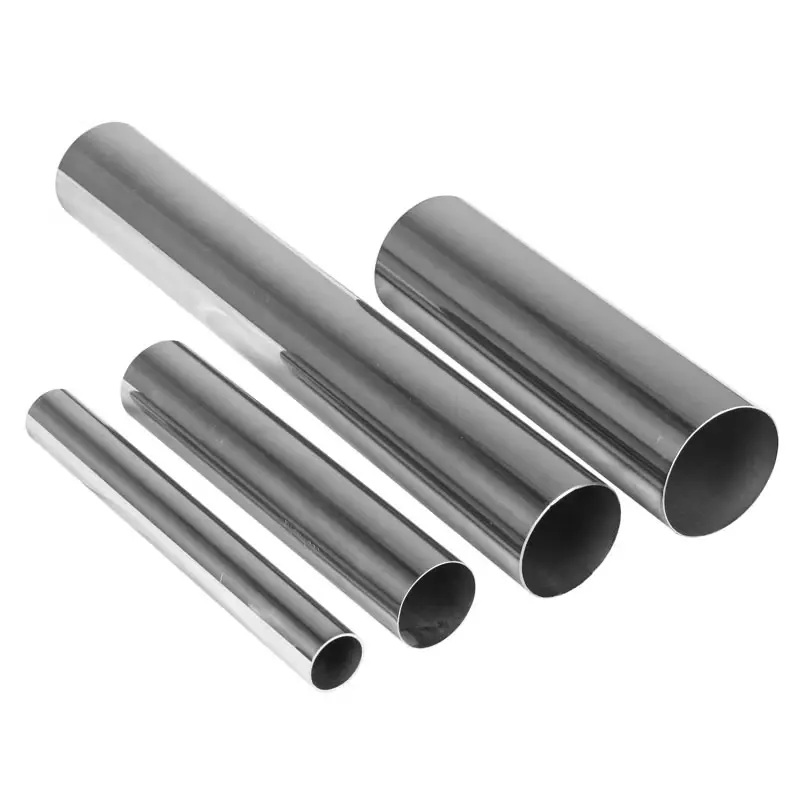

High Quality Hastelloy B-3 Pipe

Hastelloy B-3 is specifically designed to withstand the corrosive effects of hydrochloric acid at all concentrations and temperatures, as well as other aggressive chemicals. Its unique composition provides outstanding resistance to pitting, stress corrosion cracking, and oxidation, ensuring longevity and reliability in even the most challenging conditions. This makes it an ideal material for piping systems that transport corrosive fluids, where failure is not an option.
The manufacturing process of Hastelloy B-3 steel pipes adheres to the highest industry standards, ensuring that each pipe is crafted with precision and quality. Available in various sizes and thicknesses, these pipes can be tailored to meet specific project requirements, providing flexibility and adaptability for engineers and contractors alike.

product details

specification

Product Name	Hastelloy B-3 Pipe
Material Grade	Inconel 600, Inconel 601, Inconel 625, Inconel 690, Inconel 718, Inconel 725, etcIncoloy 800, Incoloy 825, Incoloy 925, Incoloy 800H, Incoloy 800, Incoloy926(AL-6XN), etc Hastelloy C276, Hastelloy C22, Hastelloy C2000, Hastelloy X, etc
Diameter	a) Capillary Tube Outer Diameter: 0.2mm-6.mm Welding Tube Outer Diameter: 6.mm- 840mm Seamless Tube Outer Diameter: 6mm-630mm
	b) Capillary Tube Wall Thickness: 0.02mm-2mm Welding Tube Wall Thickness: 0.5-150mm Seamless Tube Wall Thickness: 0.5-60mm
	c) Length: ≤500mm Or in coil
Tolerance	a) Outer Diameter: +/- 0.01mm
	b) Thickness: +/- 0.01mm
	c) Length: +/- 0.1mm
Surface Treatment	Polishing,Annealing, Bright, Pickling
Type	Welded,Seamless
Shape	Round,Square,Irregular
Application	medical treatment, petroleum, aerospace, medical equipment, air conditioning, chemical industry, electronics, accessories, food machinery, power generation, pharmaceutical and other fields.

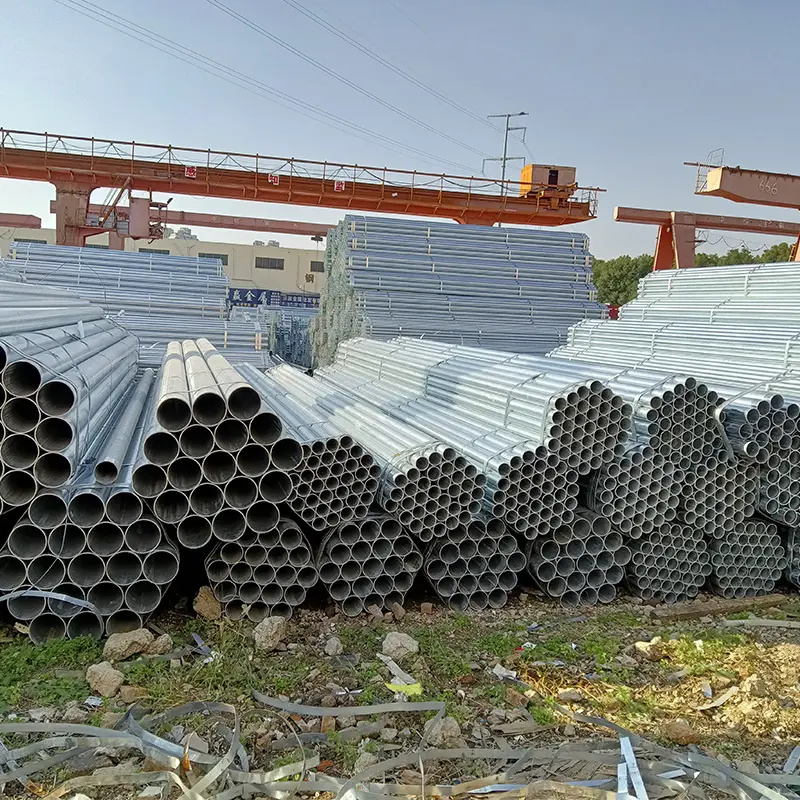

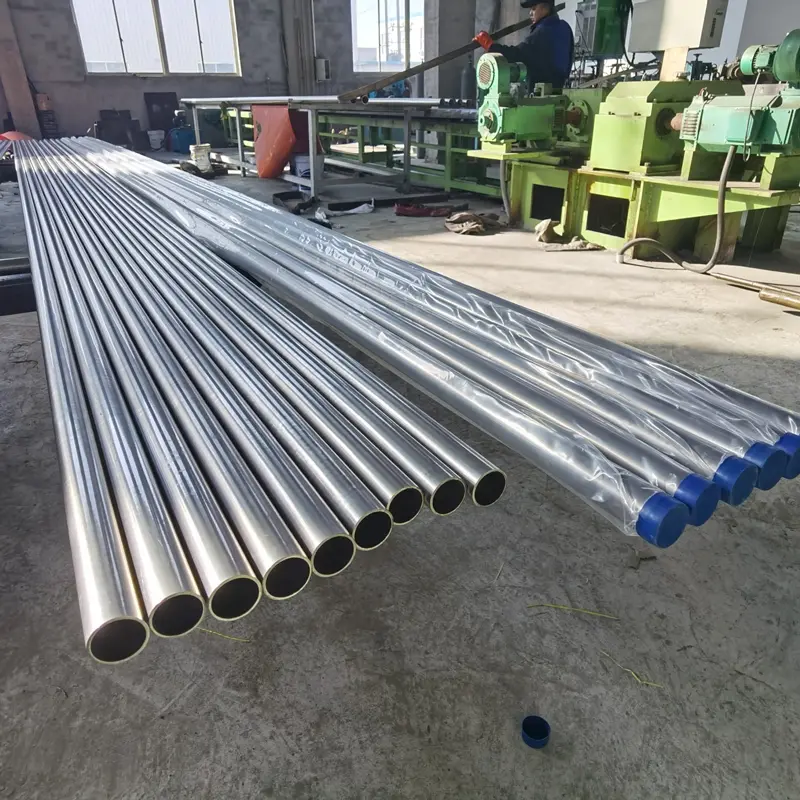

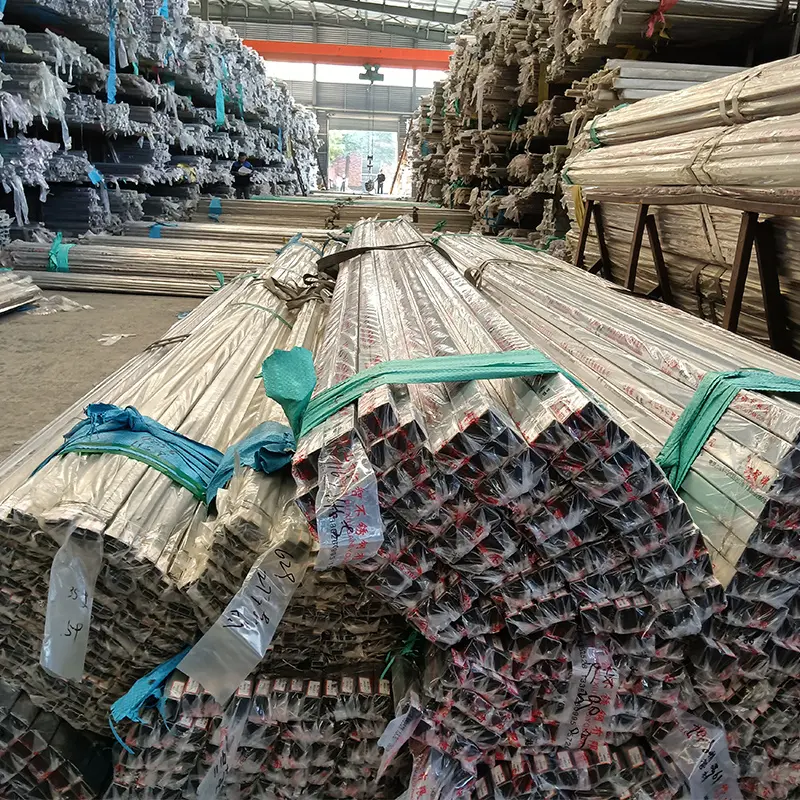

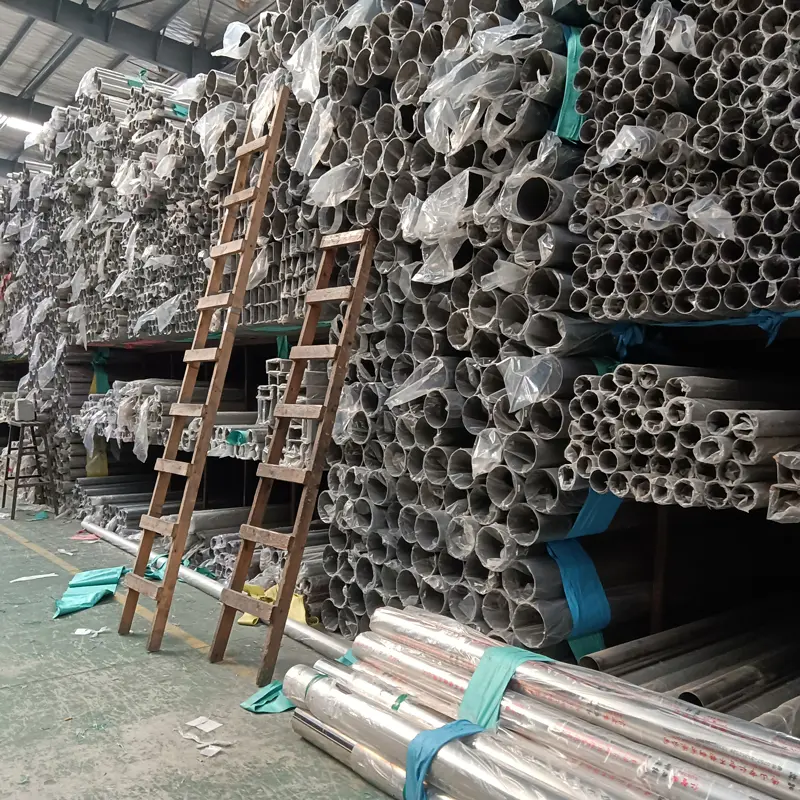

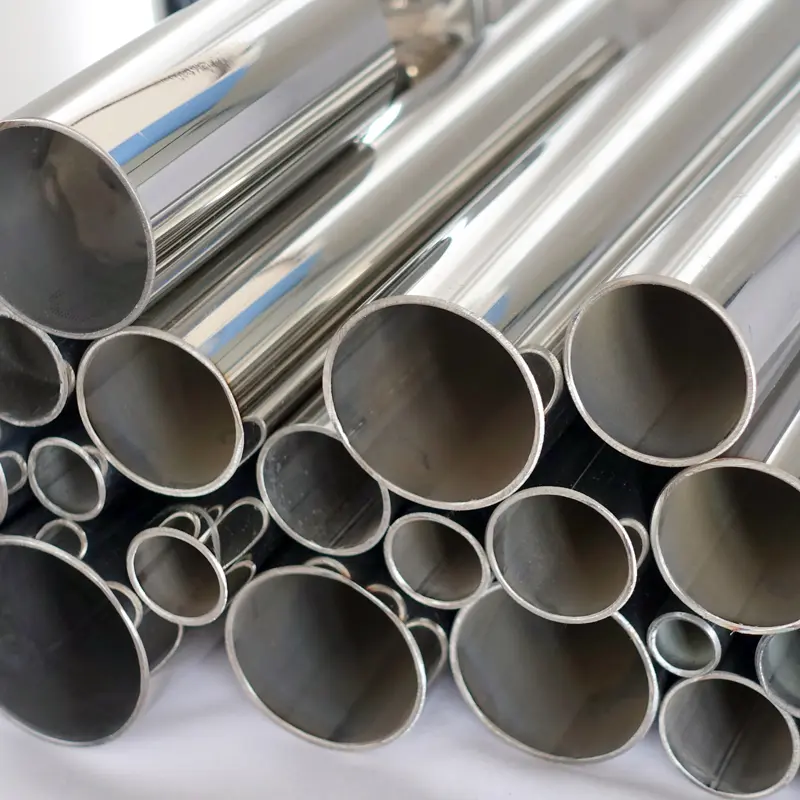

Product Display

Chemical Composition

C	Al	Si	P	S	Ti	V	Cr	Mn	Fe
0.01 max	0.5 max	0.10 max	0.03 max	0.01 max	0.2 max	0.2 max	1.0 - 3.0	3.0 max	1.0 - 3.0

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
110	51	40

Physical Performance

	Units	Temperature in°C
Density	9.22 g/cm³	Room
Specific Heat	0.089 Kcal/kg.C	Room
Melting Range	1370-1418°C	-
Modulus of Elasticity	216 KN/mm²	Room
Electrical Resistivity	137 µΩ.cm	Room
Coefficient of Expansion	10.6 µm/m °C	25 - 100°
Thermal Conductivity	11.2 w/m-° K	Room
