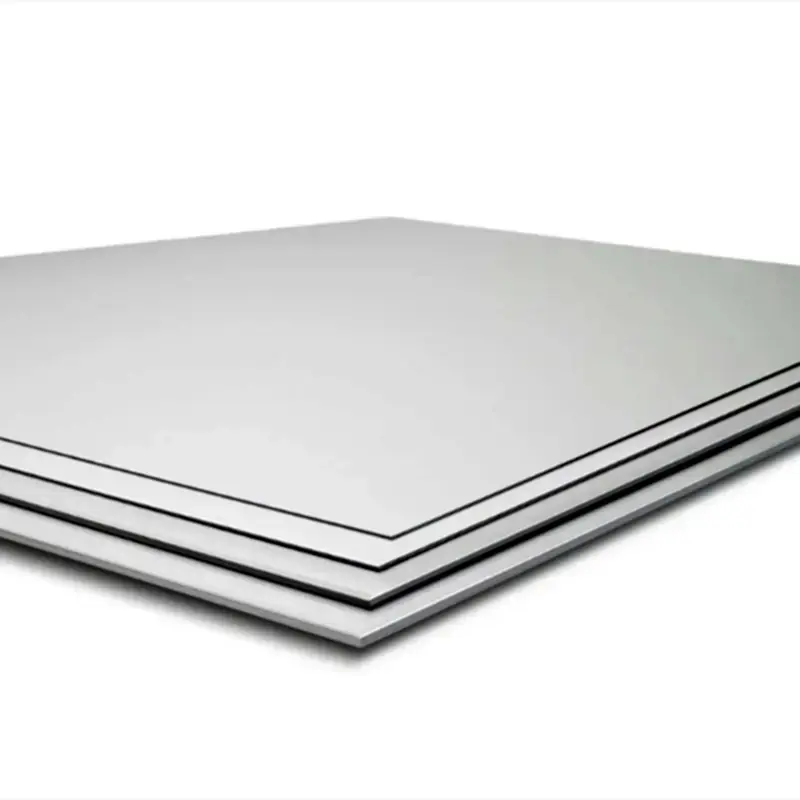

High Quality Hastelloy B-3 Plate

Hastelloy B-3 is renowned for its outstanding resistance to hydrochloric acid at all concentrations and temperatures, as well as its ability to handle a variety of other corrosive media. This unique composition not only enhances its performance in reducing environments but also ensures longevity and reduced maintenance costs, making it a cost-effective solution for businesses.
The steel plate is characterized by its excellent weldability and fabricability, allowing for easy integration into existing systems and structures. Its versatility means it can be used in a wide range of applications, from pressure vessels and heat exchangers to piping systems and reactors. The material's high strength and toughness further contribute to its reliability, ensuring that it can withstand the rigors of industrial use without compromising safety or performance.
Hastelloy B-3 Steel Plate is available in various thicknesses and dimensions, tailored to meet the specific needs of your project.

product details

specification

Product Name	Hastelloy B-3 Plate
Standard	ASTM,JIS,DIN,GB,AISI,DIN,EN
Thickness	0.3mm-200mm
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Error	±1%
Certification	ISO 9001 ，CE，API
Surface treatment	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Production Technology	Hot Rolling, Cold Rolling
Country of origin	China
Main Applications	Construction engineering, automotive industry, mechanical engineering, oil and gas industry, aerospace, shipbuilding, power industry, mining and metallurgy

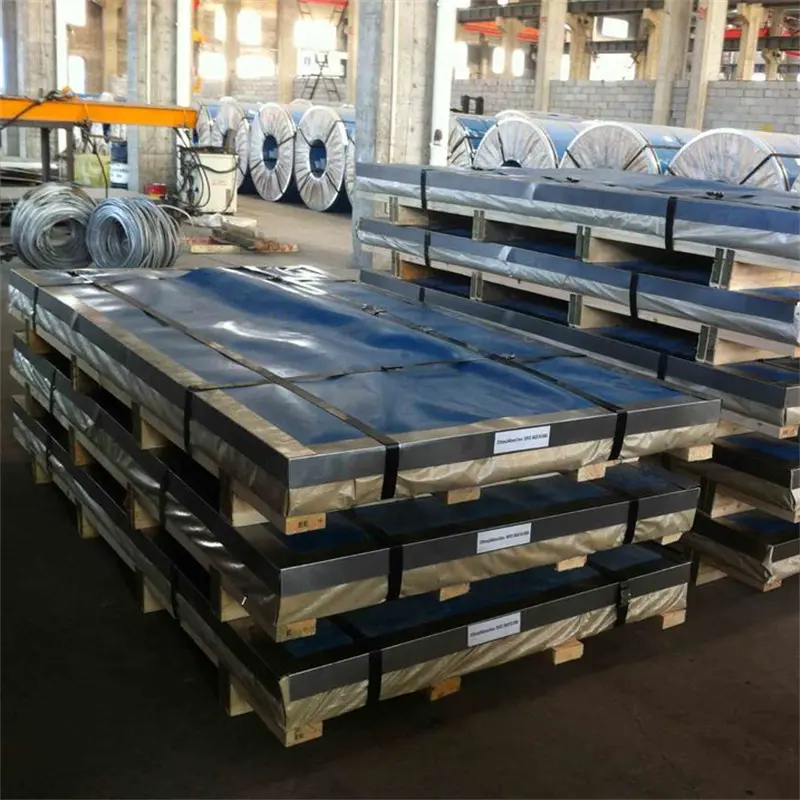

Package	Bundling packaging、Wooden box packaging、Plastic film packaging、Pallet packaging、Anti-rust oil coating、Bubble film packaging
Payment Term	TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service	1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

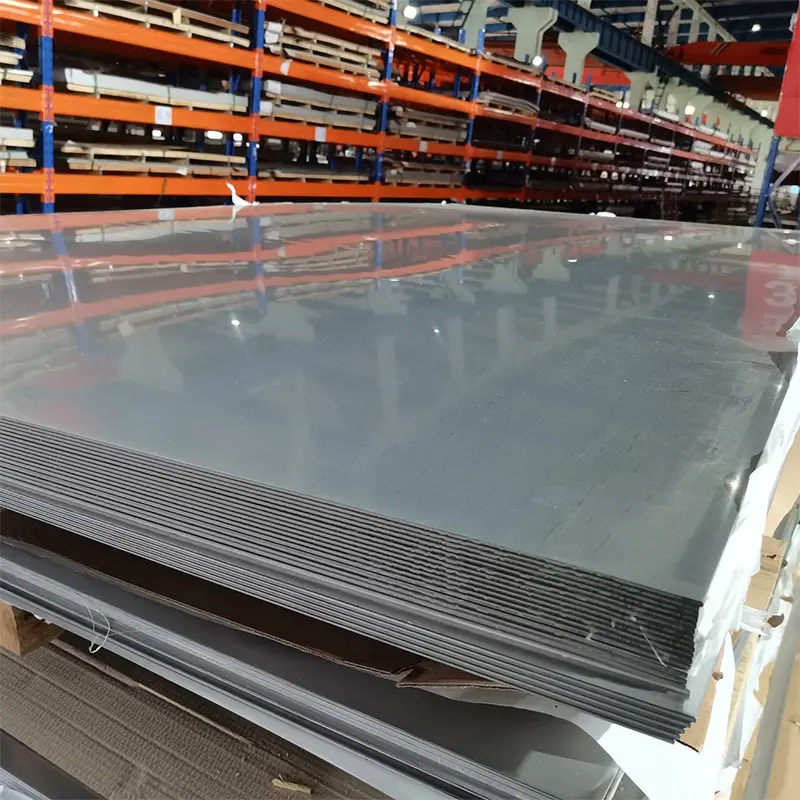

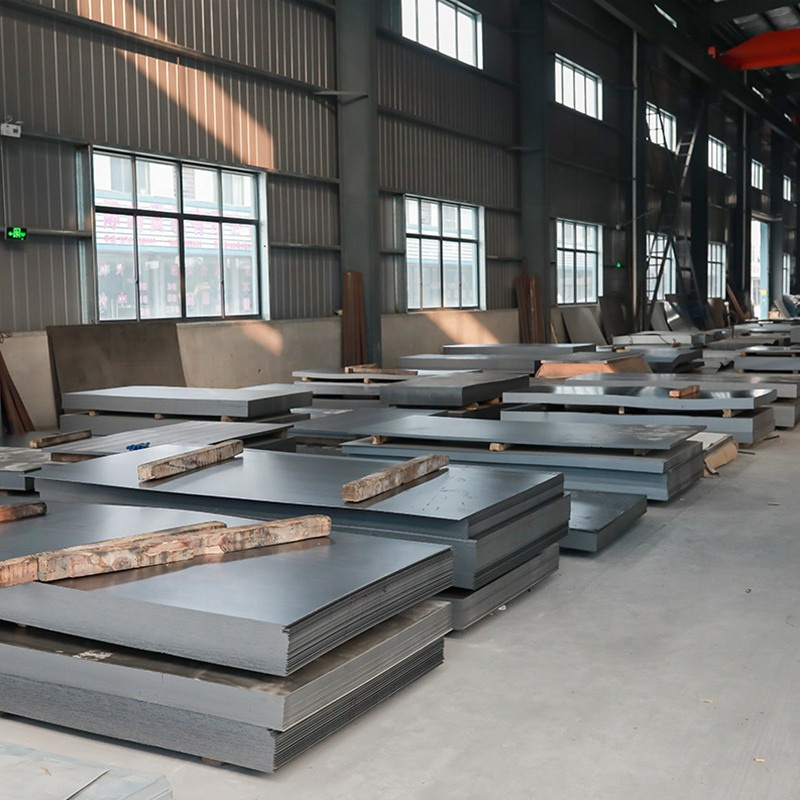

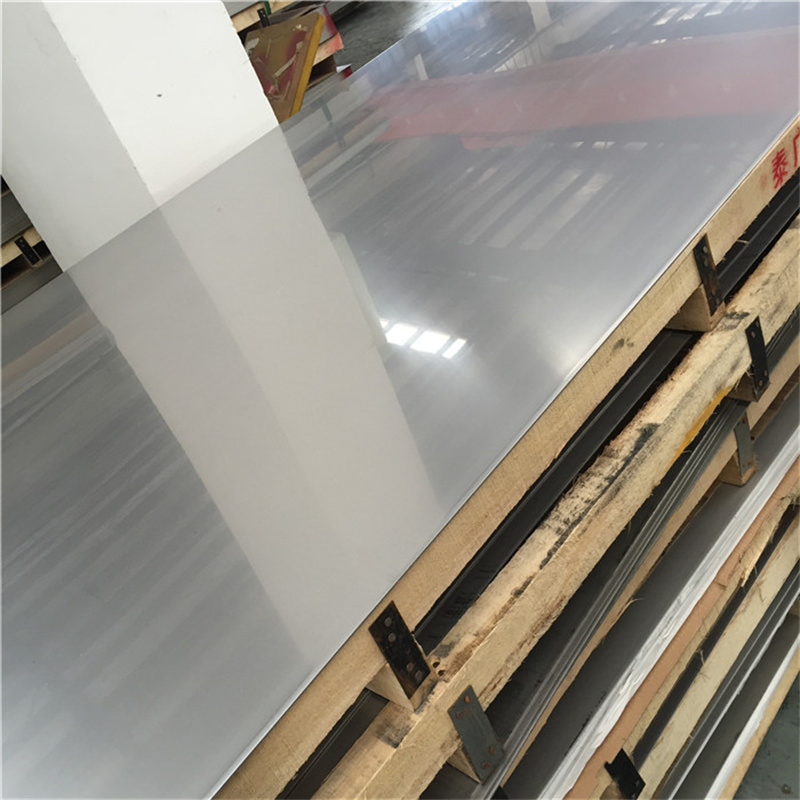

Product Display

Chemical Composition

Not MO

0.01 max

0.5 max

0.10 max

0.03 max

0.01 max

0.2 max

1.0 - 3.0

3.0 max

1.0 - 3.0

3.0 max

65.0 min

0.2 max

0.1 max

0.2 max

27.0 - 32.0

0.2 max

3.0 max

94.0 - 98.0

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
110	51	40

Physical Performance

	Units	Temperature in°C
Density	9.22 g/cm³	Room
Specific Heat	0.089 Kcal/kg.C	Room
Melting Range	1370-1418°C	-
Modulus of Elasticity	216 KN/mm²	Room
Electrical Resistivity	137 µΩ.cm	Room
Coefficient of Expansion	10.6 µm/m °C	25 - 100°
Thermal Conductivity	11.2 w/m-° K	Room
