High Quality Incoloy 600 Plate

The Incoloy 600 steel plate is characterized by its remarkable mechanical properties, including excellent tensile strength and flexibility. This allows for easy fabrication and welding, making it suitable for a wide range of applications, from chemical processing to aerospace components. Its unique composition provides superior resistance to chloride stress corrosion cracking, ensuring reliability in environments where other materials may fail.
Incoloy 600 is particularly favored in industries such as oil and gas, power generation, and nuclear energy, where the integrity of materials is paramount. The steel plate is available in various thicknesses and dimensions, allowing for customization to meet specific project requirements. Whether you are constructing heat exchangers, furnace components, or piping systems, Incoloy 600 steel plates deliver the performance and resilience needed to tackle the most demanding challenges.

product details

specification

Product Name	Incoloy 600 Plate
Standard	ASTM,JIS,DIN,GB,AISI,DIN,EN
Thickness	0.3mm-200mm
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Error	±1%
Certification	ISO 9001 ，CE，API
Surface treatment	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Production Technology	Hot Rolling, Cold Rolling
Country of origin	China
Main Applications	Construction engineering, automotive industry, mechanical engineering, oil and gas industry, aerospace, shipbuilding, power industry, mining and metallurgy
Package	Bundling packaging、Wooden box packaging、Plastic film packaging、Pallet packaging、Anti-rust oil coating、Bubble film packaging
Payment Term	TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service	1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

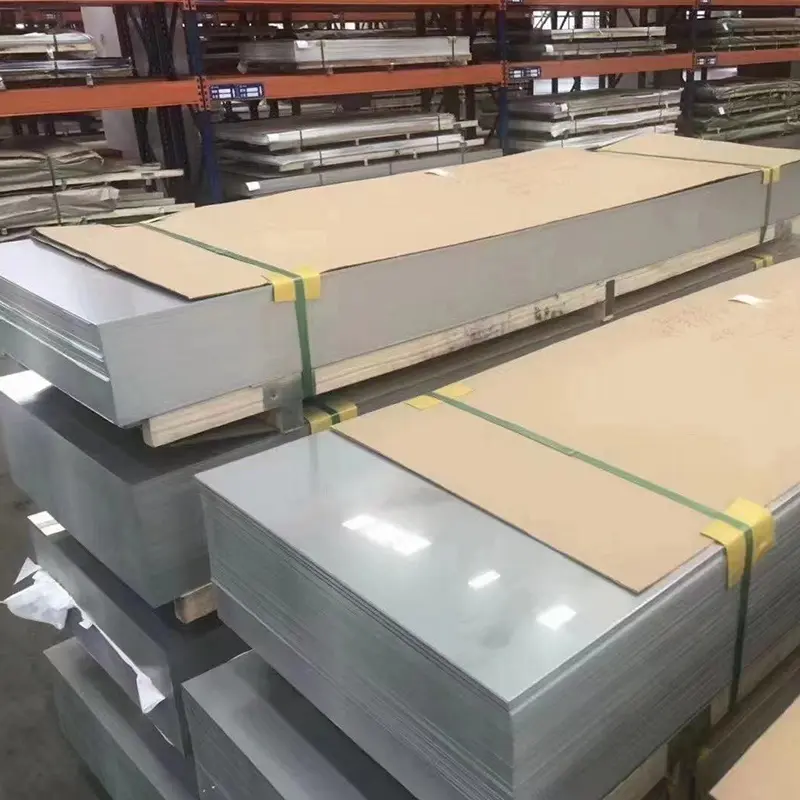

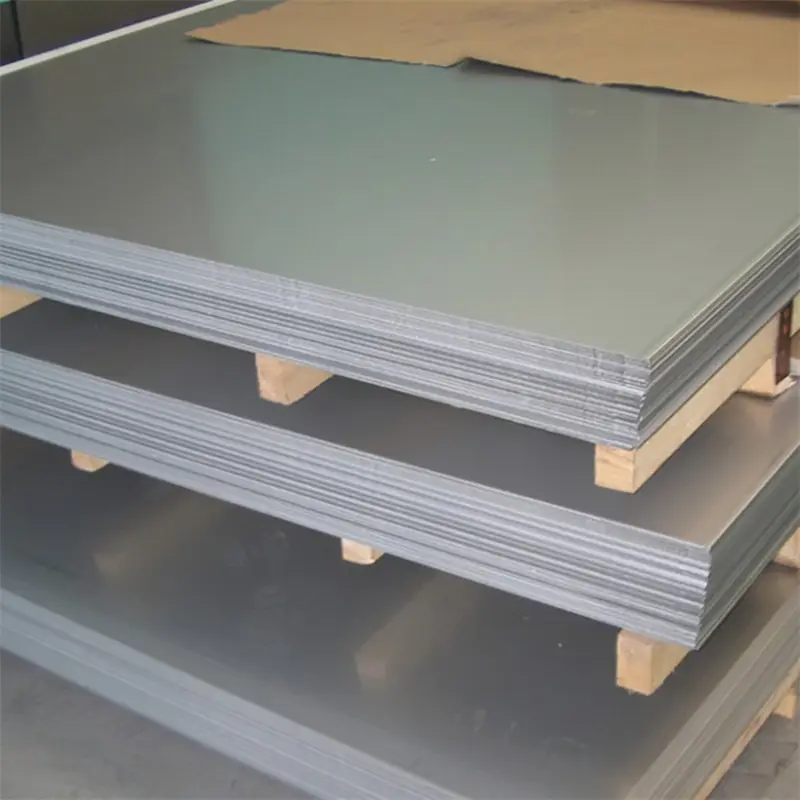

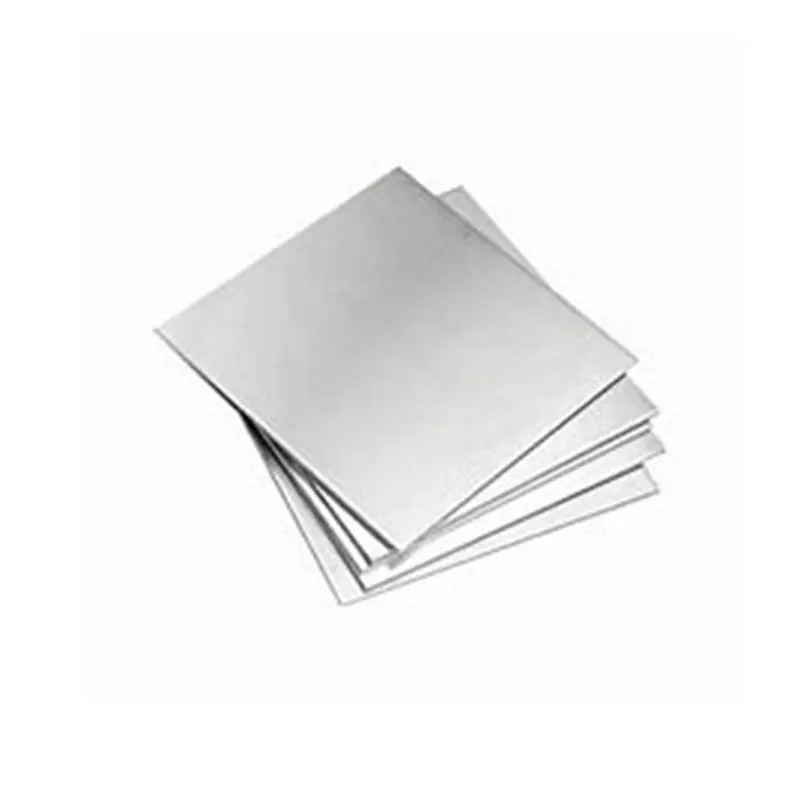

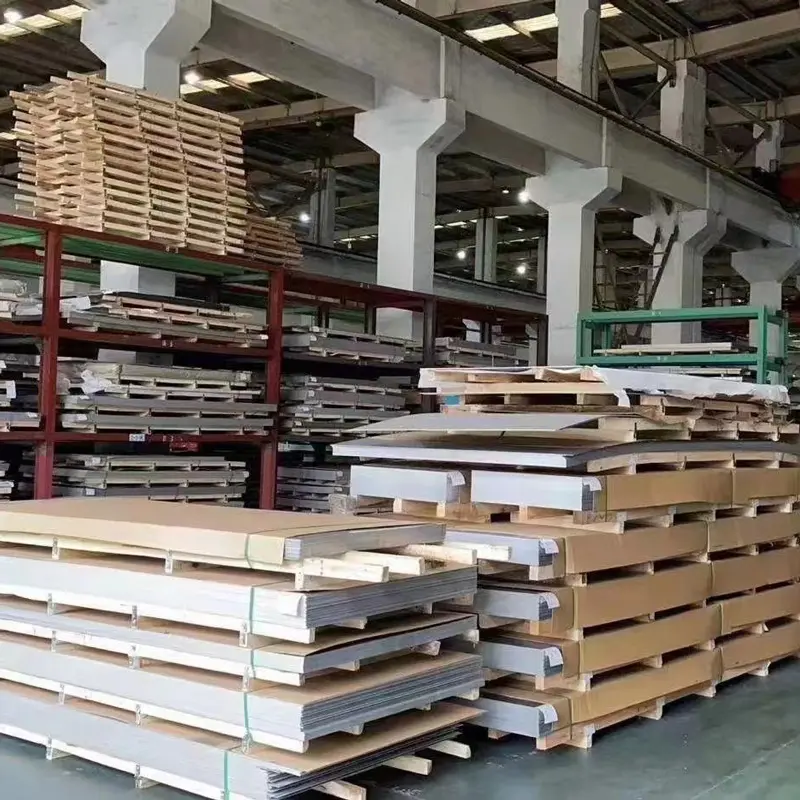

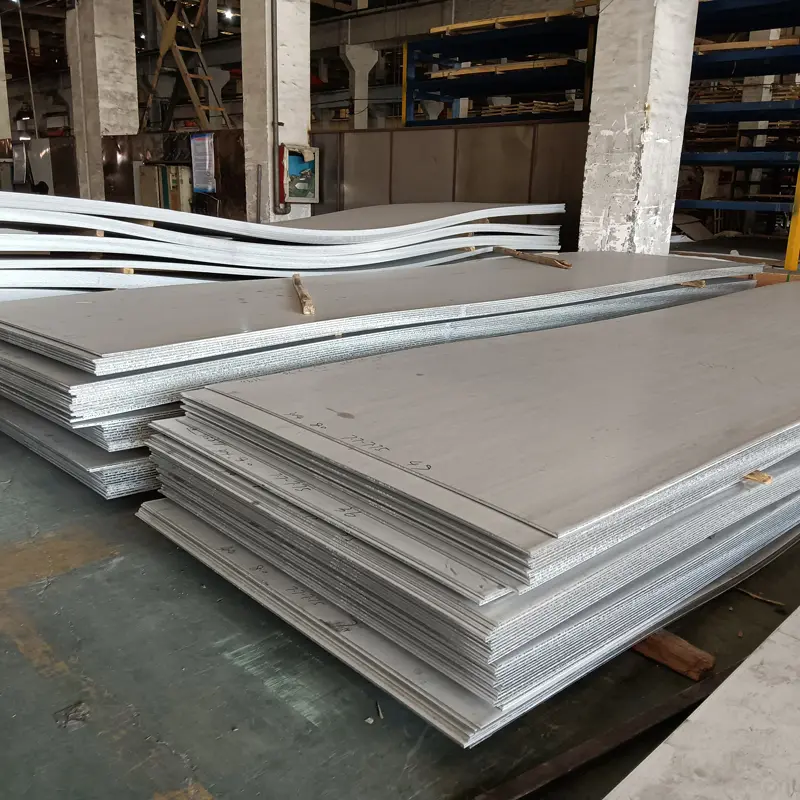

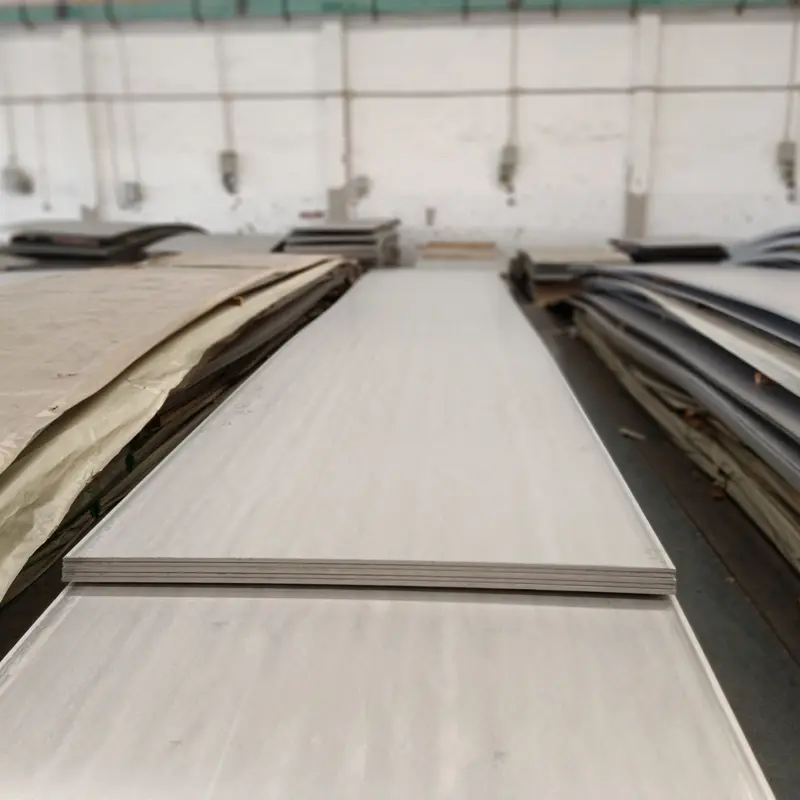

Product Display

Chemical Composition

C	Si	S	Cr	Mn	Fe	Ni	Cu
0.15 max	0.5 max	0.015 max	14.0 - 17.0	1.0 max	6.0 - 10.0	72.0 min	0.5 max

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
110	85	10

Physical Performance

	Units	Temperature in°C
Density	8.47 g/cm³	Room
Specific Heat	0.106 Kcal/kg.C	22°
Melting Range	1354-1413°C	-
Modulus of Elasticity	214 KN/mm²	22°
Electrical Resistivity	103 µΩ.cm	Room
Coefficient of Expansion	13.3 µm/m °C	20 - 100°
Thermal Conductivity	14.9 w/m-° K	20°
