01
Monel 400 bar with corrosion resistance
specification
| Product Name | Monel 400 Bar | |
| Standard | ASTM,JIS,DIN,GB,AISI,DIN,EN | |
|
Outer Diameter |
Round Bar |
4mm-200mm |
| Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
| Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
| Flat Steel | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized | |
| Length | 1-6 meters, Length can be customized | |
| Error | ±1% | |
| Certification | ISO 9001 ，CE，API | |
| Surface treatment | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc. | |
| Production Technology | Hot Rolling, Cold Rolling | |
| Country of origin | China | |
| Main Applications | Mechanical engineering, automotive industry, aerospace, construction engineering, oil and gas industry, energy industry, mold manufacturing | |
| Package | Bundling, wooden box packaging, pallet packaging, plastic film packaging, anti-rust oil coating, container transportation | |
| Payment Term | TT, LC,Cash, Paypal, DP, DA,Western Union or Others. | |
| After-sales service | 1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection | |

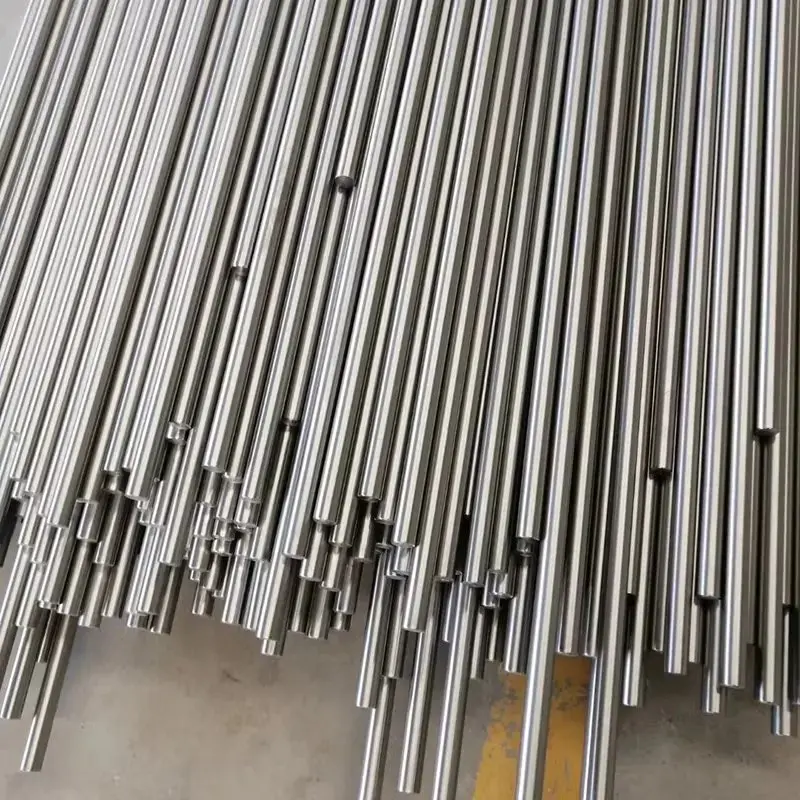

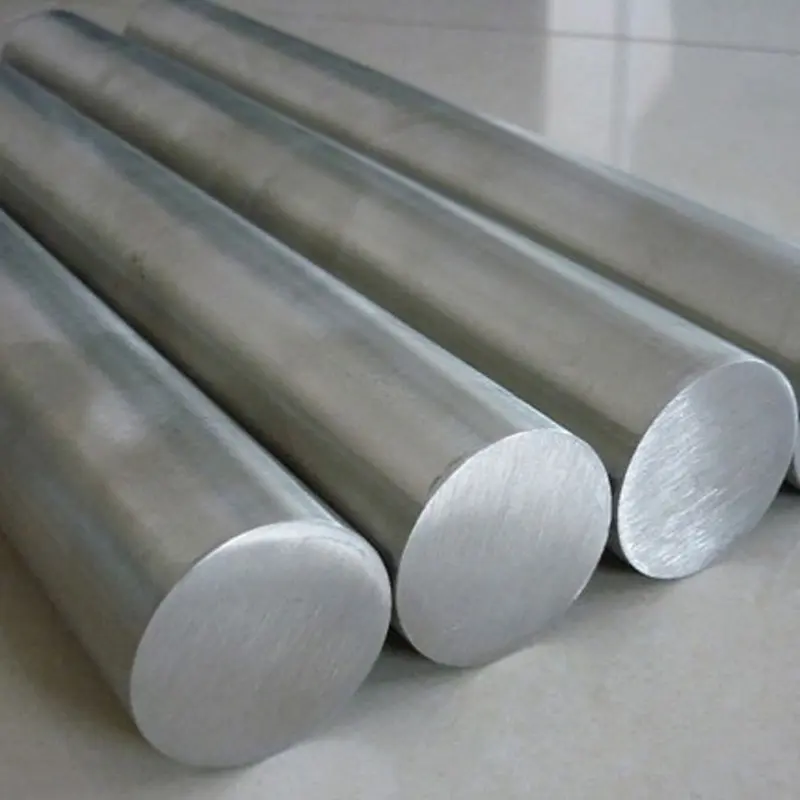

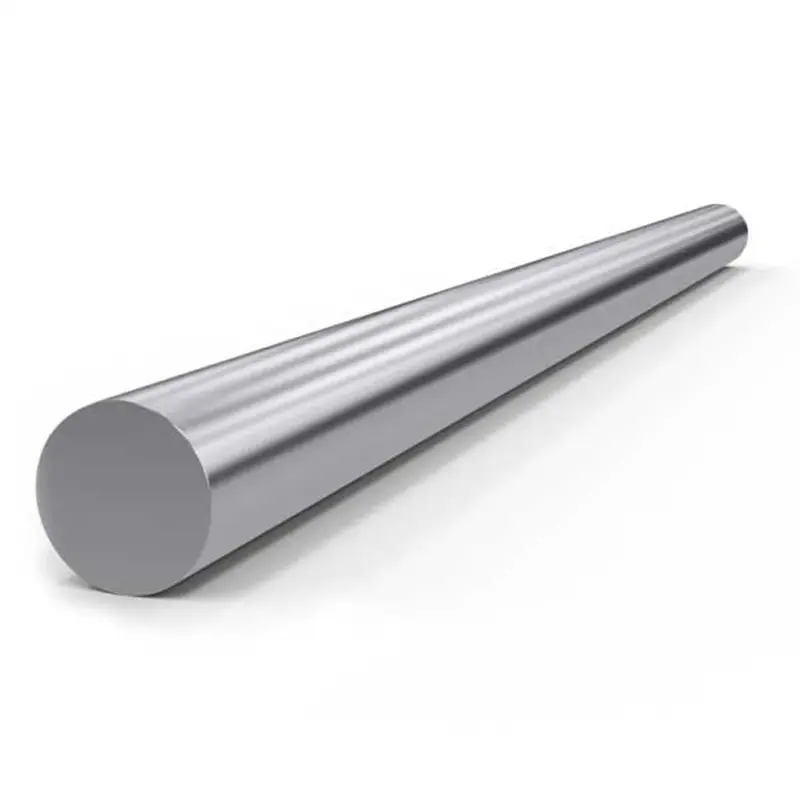

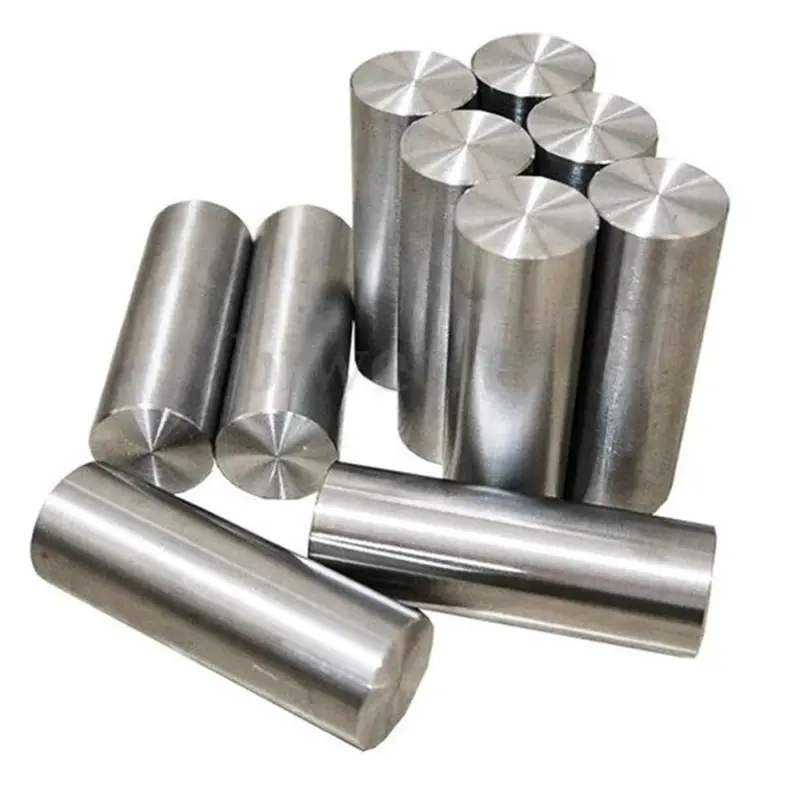

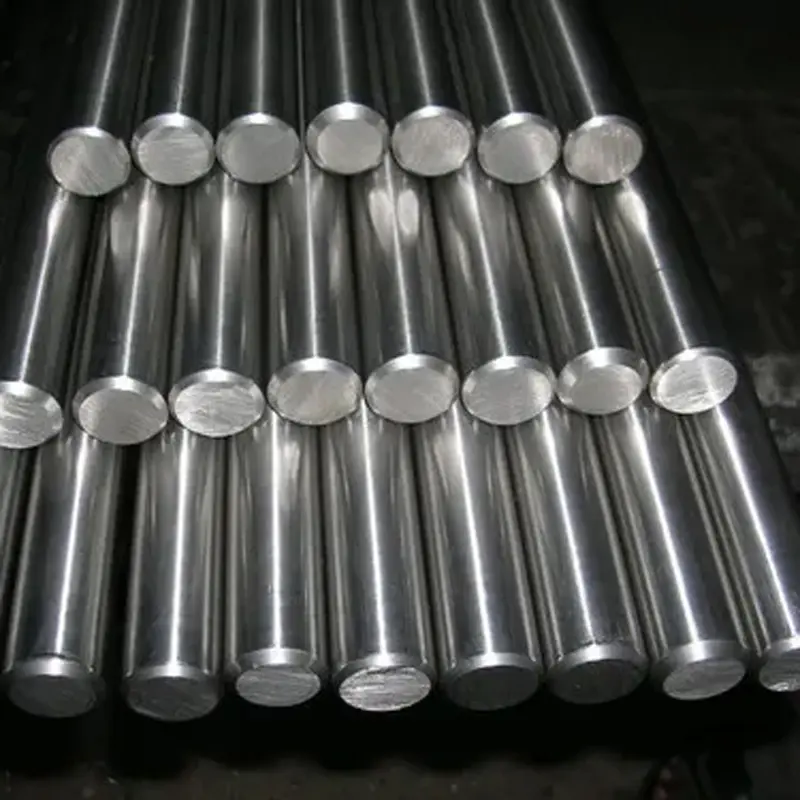

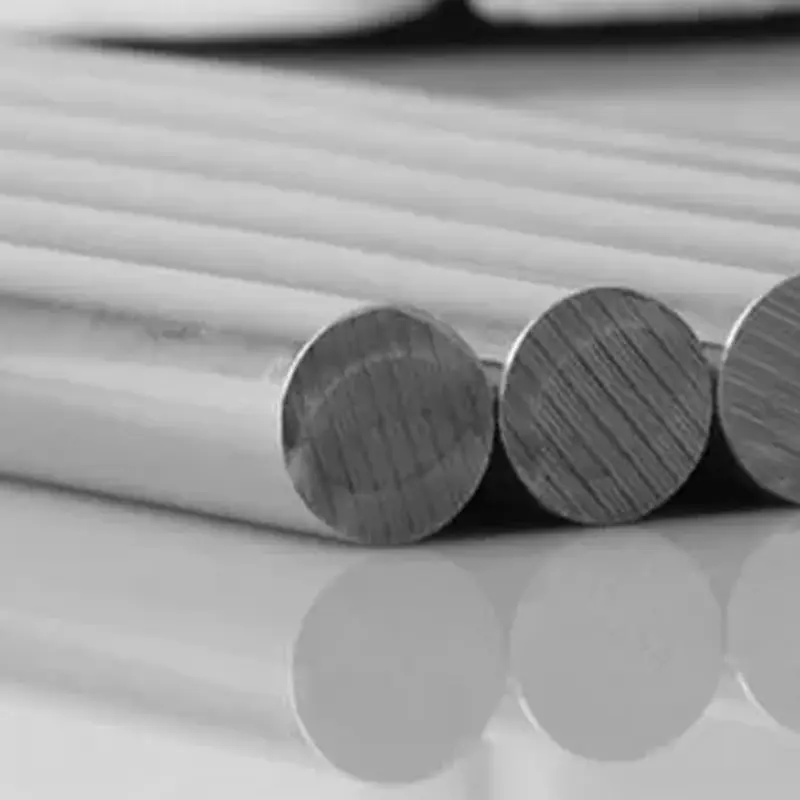

Product Display
Chemical Composition
|
Nickel, minA |
Copper |
lron, max |
Manganese, max |
Carbon, max |
Silicon, max |
Sulfur, max |
|
63.0% |
28.0% - 34.0% |
2.5% |
2.0% |
0.3% |
0.5% |
0.024% |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
|
85 |
35 |
30 |
Physical Performance
| Units | Temperature in°C | |
|
Density |
8.14 g/cm³ |
Room |
|
Specific Heat |
0.105 Kcal/kg.C |
Room |
|
Melting Range |
1370-1400°C |
- |
|
Modulus of Elasticity |
196 KN/mm² |
20° |
|
Electrical Resistivity |
113 µΩ.cm |
25° |
|
Coefficient of Expansion |
14.1 µm/m °C |
25 - 100° |
|
Thermal Conductivity |
11.1 w/m-° K |
25° |
