Monel R - 405 pipe with corrosion resistance

Monel R-405 is characterized by its excellent resistance to a wide range of corrosive media, including acids, alkalis, and seawater. This unique property ensures longevity and reliability in applications where traditional materials may falter. The alloy's high strength-to-weight ratio further enhances its appeal, allowing for the construction of lightweight yet robust piping systems that can endure extreme pressures and temperatures.
Additionally, Monel R-405 exhibits excellent thermal and electrical conductivity, making it suitable for applications that require efficient heat transfer and electrical performance. Its non-magnetic properties further enhance its usability in sensitive environments, such as those found in the aerospace and electronics sectors.

product details

specification

Product Name		Monel R-405 Pipe
Standard		ASTM,JIS,DIN,GB,AISI,DIN,EN
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	1010mm-100100mm
	Rectangular Pipe	1020mm-50100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Error		±1%
Certification		ISO 9001 ，CE，API
Surface treatment		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Production Technology		Hot Rolling, Cold Rolling
Country of origin		China
Main Applications		Oil and gas industry, chemical industry, power industry, building and construction, automotive industry, aerospace, machinery manufacturing
Package		Bundling, wooden box packaging, pallet packaging, plastic film packaging, anti-rust oil coating, container transportation
Payment Term		TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service		1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

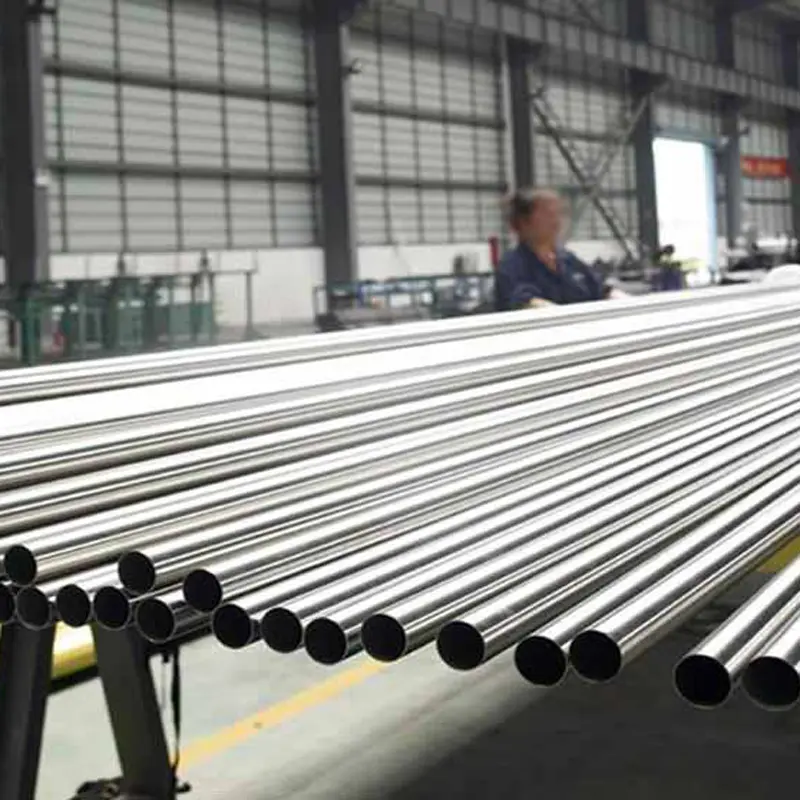

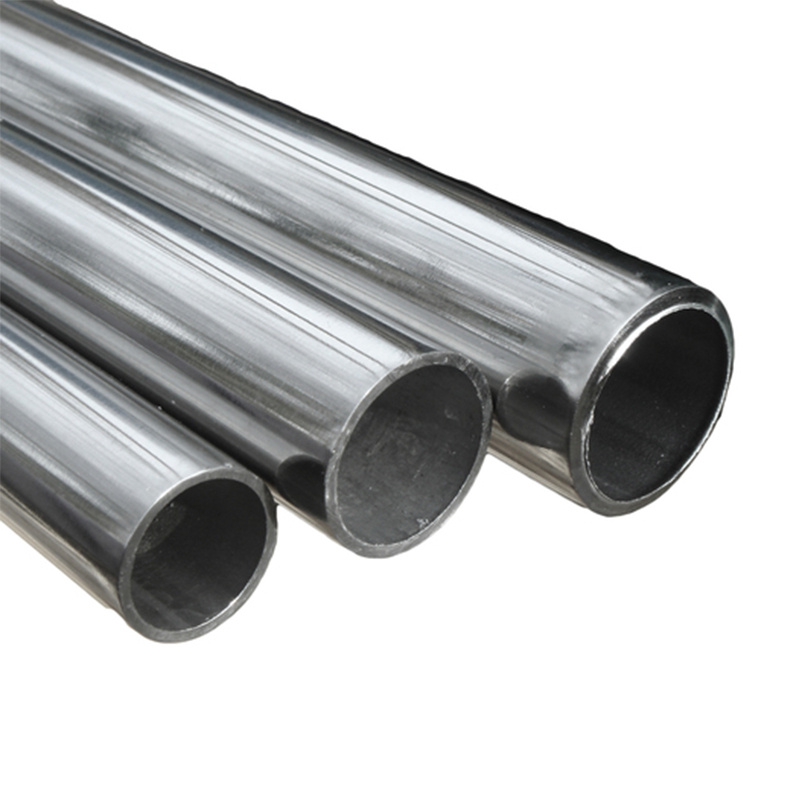

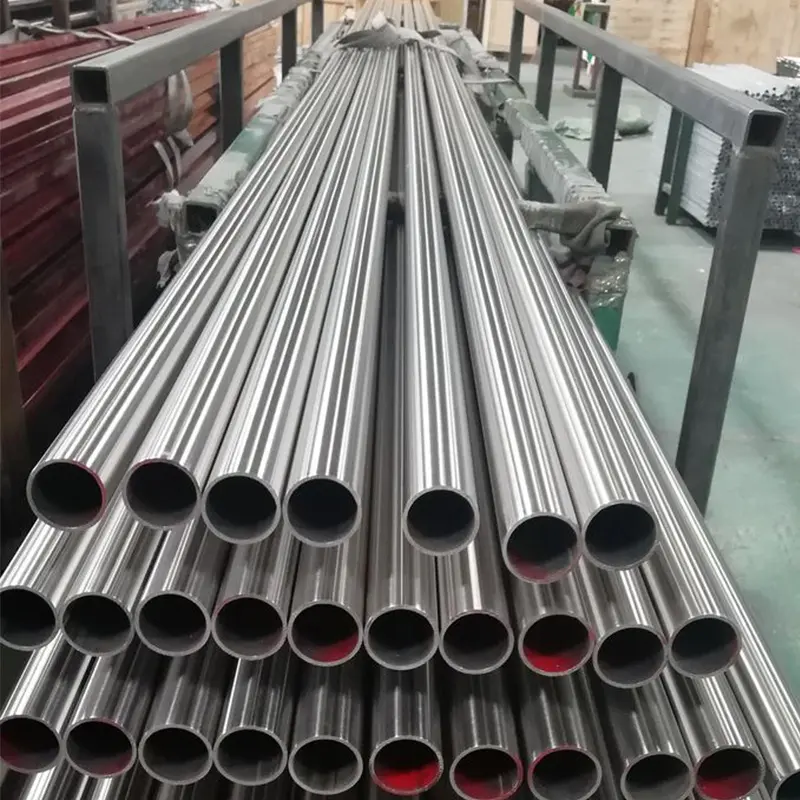

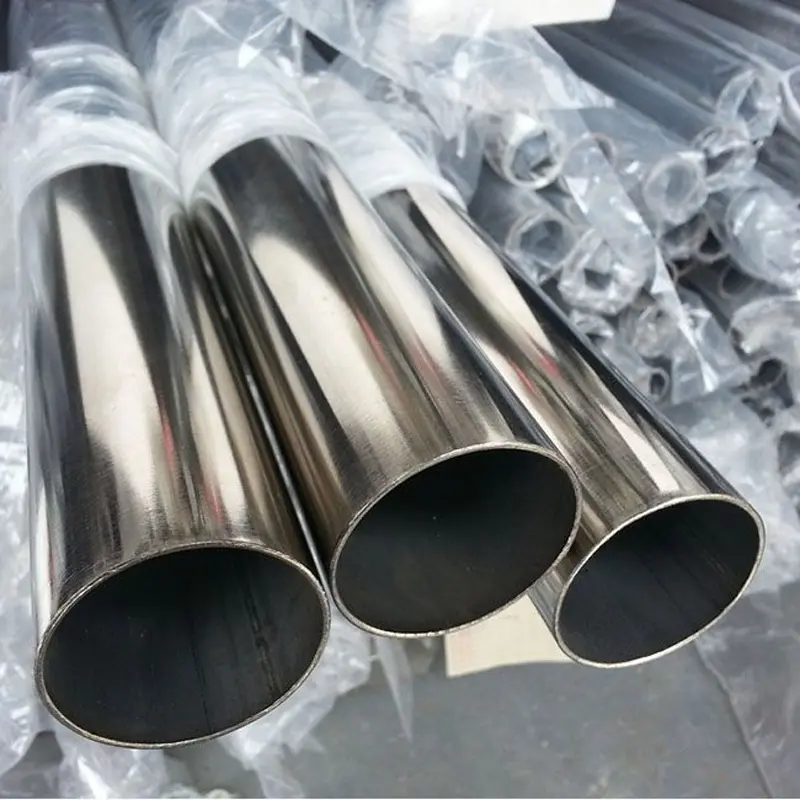

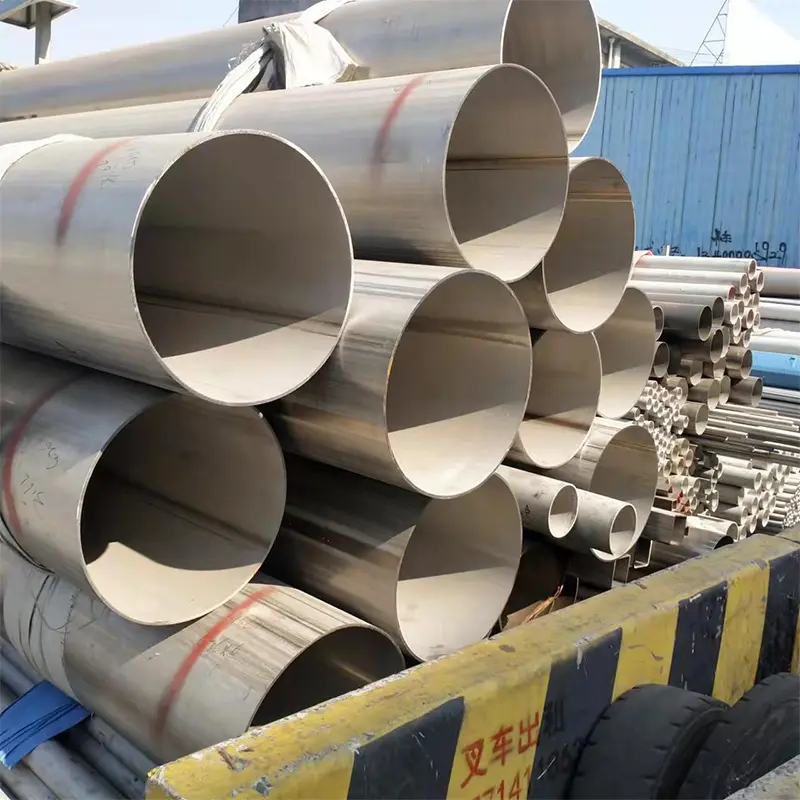

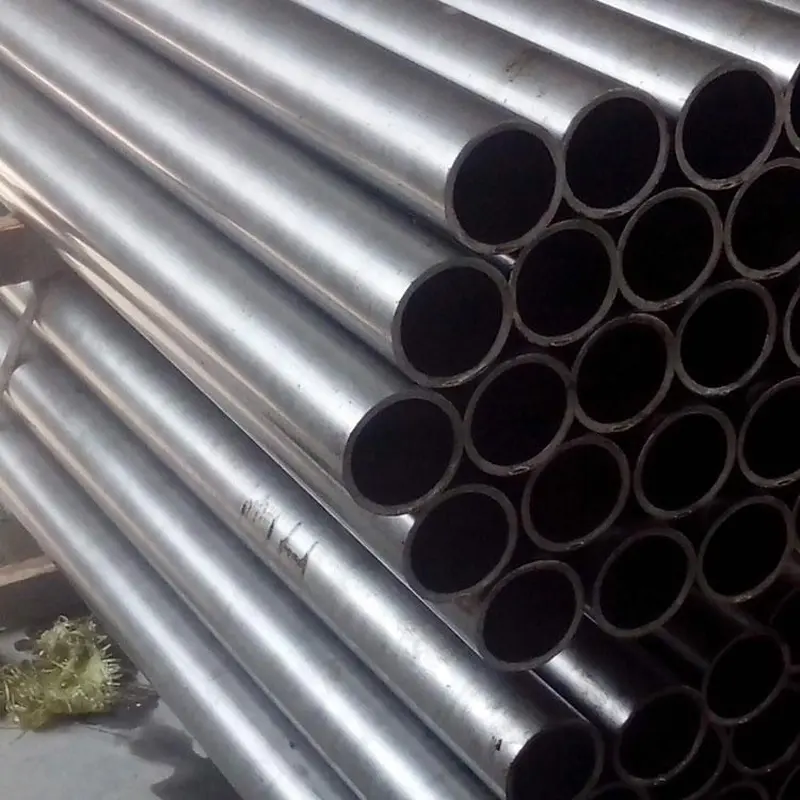

Product Display

Chemical Composition

C	Si	S	Mn	Fe	Ni	Cu
0.3 max	0.5 max	0.025 - 0.060	2.0 max	2.5 max	63.0 min	28.0 - 34.0

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
85	50	15

Physical Performance

	Units	Temperature in°C
Density	8.80 g/cm³	Room
Specific Heat	0.102 Kcal/kg.C	21°
Melting Range	1300-1350°C	-
Modulus of Elasticity	179 KN/mm²	Room
Electrical Resistivity	51.1 µΩ.cm	21°
Coefficient of Expansion	14.2 µm/m °C	21 - 100°
Thermal Conductivity	22.0 w/m-° K	21°
