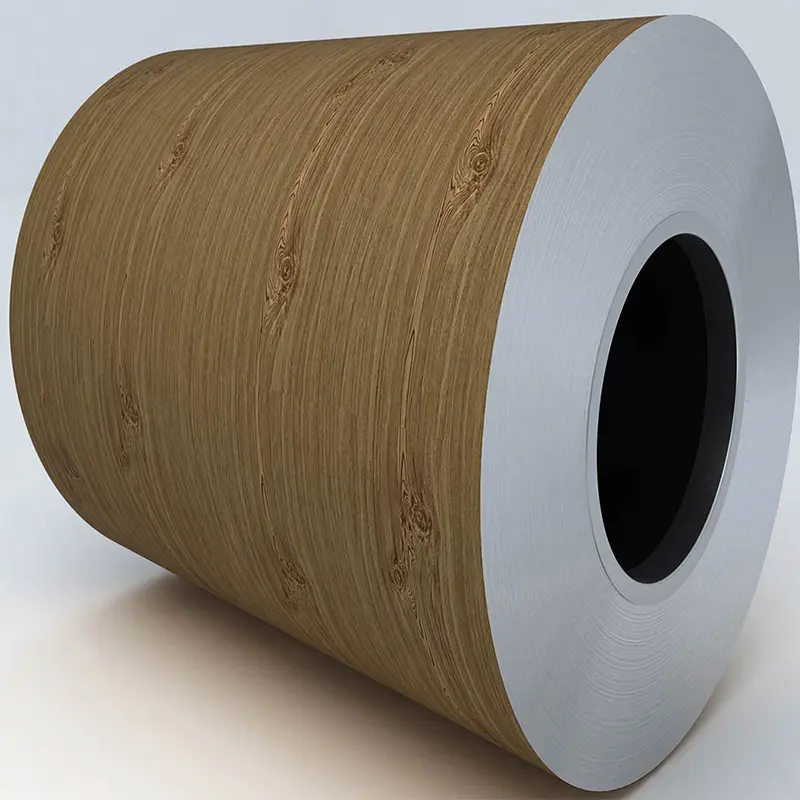

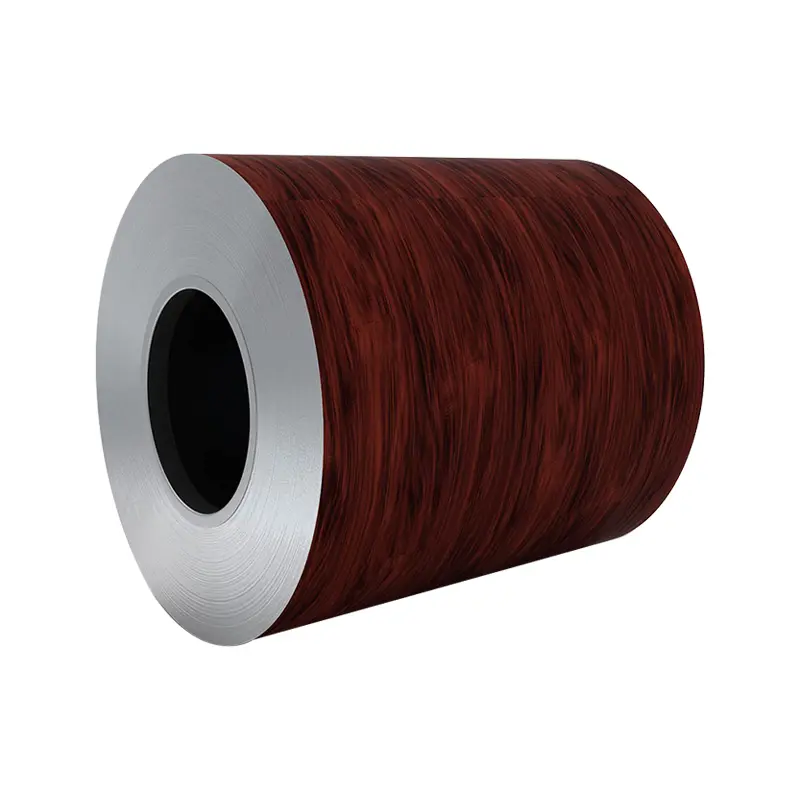

PPGF（High Quality Galvanized Steel）

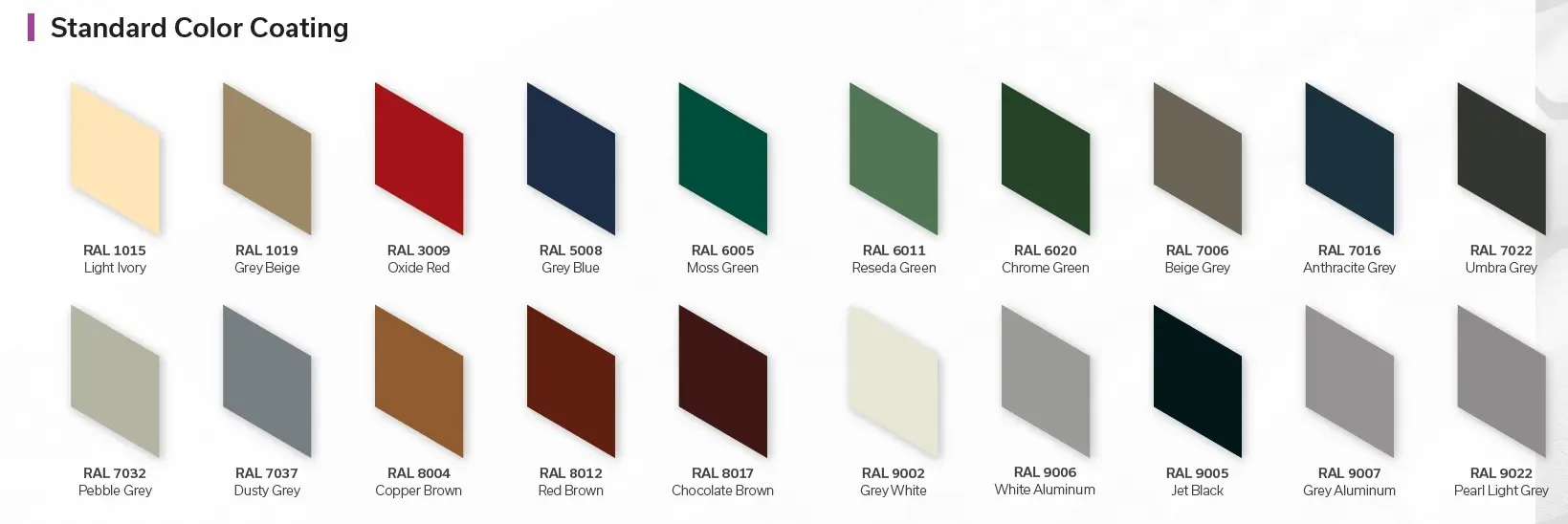

PPGF Steel Coil is made from high-quality galvanized steel, which is coated with a layer of paint before being rolled into coils. This innovative process not only enhances the durability of the steel but also offers a wide range of colors and finishes, making it an ideal choice for both functional and decorative purposes. The pre-painted surface provides excellent resistance to corrosion, UV rays, and weathering, ensuring that your projects maintain their beauty and integrity over time.

product details

specification

Product Type	Coating Type	Product Spec.		Substrate Spec.		Coating Designation	Coating Thickness
1. Pre-painted Hot-dip Galvanized Steel Coil (PPGI) 2. Pre-painted Hot-dip 5% Al-Zn Coated Steel Coil (PPGF) 3. Pre-painted Hot-dip 55%Al-Zn Coated Steel Coil (PPGL)	1. Polyester 2. Silicone Modified Polyester 3. Acrylic 4. PVDF	JIS G3312 (1994)	CGCC, CGCH, CGCD1, CGC340, CGC400, CGC440, CGC490, CGC570	JIS G3302 (1998)	SGCC, SGCH, SGCD1, SGC340, SGC400, SGC440, SGC490, SGC570	JIS G3302 Z10, Z12, Z18, Z20, Z22, Z25, Z27,Z35	Top Primer: PU or Epoxy 5um Top Coat: 15~25um Back Coat: PE or Epoxy 5~12um
		JIS G3318 (1994)	CZACC, CZACH, CZACD1, CZAC340, CZAC400, CZAC440, CZAC490, CZAC570	JIS G3317 (1994)	SZACC, SZACH, SZACH1, SZAC340, SZAC400, SZAC440, SZAC490, SZAC570	JIS G3317 (1994) Y12, Y18, Y20, Y22, Y25, Y27
		JIS G3322 (1998)	CGLCC, CGLCD, CGLC400, CGLC440, CGLC490, CGLC570	JIS G3321 (1998)	SGLCC, SGLC400, SGLC440, SGLC490, SGLC570	JIS G3321 (1998) AZ90, AZ120, AZ150, AZ170
		ASTM A755M (2001)		ASTM A653M (2003)	CS TYPE A, B, C FS TYPE A, B SS Grade 230, 255, 275, 340 DDS	ASTM A653M (2003) Z100, Z120, Z180, Z275, Z350
				ASTM A875M (2002)		ASTM A875M (2002) ZGF90, ZGF135, ZGF180, ZGF225, ZGF275
				ASTM A792M (2003)		ASTM A792M (2003) AZ150, AZ165, AZ180
		EN 10169 (1997)		EN 10142 (2000)	DX51D, DX52D, DX53D	EN 10142 (2000) Z100, Z140, Z200, Z225, Z275
				EN 10147 (2000)	S220GD, S250GD, S280GD, S320GD, S350GD, S550GD	EN 10147 (2000) Z100, Z140, Z200, Z225, Z275
				EN 10214 (1995)	S220GD DX51D, S250GD DX52D, S280GD DX53D, S320GD, S350GD, S555GD	EN 10214 (1995) ZA95, ZA130, ZA185, ZA200, ZA255
				EN 10215 (1995)		EN 10215 (1995) ZA100, AZ150, AZ185
Remark	1. Protective Film can be applied 2. The ASTM standards presented here adopt the imperial system (The equivalent metric system is marked by the “M” after the specification number, such as A755M and A792M) 3. Coating Thickness is for reference only.

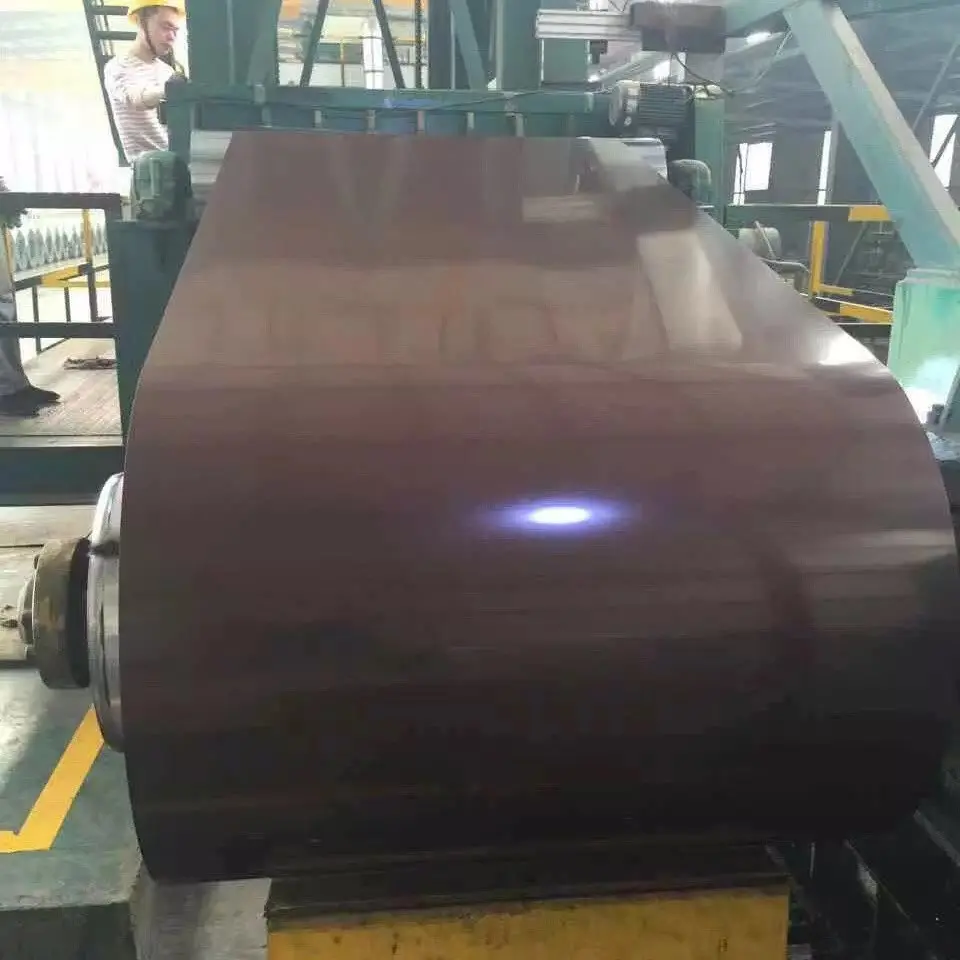

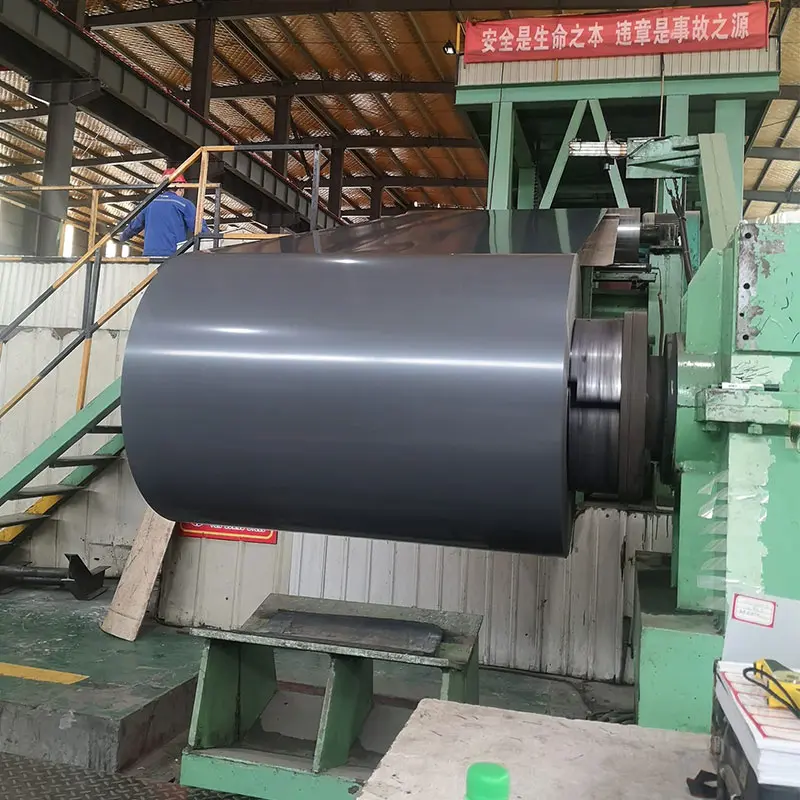

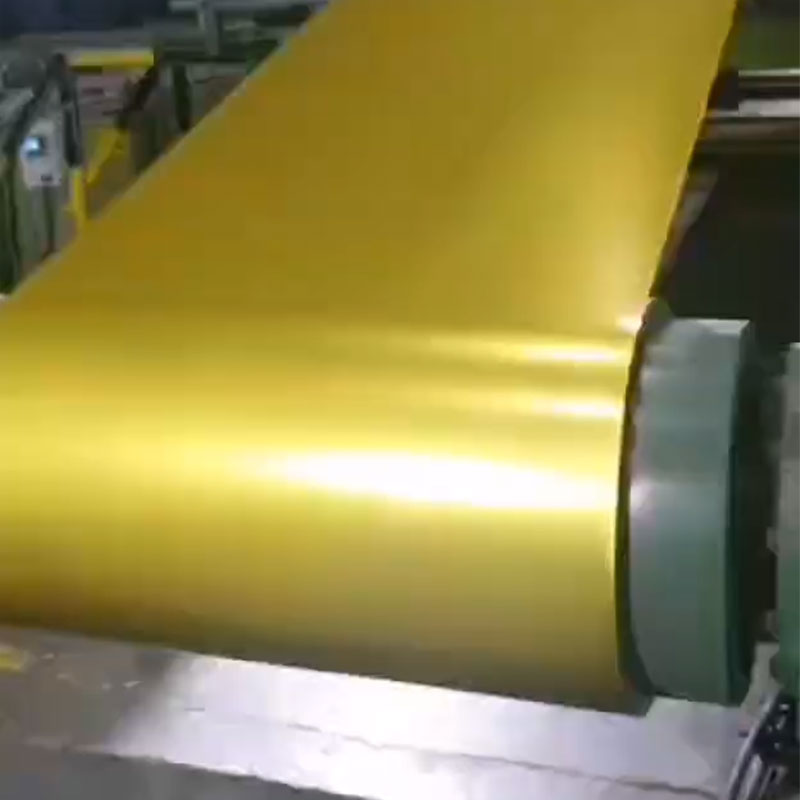

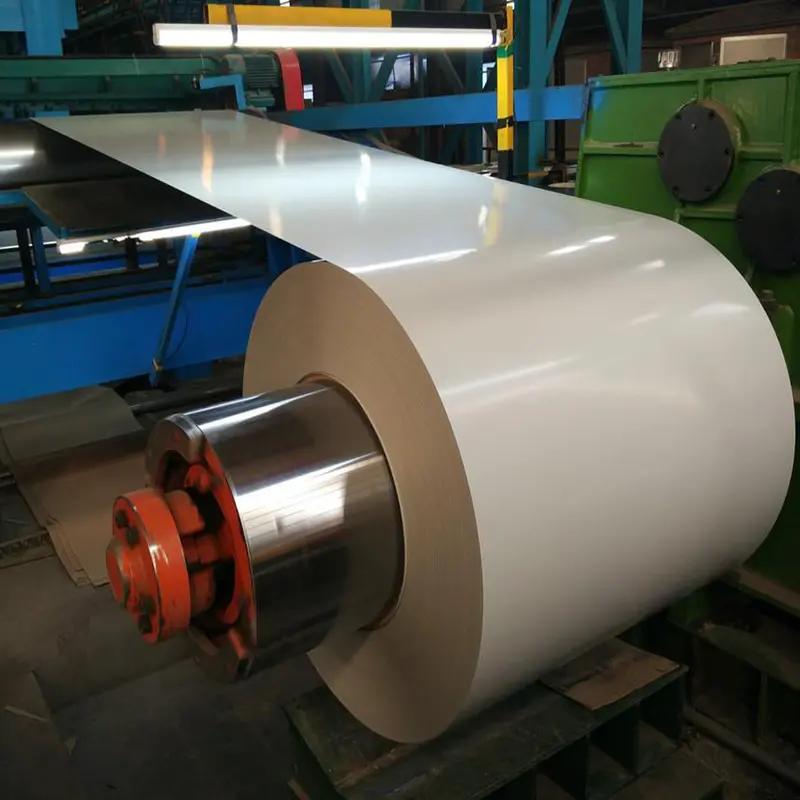

Product Display

Product Specification and Size

PPGI / PPGL / PPGF

Product Type	Pre-Painted Hot-Dip Galvanized Steel Coil (PPGI)	Pre-Painted Hop-Dip 5% Al-Zn Coated Steel Coil (PPGF)	Pre-Painted Hop-Dip 55% Al-Zn Coated Steel Coil (PPGL)	Pre-Painted Embossed Steel Coil
Coating Types	1. Polyester (PE) 2. Silicone Modified Polyester (SMP) 3. Acrylic 4. Polyvinylidene Difluoride (PVDF)			PVC Plastisol
Specifications	CNS 10804 (2013) CNS 15298 (2013) CNS 15299 (2013) JIS G3312 (2013) CGCC CGCD1~3 CGC340 CGC400 CGC440 CGC490 CGC570 JIS G3318 (2013) CZACC CZACH CZACD1 CZAC340 CZAC400 CZAC440 CZAC490 CZAC570 JIS G3322 (2013) CGLCC CGLCD CGLC400 CGLC440 CGLC490 CGLC570 ASTM A755M (2016) AS 2728 (2013) EN 10169+A1 (2010)			JIS K6744 (2007) SG SA ASTM A755M (2016) EN 10169+A1 (2010)
Coating Types	Primer: PU or Epoxy 5μm Topcoat: 15-20μm Back Primer: PU or Epoxy 2μm Back Coat: PE or Epoxy 5-12μm			Primer: Epoxy Topcoat: PVC PLASTISOL 150- 250μm Back Primer: PU or Epoxy 2μm Back Coat: PVC PLASTISOL 100 - 250μm or Epoxy 7μm

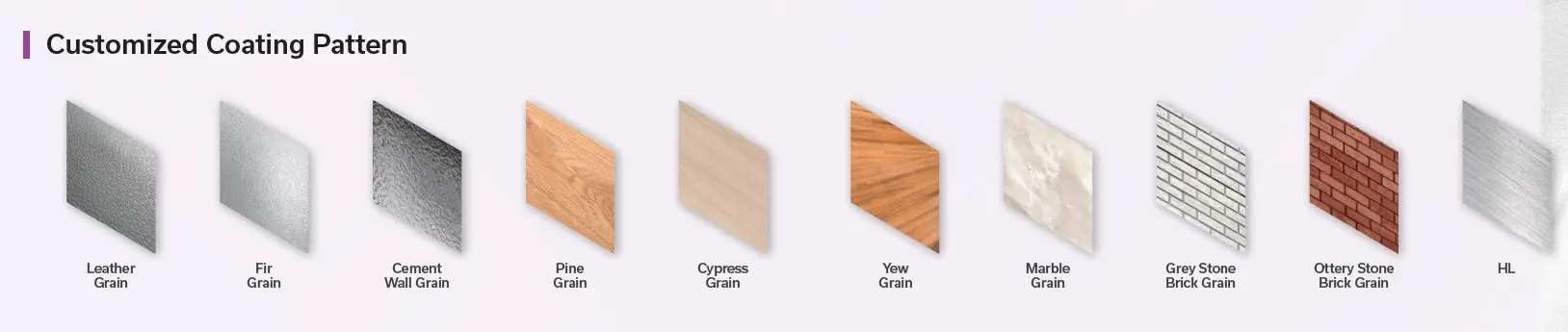

Surface Treatment	Protective film can be applied Metal Embossed Cedar wood Stucco Leather			PVC Embossed Leather Lichee
Remarks	1. The ASTM standards presented here adopt the equivalent metric system. (The imperial system deletes the “M" after their specification number, such as A755 and A792.) 2. Coating thickness is for reference only.

Available Size

Name	Thickness	Width
Pre-painted Hot-dip Galvanized Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 5% Al-Zn Coated Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 55% Al-Zn Coated Steel Coil	0.2~1.38mm	600~1250mm
