High - grade carbon steel angle, tech - made
specification
|
Product Name |
Stainless steel I-beam |
|
Material |
A36, St37, S235J0, S235J2, St52, S355JR, Q195, Q215, Q235B, Q345B, S235JR, S355JR, S355, SS440, SM400A, SM400B, A572 GR50/GR60, SS540 |
|
Scope of Production |
H100*100-H400*400, H150*75 -H900*300 |
|
Length |
6m, 9m, 12m or acording to customer requirements |
|
Technology |
Hot Rolled, Welded |
|
Standard |
ASTM, AISI, JIS, GB, DIN, EN |
|
Surface |
Galvanized, Painted or according to your requirements |
|
Supply Capacity |
2000 tons/Day |
|
Business Type |
Manufacturer |
|
Certificate |
ISO, SGS, BV |
|
Application |
Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc. |
|
Loading Port |
Any port in China |
|
Packaging |
Standard export packing or as your request |
|
Payment Method |
Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal. |

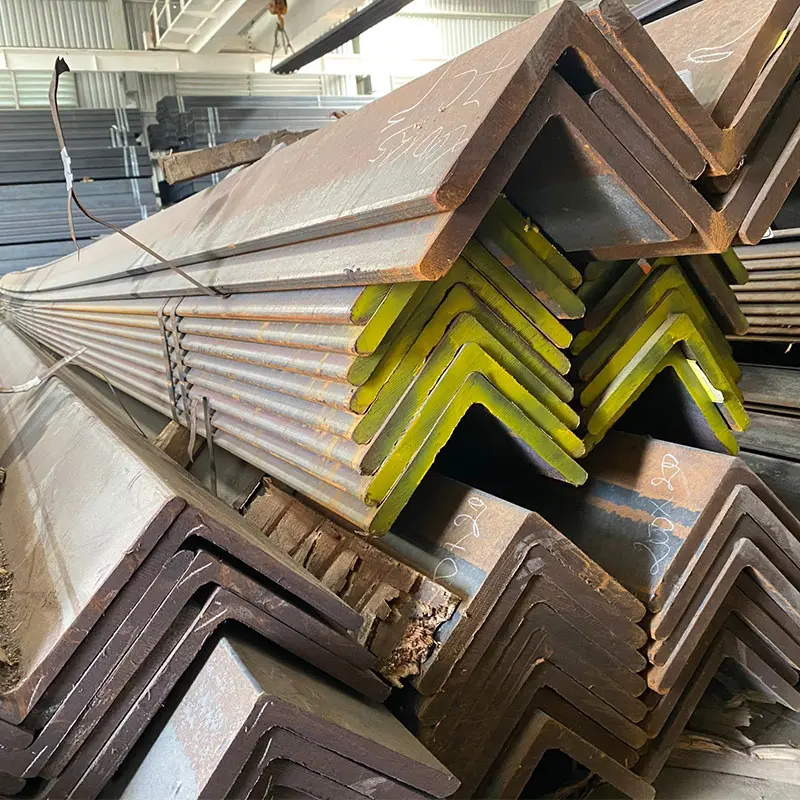

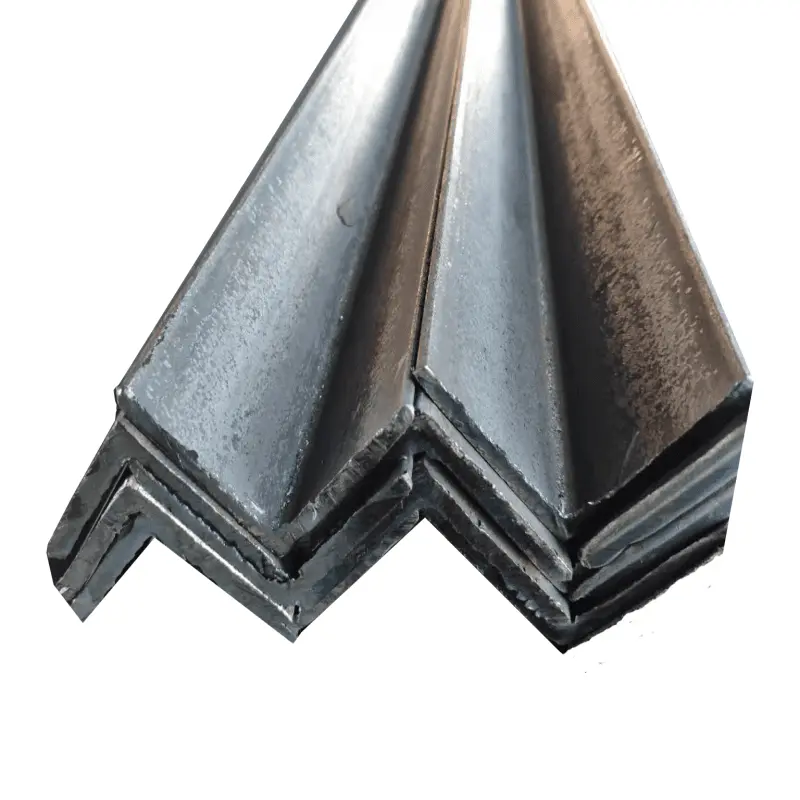

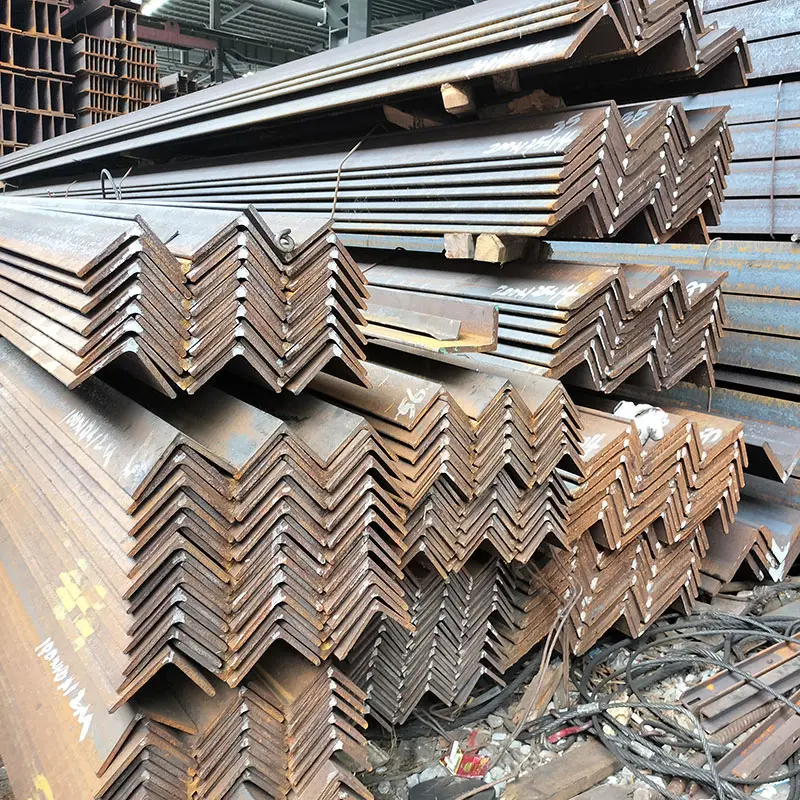

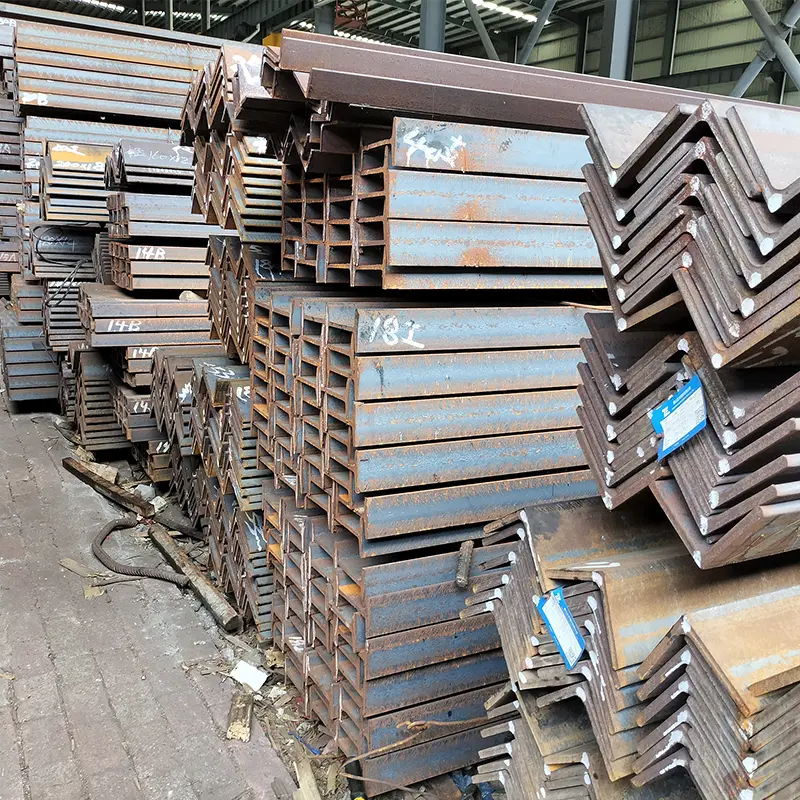

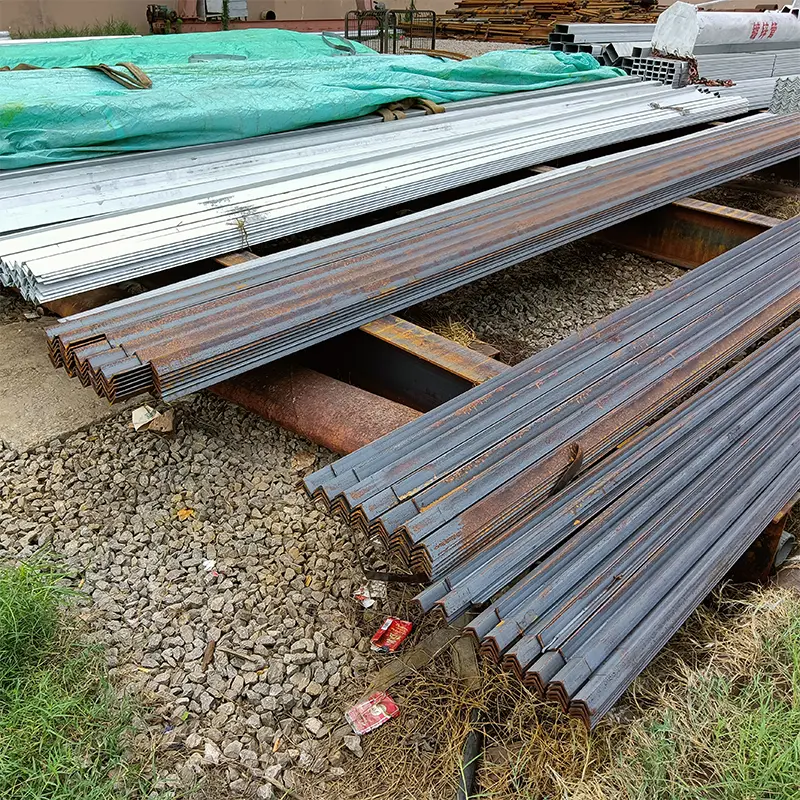

Product Display
Angle Steel specifications
|
Designation |
Leg Width (b, mm) |
Leg Thickness (d, mm) |
Inner Arc Radius (r, mm) |
Inner Arc Radius at Leg End (r₁, mm) |
Cross-sectional Area (A, cm²) |
Theoretical Weight (W, kg/m) |
|
∠20×3 |
20 |
3 |
3.5 |
1.2 |
1.132 |
0.889 |
|
∠20×4 |
20 |
4 |
3.5 |
1.2 |
1.459 |
1.145 |
|
∠25×3 |
25 |
3 |
3.5 |
1.2 |
1.432 |
1.124 |
|
∠25×4 |
25 |
4 |
3.5 |
1.2 |
1.859 |
1.459 |
|
∠30×3 |
30 |
3 |
4.5 |
1.4 |
1.749 |
1.373 |
|
∠30×4 |
30 |
4 |
4.5 |
1.4 |
2.276 |
1.786 |
|
∠32×3 |
32 |
3 |
4.5 |
1.4 |
1.908 |
1.492 |
|
∠32×4 |
32 |
4 |
4.5 |
1.4 |
2.460 |
1.936 |
|
∠36×3 |
36 |
3 |
4.5 |
1.4 |
2.109 |
1.656 |
|
∠36×4 |
36 |
4 |
4.5 |
1.4 |
2.756 |
2.163 |
|
∠40×3 |
40 |
3 |
5 |
1.6 |
2.359 |
1.852 |
|
∠40×4 |
40 |
4 |
5 |
1.6 |
3.086 |
2.422 |
|
∠45×3 |
45 |
3 |
5 |
1.6 |
2.659 |
2.088 |
|
∠45×4 |
45 |
4 |
5 |
1.6 |
3.486 |
2.736 |
|
∠50×3 |
50 |
3 |
5.5 |
1.8 |
2.971 |
2.332 |
|
∠50×4 |
50 |
4 |
5.5 |
1.8 |
3.897 |
3.059 |
|
∠56×3 |
56 |
3 |
6 |
2 |
3.343 |
2.624 |
|
∠56×4 |
56 |
4 |
6 |
2 |
4.390 |
3.446 |
|
∠60×3 |
60 |
3 |
6.5 |
2 |
3.724 |
2.924 |
|
∠60×4 |
60 |
4 |
6.5 |
2 |
4.967 |
3.907 |
|
∠63×3 |
63 |
3 |
7 |
2.1 |
3.907 |
3.055 |
|
∠63×4 |
63 |
4 |
7 |
2.1 |
5.218 |
4.099 |
|
∠63×5 |
63 |
5 |
7 |
2.1 |
6.511 |
5.118 |
|
∠63×6 |
63 |
6 |
7 |
2.1 |
7.753 |
6.091 |
|
∠63×8 |
63 |
8 |
7 |
2.1 |
10.160 |
7.976 |
|
∠63×10 |
63 |
10 |
7 |
2.1 |
12.507 |
9.788 |
|
∠70×4 |
70 |
4 |
8 |
2 |
5.570 |
4.372 |
|
∠70×5 |
70 |
5 |
8 |
2 |
6.875 |
5.397 |
|
∠70×6 |
70 |
6 |
8 |
2 |
8.160 |
6.406 |
|
∠70×7 |
70 |
7 |
8 |
2 |
9.424 |
7.402 |
|
∠70×8 |
70 |
8 |
8 |
2 |
10.667 |
8.373 |
|
∠75×5 |
75 |
5 |
9 |
2.2 |
7.412 |
5.818 |
|
∠75×6 |
75 |
6 |
9 |
2.2 |
8.897 |
6.994 |
|
∠75×7 |
75 |
7 |
9 |
2.2 |
10.362 |
8.156 |
|
∠75×8 |
75 |
8 |
9 |
2.2 |
11.809 |
9.298 |
|
∠75×10 |
75 |
10 |
9 |
2.2 |
14.683 |
11.503 |
|
∠80×5 |
80 |
5 |
9 |
2.2 |
7.912 |
6.211 |
|
∠80×6 |
80 |
6 |
9 |
2.2 |
9.467 |
7.431 |
|
∠80×7 |
80 |
7 |
9 |
2.2 |
10.998 |
8.632 |
|
∠80×8 |
80 |
8 |
9 |
2.2 |
12.521 |
9.828 |
|
∠80×10 |
80 |
10 |
9 |
2.2 |
15.504 |
12.142 |
|
∠90×6 |
90 |
6 |
10 |
2.3 |
10.637 |
8.350 |
|
∠90×7 |
90 |
7 |
10 |
2.3 |
12.301 |
9.656 |
|
∠90×8 |
90 |
8 |
10 |
2.3 |
13.944 |
10.946 |
|
∠90×10 |
90 |
10 |
10 |
2.3 |
17.167 |
13.476 |
|
∠90×12 |
90 |
12 |
10 |
2.3 |
20.306 |
15.940 |
|
∠100×6 |
100 |
6 |
12 |
2.5 |
11.932 |
9.366 |
|
∠100×7 |
100 |
7 |
12 |
2.5 |
13.796 |
10.830 |
|
∠100×8 |
100 |
8 |
12 |
2.5 |
15.638 |
12.276 |
|
∠100×10 |
100 |
10 |
12 |
2.5 |
19.261 |
15.120 |
|
∠100×12 |
100 |
12 |
12 |
2.5 |
22.800 |
17.898 |
|
∠100×14 |
100 |
14 |
12 |
2.5 |
26.256 |
20.611 |
|
∠100×16 |
100 |
16 |
12 |
2.5 |
29.627 |
23.257 |
|
∠110×7 |
110 |
7 |
12 |
2.5 |
15.196 |
11.928 |
|
∠110×8 |
110 |
8 |
12 |
2.5 |
17.238 |
13.532 |
|
∠110×10 |
110 |
10 |
12 |
2.5 |
21.261 |
16.690 |
|
∠110×12 |
110 |
12 |
12 |
2.5 |
25.200 |
19.818 |
|
∠110×14 |
110 |
14 |
12 |
2.5 |
29.056 |
22.891 |
|
∠125×8 |
125 |
8 |
14 |
2.7 |
19.750 |
15.504 |
|
∠125×10 |
125 |
10 |
14 |
2.7 |
24.373 |
19.133 |
|
∠125×12 |
125 |
12 |
14 |
2.7 |
28.912 |
22.696 |
|
∠125×14 |
125 |
14 |
14 |
2.7 |
33.367 |
26.193 |
|
∠130×10 |
130 |
10 |
14 |
2.7 |
25.300 |
19.855 |
|
∠130×12 |
130 |
12 |
14 |
2.7 |
29.956 |
23.512 |
|
∠130×14 |
130 |
14 |
14 |
2.7 |
34.537 |
27.103 |
|
∠140×10 |
140 |
10 |
14 |
2.7 |
27.373 |
21.582 |
|
∠140×12 |
140 |
12 |
14 |
2.7 |
32.512 |
25.622 |
|
∠140×14 |
140 |
14 |
14 |
2.7 |
37.587 |
29.590 |
|
∠150×10 |
150 |
10 |
16 |
3 |
30.373 |
23.827 |
|
∠150×12 |
150 |
12 |
16 |
3 |
36.012 |
28.359 |
|
∠150×14 |
150 |
14 |
16 |
3 |
41.587 |
32.829 |
|
∠150×16 |
150 |
16 |
16 |
3 |
47.084 |
37.238 |
|
∠160×10 |
160 |
10 |
16 |
3 |
33.373 |
26.059 |
|
∠160×12 |
160 |
12 |
16 |
3 |
39.612 |
31.079 |
|
∠160×14 |
160 |
14 |
16 |
3 |
45.887 |
36.038 |
|
∠160×16 |
160 |
16 |
16 |
3 |
52.084 |
40.937 |
|
∠180×12 |
180 |
12 |
18 |
3.5 |
46.912 |
36.748 |
|
∠180×14 |
180 |
14 |
18 |
3.5 |
53.587 |
42.070 |
|
∠180×16 |
180 |
16 |
18 |
3.5 |
60.184 |
47.322 |
|
∠200×12 |
200 |
12 |
20 |
4 |
54.012 |
42.444 |
|
∠200×14 |
200 |
14 |
20 |
4 |
61.587 |
48.388 |
|
∠200×16 |
200 |
16 |
20 |
4 |
69.084 |
54.266 |
